CPS-B1 CPS-B1

99.828.32 1.4/07/2199.828.32 1.4/07/21

6/24 7/24

Mount control panel sheltered and easily accessible for maintenance in proximity of drive.

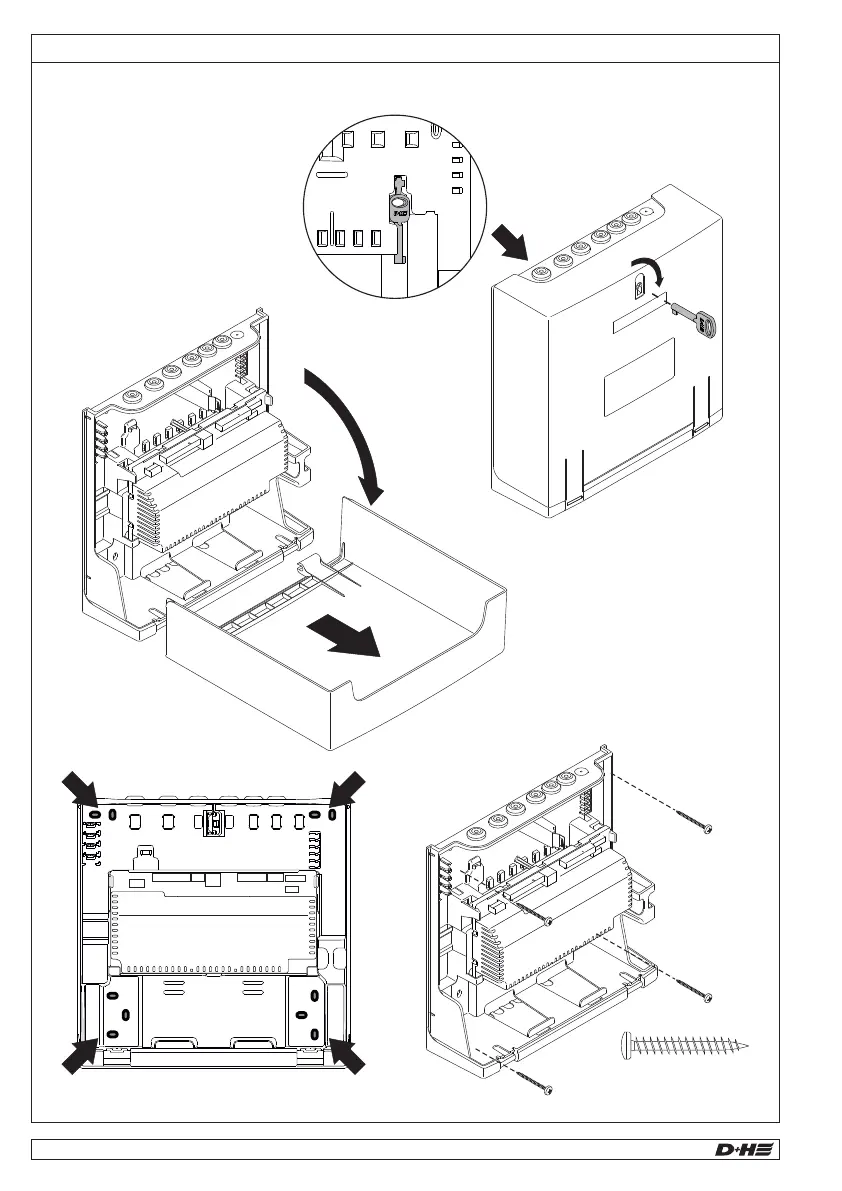

Mounting of SHEV control panel

Ø max. 5 mm

(not included)

1 2 3 4 5 6 7 8

1 2 3 4 5

Jumper clamp holder

WAGO clamp 221

(not included)

Jumper clamp holder

WAGO clamp 243

(not included)

Overview

4x 5x

35 mm top hat rail

for extension modules

up to 29 mm width

Document storage

Screwless mounting

of the motherboard

English English
