Safety notes
Safety extra low voltage 24 V DC!
Do not connect directly to the mains supply!
- Connection has to be carried out only by an
authorized electrical specialist
- Danger of violent pressure in handaccessible area
- Keep away people from the operating area of the
drive
- Keep away children from the control
- Observe pressure load diagram of the chain!
- Use only in dry rooms
- Only for inside mounting.
Use rain detector with danger of rain
(e.g. at domelights or roof windows)
- This product may not be operated without the
covering stoppers, which are delivered with
bracket sets
- Just use unchanged original D+H parts
- Observe mounting instructions of bracket set!
Observe enclosed r ed safety slip!
Performance features
- ACB (Advanced Communication Bus) bus interface
with ModBus protocol for the connection to
compatible D+H control panels or direct integration
into building management systems, for example
- Microprocessor controlled synchro electronics
BSY + for a precise synchronous run of up to
8 drives
- Individually programmable (via software SCS)
- SHEV-high speed function (fast-running
feature in OPEN-direction)
- Protection system for the main closing edge
- Locking relief after closing
Drive unit with 2,5 m silicone cable. Dependent on
the type of window, different bracket sets are
available separately.
Extent of supply
Intended use
- Chain drive for electric opening and closing of
windows and flaps in the facade and roof area
- Operating voltage 24 V DC stabilized
- Useable for smoke ventilation as well as daily
natural ventilation
- Only for inside mounting
WARNING
Read all safety warnings, instructions, illustrations
and specifications provided with this product.
Failure to follow all instructions listed below may
result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.
Observe maximum pressure load of the chain!
Maximum pressure load of the chain is not
automatically identical with maximum pressure force
of the drive!

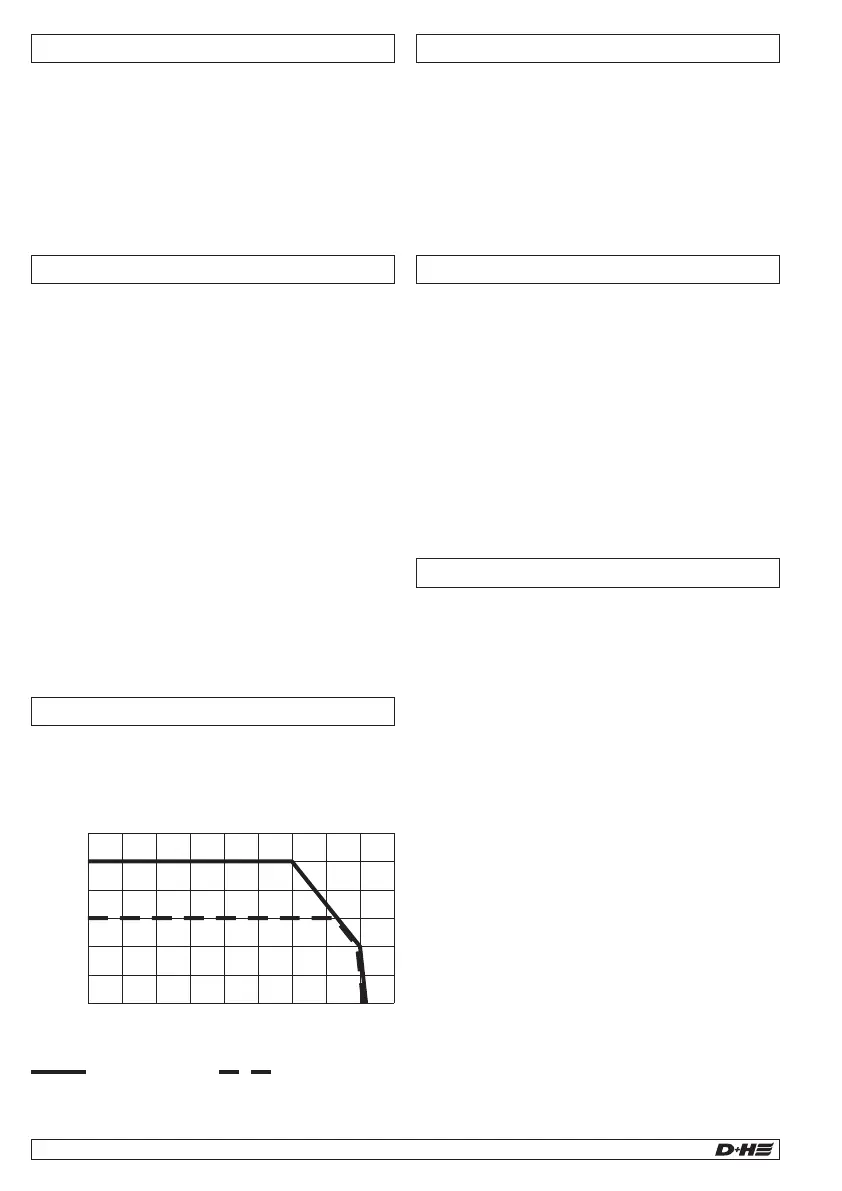

Pressure load diagram
100
200
300
400
500
600
700
800
500
400
300
200
100
0
max. Load (N)
Stroke / (mm)
KA-0500-1-ACB
KA-0300-1-ACB
Technical Data
* Programmable with software SCS ** + approx. 20 % switch-off reserve (temporary)
*** Not compatible with PS-VE1, PS-VE4, GVL 8304-K, as well as RZN-E and GVL-E without stabilisation
C3*
Nominal stroke -100 mm
250 N
O1*
C1* C2*
O2* O3*
23 mm
150 N
77 mm
150 N
23 mm
300 N
15 mm
300 N
Nominal stroke -38 mm
300 N
Running speed: ventilation (SHEV high-speed function)*
7mm/s (12,2 mm/s, tensile load (1/2
nominal load) 16,1 mm/s)
7mm/s (12,2 mm/s, tensile load (1/2
nominal load) 16,1 mm/s)
7mm/s (12,2 mm/s, tensile load (1/2
nominal load) 16,1 mm/s)
5 mm/s (5 mm/s)
7mm/s (13,3 mm/s, tensile load (1/2
nominal load) 17,2 mm/s)
7mm/s (13,3 mm/s, tensile load (1/2
nominal load) 17,2 mm/s)
7mm/s (13,3 mm/s, tensile load (1/2
nominal load) 17,2 mm/s)
5 mm/s (5 mm/s)
Nominal locking force
Service life
Duty cycle
Housing
Ingress protection
Temp. range
Fire stability
Emission sound pressure level
Additional functions*
approx. 2600 N (without bracket)
>20.000 double strokes
30 % (With cycle time 10 minutes)
Aluminium powdercoated (~ RAL 9006)
IP 32 (With covering stoppers delivered with bracket sets), optionally IP 42
-15 ... +75 °C
30 min / 300 °C
LpA ≤ 70 dB(A)
Closing edge protection activated (3 stroke repeatings);
Locking relief activated
Opening and Closing Ranges
Main closing edge
Beside closing edge
Beside
closing edge
Closing edge protection
In the "CLOSE" direction the drive has an active
protection for the main closing edge. If there is an
overload in the closing ranges C3 and C2, the drive
runs "OPEN" for 10 seconds, then "CLOSE" again. If
closing is not possible after three attempts, the drive
remains in this position.
In addition, the drive is equipped with passive
protection. The closing speed in closing range C2
and C1 is reduced to 5 mm/s.
Significantly greater forces can be
exerted at the secondary closing
edges. Danger of crushing hands and
fingers!
