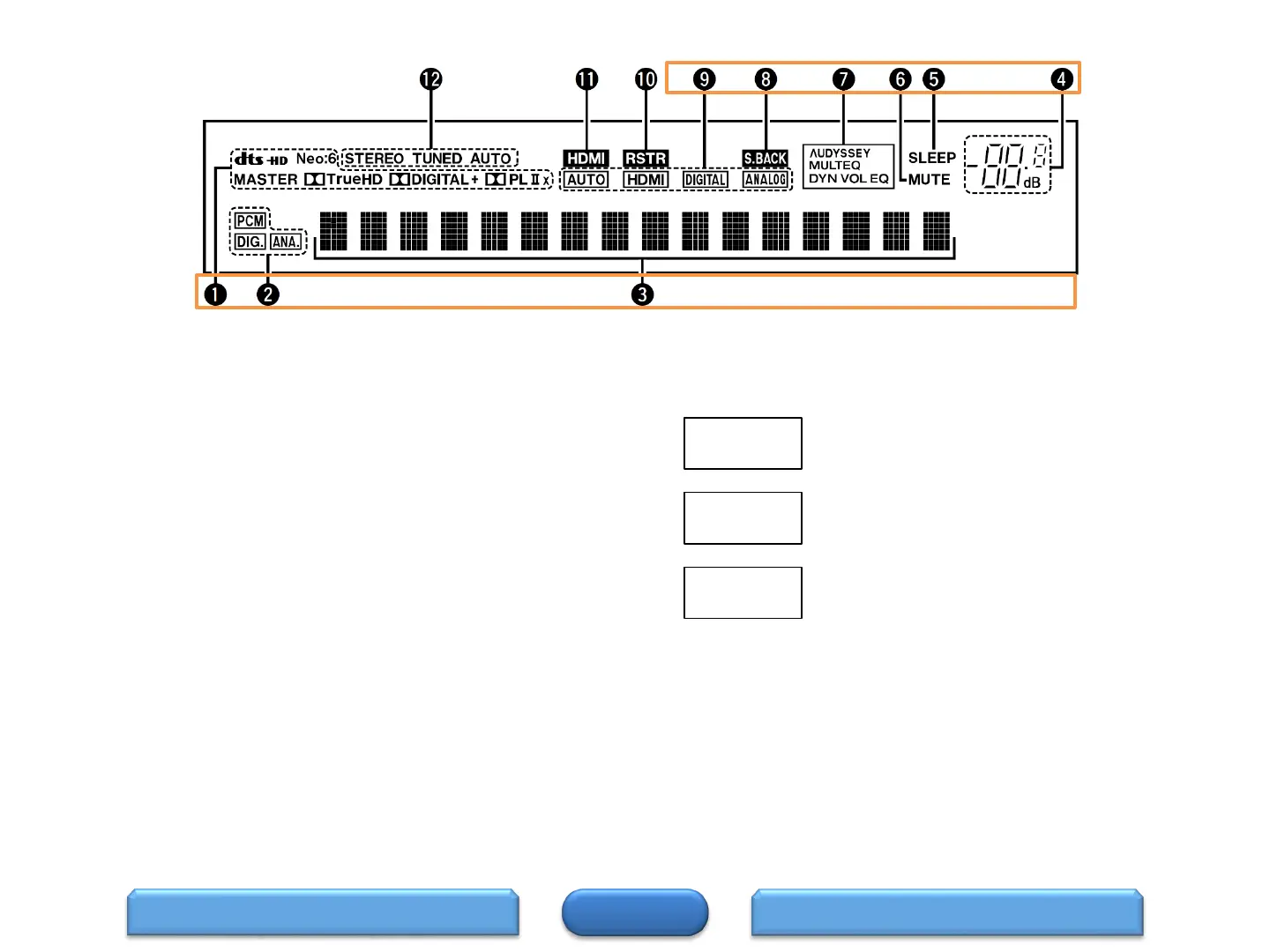

Display (1 of 2)
 Decoder indicators
These light when the respective decoders are operating.
 Input signal indicators
 Information display
The input source name, surround mode, setting values and other
information are displayed here.
 Master volume indicator
 Sleep timer indicator
This lights when the sleep mode is selected
 MUTE indicator
This lights when the mute mode is selected
 Audyssey® indicators
Lights up as follows, depending on the setting of “MultEQ® XT”,
When “MultEQ® XT”, “Dynamic EQ®” and
“Dynamic Volume®” are “ON”.
When “MultEQ® XT” and “Dynamic EQ®” are “ON”
and “Dynamic Volume®” is “OFF”.
When “MultEQ® XT” is “ON” and “Dynamic EQ®”
and “Dynamic Volume®” are “OFF”.
 Surround back indicator
This lights when audio signals are being output from the surround
back speakers (vpage 86).
 Input mode indicators
Set the audio input modes for the different input sources
AUDYSSEY
MULTEQ XT
DYN VOL
AUDYSSEY
MULTEQ XT
DYN EQ
AUDYSSEY
MULTEQ XT
