8

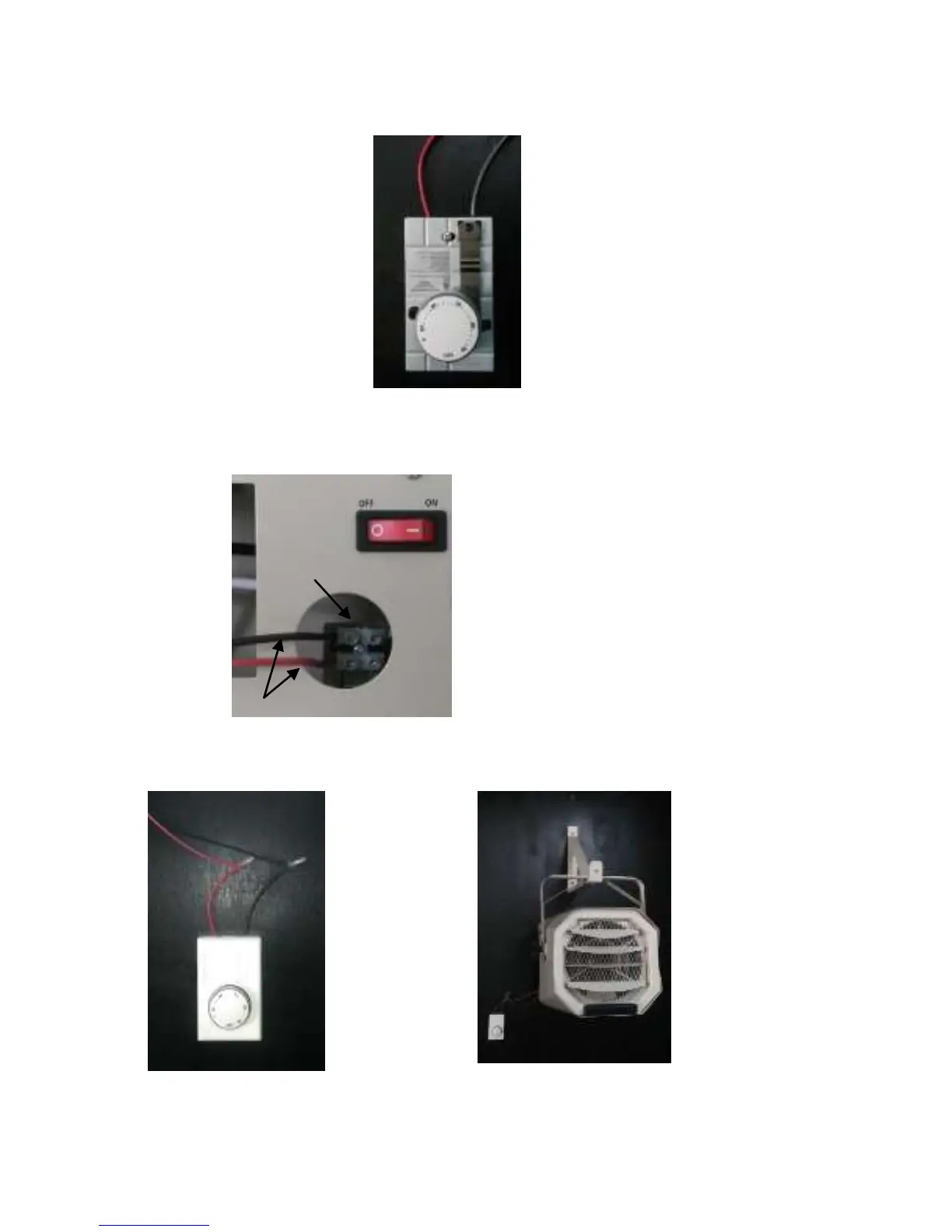

17 How to install a wall thermostat (Not included) :
A. Install the thermostat to the wall :
B. Press the rocker switch to WALL THERMOSTAT, insert two
16AWG wires to Terminal A inside the heater. Make sure to
tighten the screws in Terminal A.
C. Connect the other side of the two 16AWG wires to the wall
thermostat as indicated below:
18. Replace the wiring compartment/connection cover and lock in
place with the screw.
