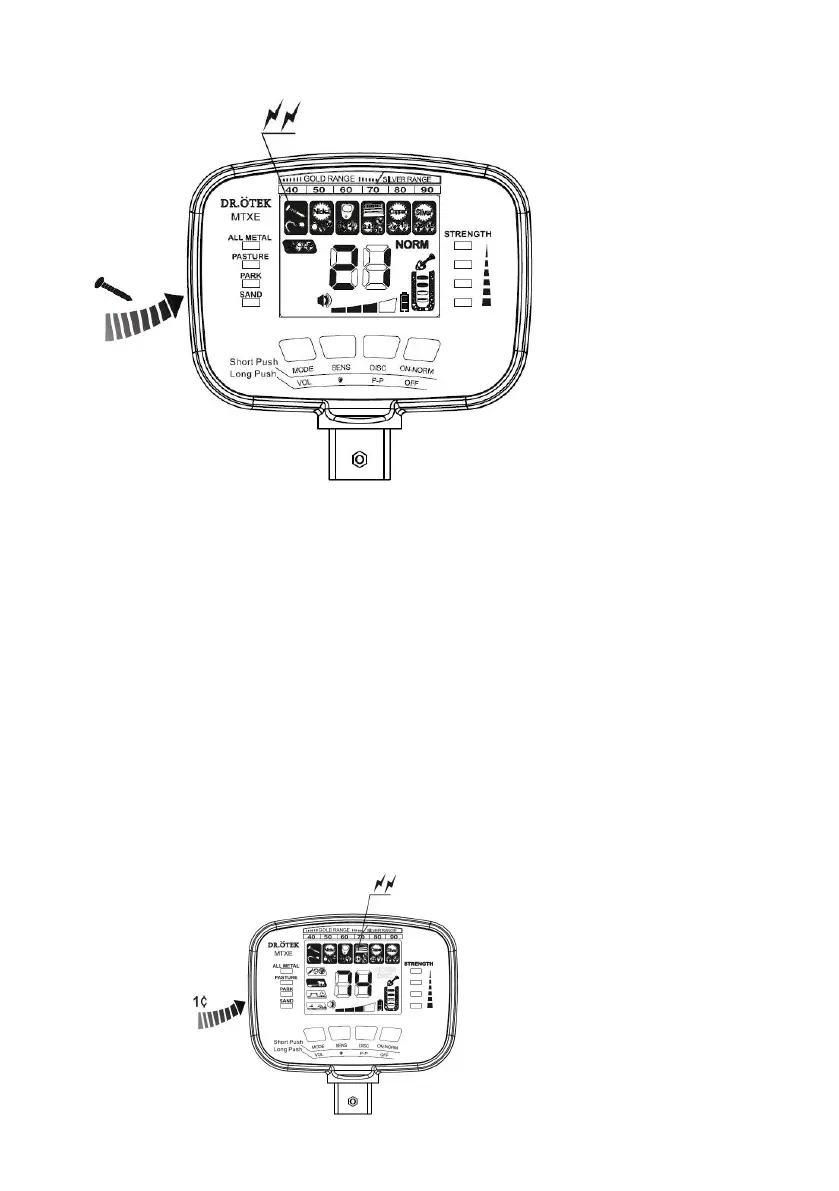

graph 10
4. PASTURE mode test
a)Press MODE again for the PASTURE cursor and LED to light on.
b)Six samples were successively crossed at approximately 7 –
10cm(2.7-3.9’’) above the search coil.
c)Bass as the nails cross. Other metals are pitched when across.
d)As the metal sample crosses, the corresponding target cursor flashes,
and the digital cursor displays the corresponding number.(See graph 11,
with 1 ￠ silver currency, for example)
graph 11
