SELF-FEEDING CHIPPER
Grease Fittings
Your SELF-FEEDING CHIPPER was greased at the Factory. The operator needs
to periodically lubricate the two Bearings of the Chipper Assembly.
Tools and Supplies needed:
 Two 1/2" Wrenches
 Flexible hose grease gun
 Lithium grease
 Clean cloth
 1/8" Allen Wrench
 Loctite® 243

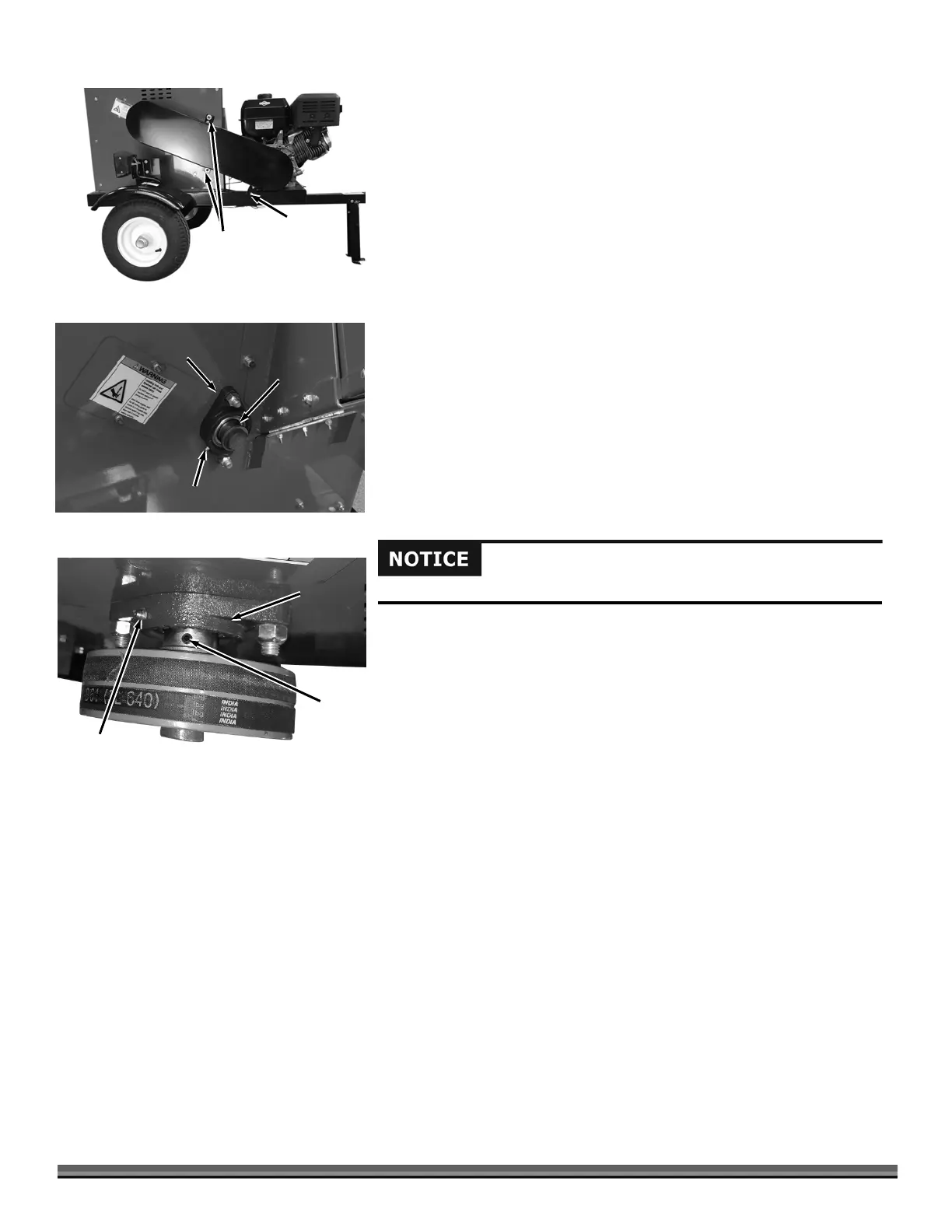

1. Remove the Bolt, Washer and Locknut that attaches the lower area of
the Guard to the Frame using two 1/2" Wrenches (Figure 38).
2. Remove the two Locknuts and Washers at the center of the Guard
using a 1/2" Wrench.
3. Remove the Guard.
4. Wipe all debris from the grease fitting on the Hopper side (Figure 39)
and the Belt side (Figure 40) with a clean cloth.
5. Apply no more than three pumps of quality general-purpose lithium
grease with a hand-pumped grease gun to each Bearing Grease Fitting.
6. Check the Set Screws for tightness. If they are not tight, remove them,
apply Loctite® to the threads, then reinstall and tighten the Set Screws.
7. Replace the Belt Guard when finished.
Figure 40
Bearing
Grease Fitting
Set Screw
Figure 39
Set Screw
Grease Fitting
Bearing
Figure 38
Bolt,
Washer
and
Locknut
Locknut
and
Washer
Over lubrication can damage the bearings.
