SELF-FEEDING CHIPPER

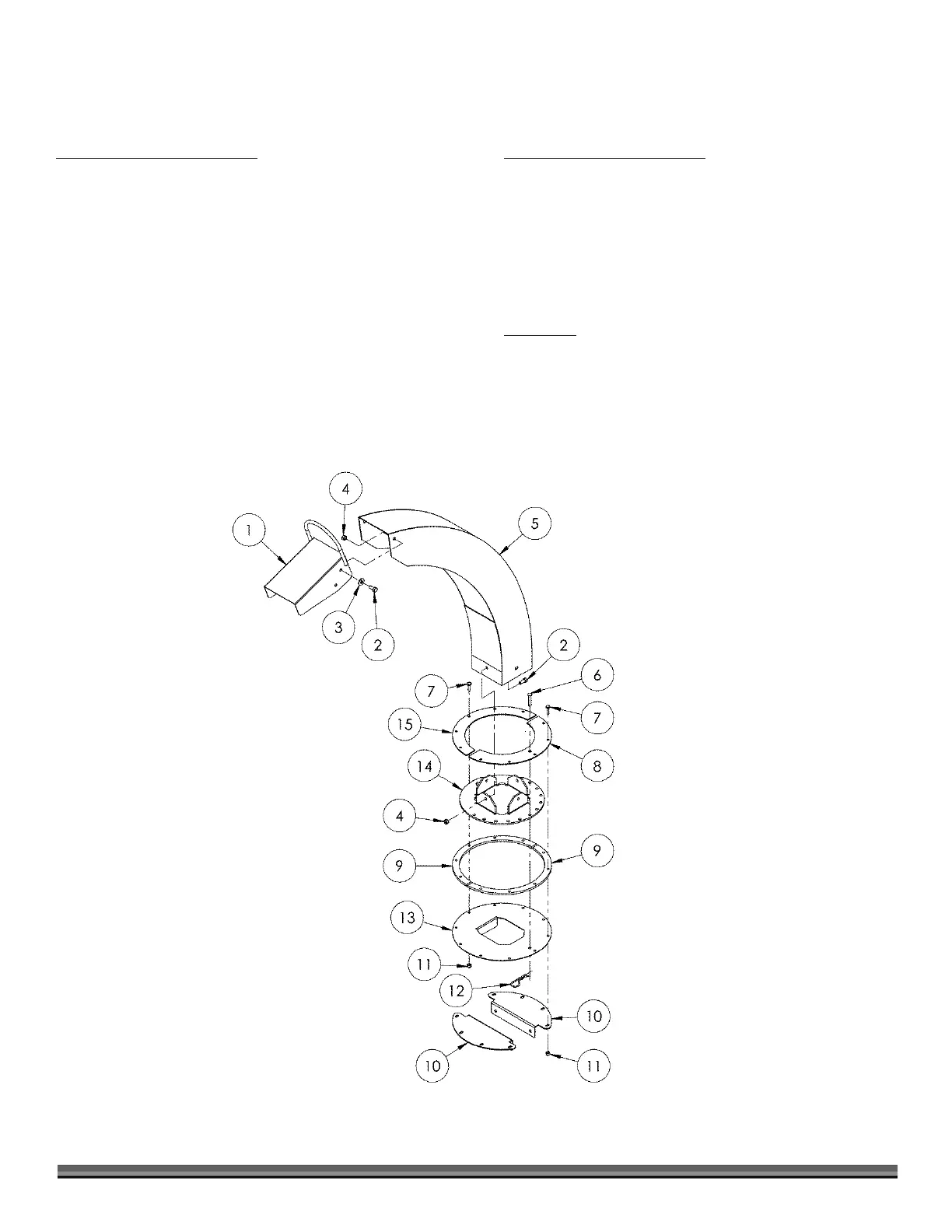

Parts List – High Discharge Accessory
NOTE: Part numbers listed are available through DR Power Equipment.
Ref# Part# Description
01 24266 Deflector Weldment
02 16679 Bolt, HCS, 5/16-18 x 3/4
03 14515 Washer, Flat, 5/16
04 14313 Nut, Nylon Lock, 5/16-18
05 24265 High Discharge Weldment
06 24267 Pin, Locking
07 24161 Bolt, HCS, 1/4-20 X 1, Gr5
08 24268 Swivel Top, Pin Side
09 24270 Spacer, Swivel
10 37483 Flange, Side, HD (16.5)
37484 Flange, Side, HD (21.0)
Ref# Part# Description
11 14340 Nut, Nylon Lock, 1/4-20
12 18258 Hitch Clip
13 24263 Plate, Bottom (16.5)
375031 Plate, Bottom (21.0)
14 24264 Swivel Weldment
15 24269 Swivel Top
Not Shown
24183 Label, Warning, High Speed Discharge
24181 Label, Danger, Rotating Knife & Flywheel
