10 DR
®
PILOT™ LEAF and LAWN VACUUM
1
Figure 5
2

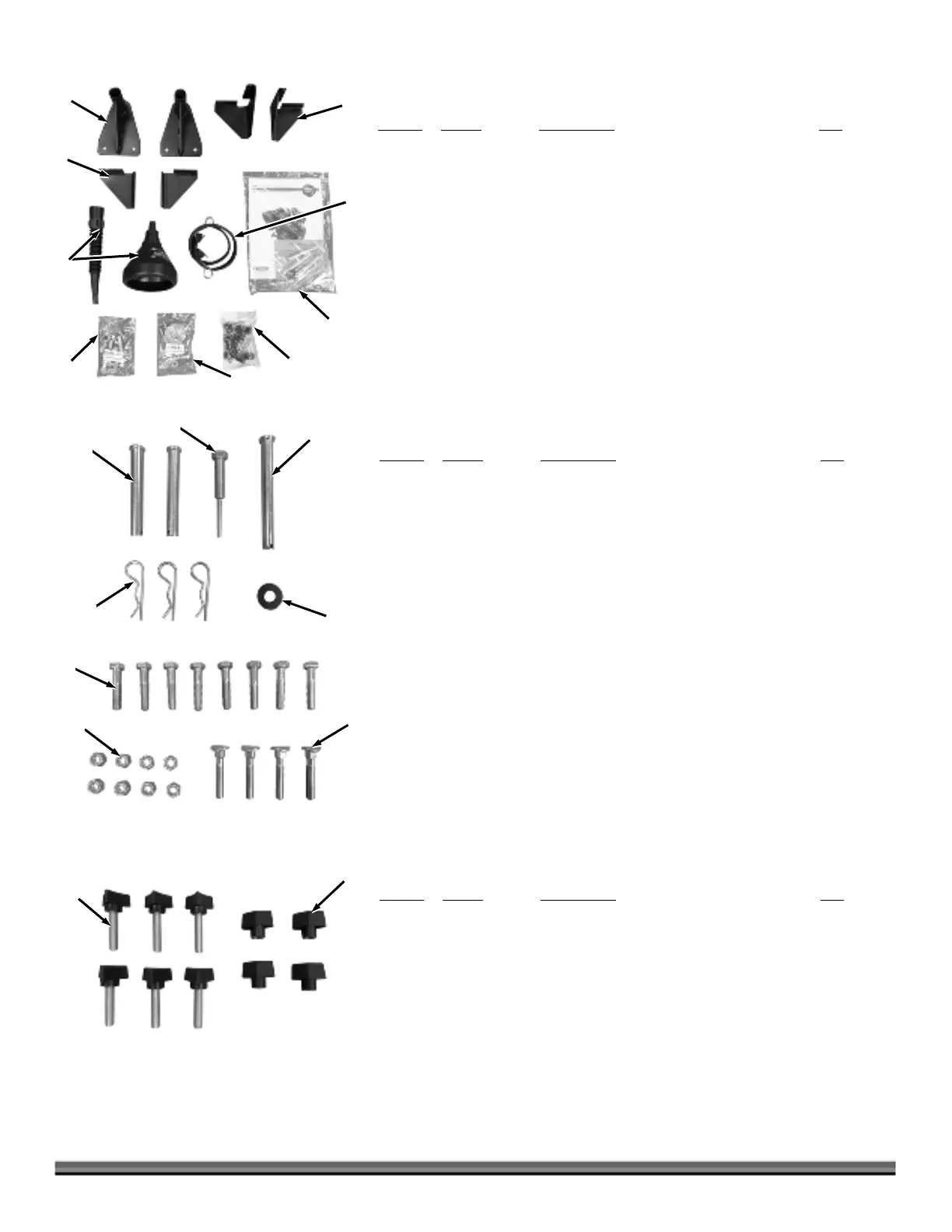

Parts Box (Figure 3):
Item #
Part # Description Qty
1 ............. 33802 .............. Axle Bracket .................................................... 2
2 ............. 38845 .............. Bracket, Tube, Front, LH ................................ 1
38846 .............. Bracket, Tube, Front, RH ............................... 1
3 ............. 34247 .............. Strap, Rubber ................................................. 1
35042 .............. Hook, Strap .................................................... 2
4 ............. 38860 .............. Knob Set ......................................................... 1
5 ............. 35021 .............. Hardware Set, Wheels .................................... 1
6 ............. 38867 .............. Hardware Set, Power Unit ............................. 1
7 ............. 37036 .............. Funnel, Oil Flexible (snap together) .............. 1
8 ............. 38847 .............. Bracket, Tube, Rear, LH ................................. 1
38848 .............. Bracket, Tube, Rear, RH ................................. 1
Hardware in Product Package (Figure 4):
Item #
Part # Description Qty
1 ............. 21154 .............. Pin, Clevis, 1/2" X 3.5"L, ZP ........................... 2
2 ............. 35037 .............. Bolt, Hex, 7/16-20, Impeller Tool ................... 1
3 ............. 18737 .............. Pin, Clevis, 1/2 x 4.5"L, ZP ............................. 1
4 ............. 18967 .............. Washer, Rubber, 1/2" ID, 1" OD .................... 1
5 ............. 35027 .............. Bolt, C-Head, 5/16-18 X 1.75", ZP ................. 4
6 ............. 11076 .............. Nut, Nylon Lock, 5/16-18 ............................... 8
7 ............. 13443 .............. Bolt, HCS, 5/16-18 X 1.5", GR5, ZP ............... 8
8 ............. 16003 .............. Clip, Pin Hitch, 1/2"-9/16" ............................. 3
Knob Set (Figure 5):
Item #
Part # Description Qty
1 ............. 38861 .............. Knob, 3 Prong, 5/16-18 Stud .......................... 6
2 ............. 35030 .............. Knob, 5/16-18 W/Lock, 1.16 DIA. .................. 4
Figure 4
1
2
4
8
3
7
6
5
Figure 3
1
8
Product
Package
7
5
2
3
4
To Next Page
