Specifications
Engine
DR Power Equipment R225
Ft-lbs Torque
9.59
Starting
Manual
RPM
3800
Impeller
Steel, 5 Blades w/Serrated Teeth
Weight
13.2 Lbs
Mount
Direct Mount on Tapered Engine Shaft
Vacuum
2038 CFM
Suction
66 MPH
Hose
8" ID x .035" Wall PVC, 72" L
Collector
Over-center Tilt Design w/ Flatbed Base
Volume
27 Cuft, 200 Gallons
Capacity
400 Lbs
Fabric Enclosure
1800 Denier Polyester, Solution Dyed, Bonded PVC Backing
Dump Tilt
55°
Base
Flatbed, Steel
Frame
Welded Steel, 2 Piece Modular Design
Impeller Housing
Steel Scroll (.12" Thick), Sideplate (.12" Thick)
Wheels
Pneumatic 5.30/4.50-8 4 Ply w/ Tube
Quantity
2 (1 Per Side)
Tire Size
14" Diameter x 4.5" Wide
Jack
Optional Accessory
Lawn Mower
12 HP Min Flat Terrain otherwise 14 HP
Lawn Mower Hitch
Pin Hitch 8" to 15" from the Ground
Dimensions
87.8" L x 40.1" W x 52.6" H
Weight
230 Lbs

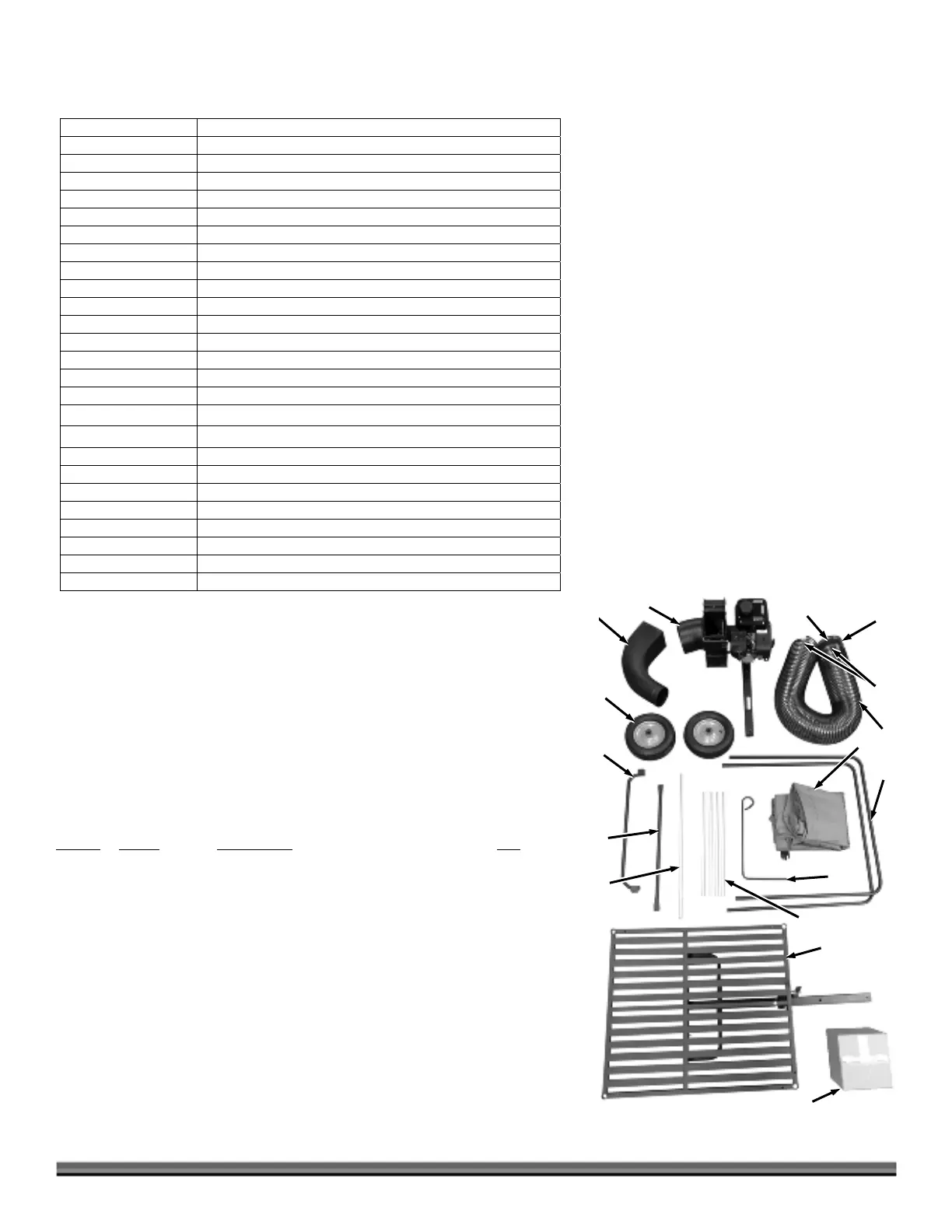

Assembly Parts Identification
Compare the contents of the Shipping Box with the Parts Supplied lists and
Figures 2 thru 6 below. If there are any questions contact us at
www.DRpower.com or call 1-800-DR-OWNER (376-9637).
Tools and Supplies Needed:
 Two 9/16" Wrenches
 Needle Nose Pliers
 Two 1/2" Wrenches
 Two 3/4" Wrenches
Parts supplied in Shipping Box (Figure 2):
Item #
Part # Description Qty
1 ............. 38858 .............. Chute, Impeller Outlet ................................... 1
2 ............. 33797 .............. Clamp, Hose, 8", Thumbscrew ...................... 1
3 ............. 34248 .............. Cuff, Hose, 8" ................................................. 1
4 ............. 33796 .............. Clamp, Hose, 8", LH Bridge .......................... 2
5 ............. 33795 .............. Hose, 8"ID x 72" Long, PVC .......................... 1
6 ............. 38854 .............. Enclosure, Fabric ............................................ 1
7 ............. 38844 .............. Tube, Collector ............................................... 2
8 ............. 34244 .............. Rod, Support Hose ......................................... 1
9 ............. 38866 .............. Batten, FRP, .58" X .12" X 29.4" ..................... 4
10 ........... 33801 .............. Axle ................................................................. 1
11 ........... 38852 .............. Tube Frame, Top Rear .................................... 1
12 ........... 38851 .............. Tube Frame, Top Front .................................. 1
13 ........... 33794 .............. Wheel & Tire, 14X 5.3/4.50-8, 4 Ply ............... 2
Power Unit
1
13
12
11
9
Rear Frame
and Collecto
r
Base Assembl
y
7
6
4
10
5
Parts Box
Figure 2
3
2
8
