21 DR POWERWAGON 5.0 Safety & Operating Instructions
Figure 1
7

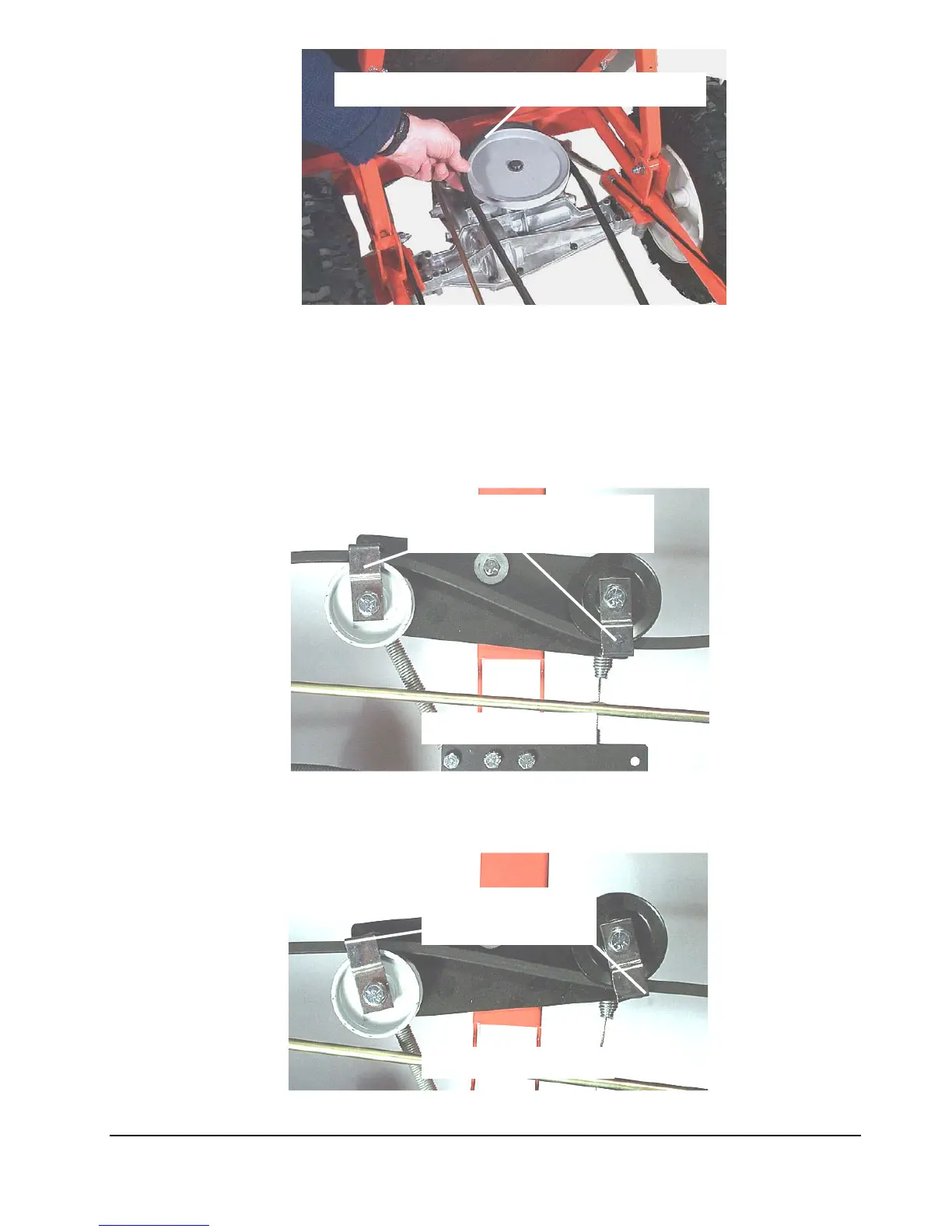

9. Squeeze the clutch lever to engage the clutch. The belt guides should be perpendicular
to and not touching the belt. (Figure 18) With the clutch engaged, adjust the guides as
necessary and tighten the guide bolts (Figure 16) with the 9/16" socket.
Note: When the clutch lever is released (disengaged), the belt guides will just touch the belt
(Figure 19) to prevent the DR POWERWAGON 5.0 from “creeping”.
Remove Belt from Transmission Pulley
Figure 1
8
Figure 19
Clutch Disen
g
a
g
ed
Guides just
touching the belt
Clutch En
g
a
g
ed
Guides perpendicular to
and not touching the belt
