DR PRO Series User Manual

Owner’s Manual for Portable Generator 7
Remove Contents from Carton
1. Open carton completely by cutting each
corner from top to bottom.
2. Remove and verify carton contents prior to
assembly. Carton contents should contain
the following:
Contents
Portability Kit (optional)
3. Call Customer Service at 1-855-447-3734
with the unit model and serial number for
any missing carton contents.
4. Record model, serial number, and date of
purchase on front cover of this manual.
Assembly
Call Customer Service at 1-855-447-3734 for
any assembly issues or concerns. Please
have model and serial number available.
The following tools are required to install the
accessory kit.
• Ratchet with 10mm and 13mm sockets
• 13mm box wrenches
NOTE: The wheels are not intended for over-
the-road use.
Install wheels as follows. See Figure 2-8.
1. Insert cotter pin (E) to one end of axle (B).
2. In this order; slide washer (D), wheel (A),
washer, (D), axle mount (2-C), washer (D),
wheel (A), washer (D), and cotter pin (E)
onto axle.
3. Place wheel assembly under frame so
axle mounts align with holes in cradle
frame.
4. Secure with M6 screws (L).
.

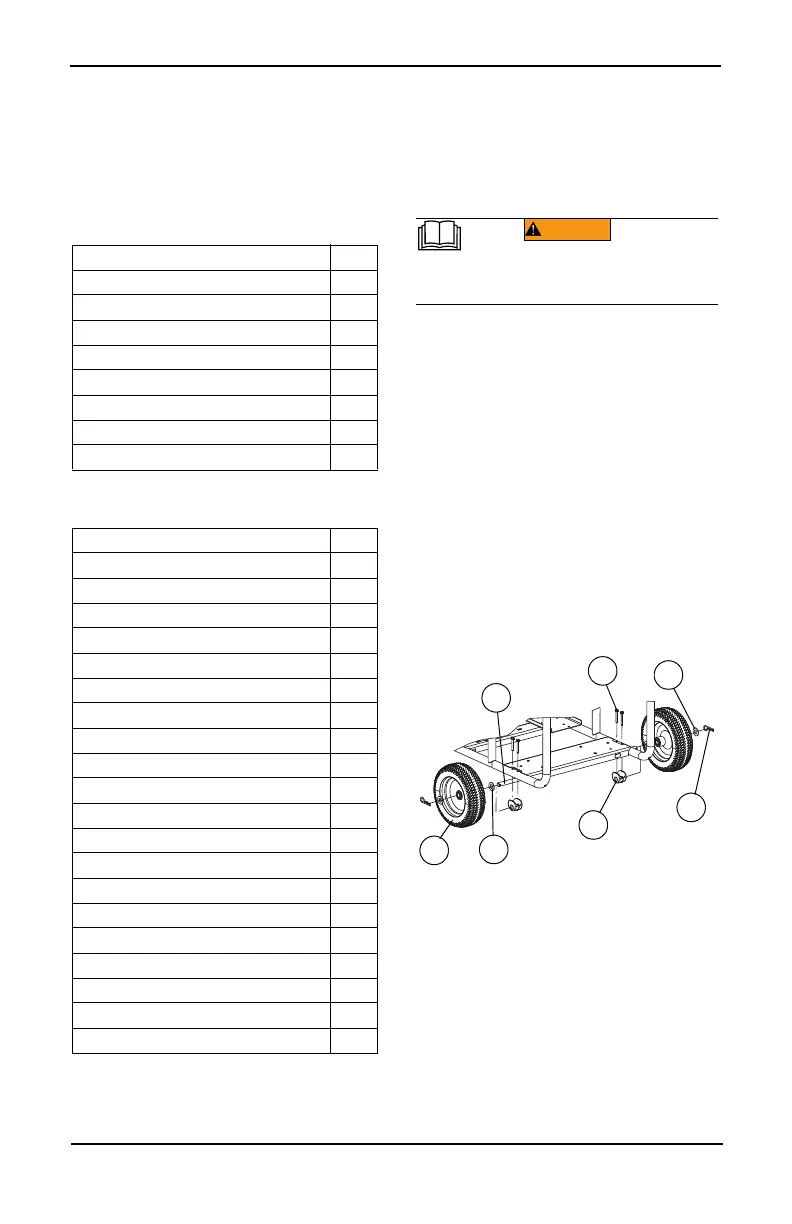

Figure 2-8.Wheel Assembly
Install frame foot and rubber bumpers as
shown in Figure 2-9.
1. Slide onto M8 screw (Q), flat washer (M),
rubber foot (K).
2. Slide assembly through frame foot (J). Add
M8 flat washer (N), and secure with M8-
1.25 Locknut (P).
3. Place foot bracket assembly under cradle.
4. Slide M8 flat washers (N) onto M8-
1.25x110 screws (T) and insert through
foot bracket assembly and cradle.
5. Secure with M8 flat washer (N) and M8
locknut (P).
Item Qty.
Main Unit 1
Owner’s Manual 1
Liter Oil SAE 30 2
Product Registration Card 3
Service Warranty 1
Emissions Warranty 1
Muffler Extension 1
Battery Bracket Assembly 1
Portability Kit (optional) Qty.
10” Wheel (A) 2
Axle (B) 1
Axle Mount (C) 2
5/8” Flat Washer (D) 4
Cotter Pin (E) 2
Handle (F) 1
Handle Mount (G) 2
Handle Grip (H) 2
Frame Foot (J) 2
Rubber Feet (K) 2
M6-1x50mm Screw (L) 4
.344”x1.0” Flat Washer (M) 2
M8 Flat Washer (N) 10
M8-1.25 Locknut (P) 6
M8-1.25x30 Screw (Q) 2
M8-1.25x45 Screw (R) 2
M8-1.25x50 Screw (S) 2
M8-1.25x110 Screw (T) 2
5/16x1.25 Pin Release (U) 1
Lanyard 1
(000100a)
WARNING
Consult Manual. Read and understand manual
completely before using product. Failure to
completely understand manual and product
could result in death or serious injury.
000704
B
L
E
C
D
C
A
