20 DR
®
FIELD and BRUSH MOWER
Figure 33
Greasing the Transmission Idler
Tools needed:
Grease Gun with General purpose Grease
Clean Rags

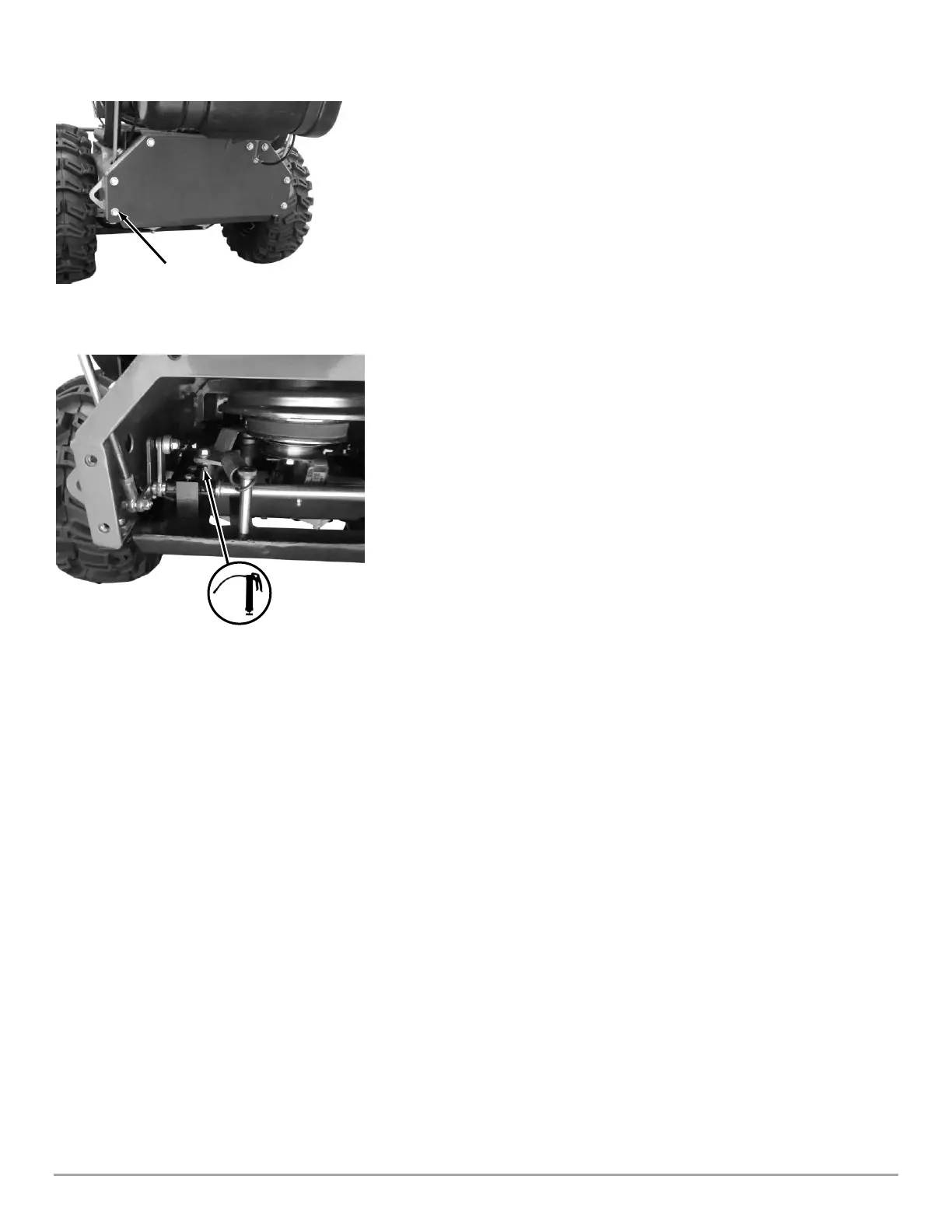

1. Remove the seven Bolts that secure the rear Cover Plate to the Frame using
a 9/16 Wrench and remove the Cover Plate (Figure 32).
2. Clean the Grease Fitting with a clean Rag (Figure 33).
3. Add a few pumps of Grease to the Grease Fitting.
4. Replace the Cover when finished.
Rear Cover
Plate
Figure 32
Bolt (7 Places)
