USING THE INTERLOCK
Turning on the System:
• Put out your cigarette (if applicable) and remove chewing tobacco, candy, gum, or any other
food product from your mouth.
• Always use a clean, dry mouthpiece.
• Make sure the mouthpiece is inserted properly as shown in Figure 1.
• Insert key into the ignition switch.
• Turn key to the “ON” position (usually two clicks).
Turn key back to the “OFF” position.
The Interlock will display "Warming Up - PLEASE WAIT" on the screen as shown in
Figure 2.
• When the Interlock is ready for the BAC test, it will display "Ready for Test - PLEASE BLOW"
on the screen as also shown in Figure 2 and the yellow light will ash.
TURNING ON THE SYSTEM

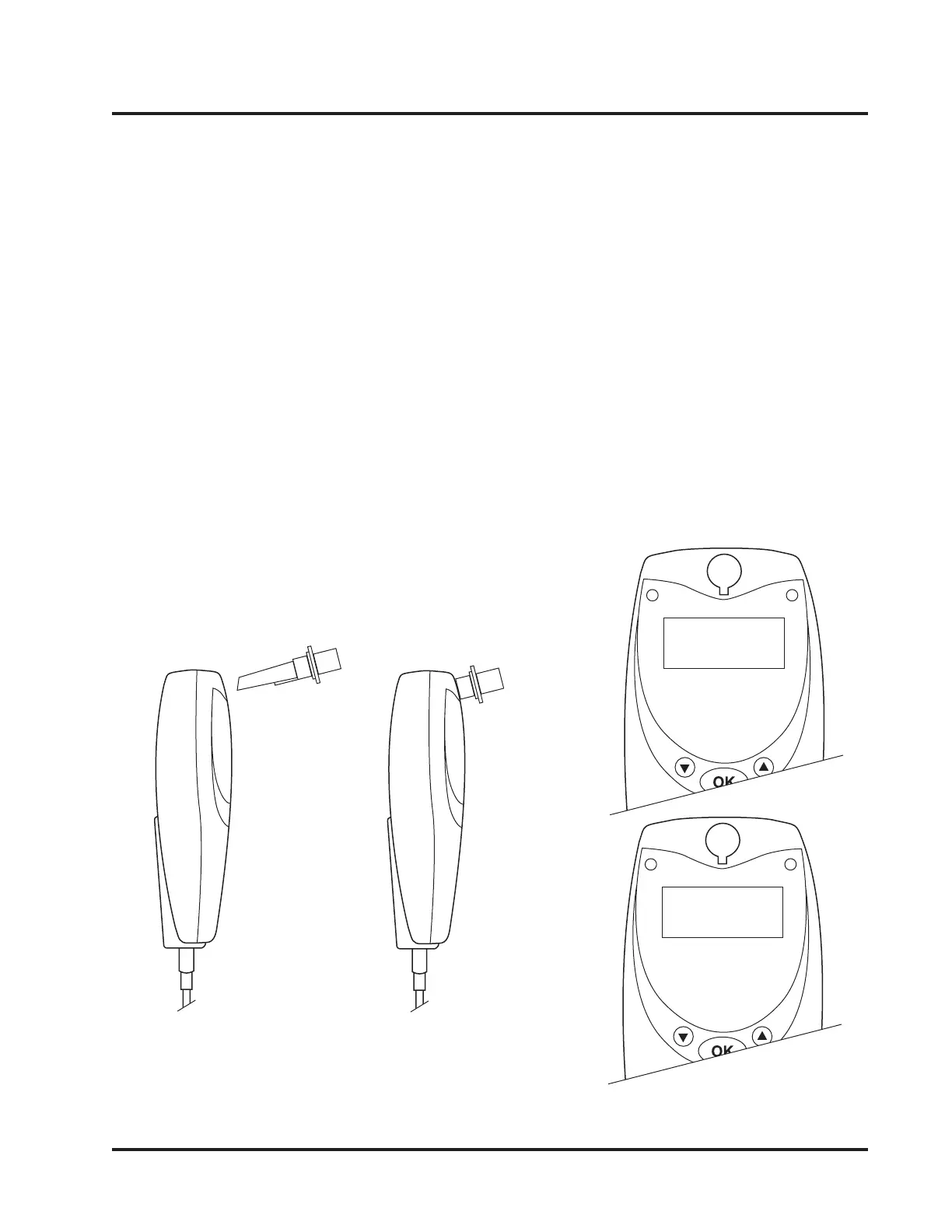

Figure 2
Wait / Please Blow
Figure 1
How to Insert Mouthpiece
Dräger
Interlock
Dräger
Interlock
Warming Up
Please wait
Ready for Test
Please blow
Insert mouthpiece
into opening
(Notice groove)
Mouthpiece
inserted
(Notice groove)
Handset Handset
