Assembly and preparation
46 Instructions for use Babylog 8000 plus SW 5.n

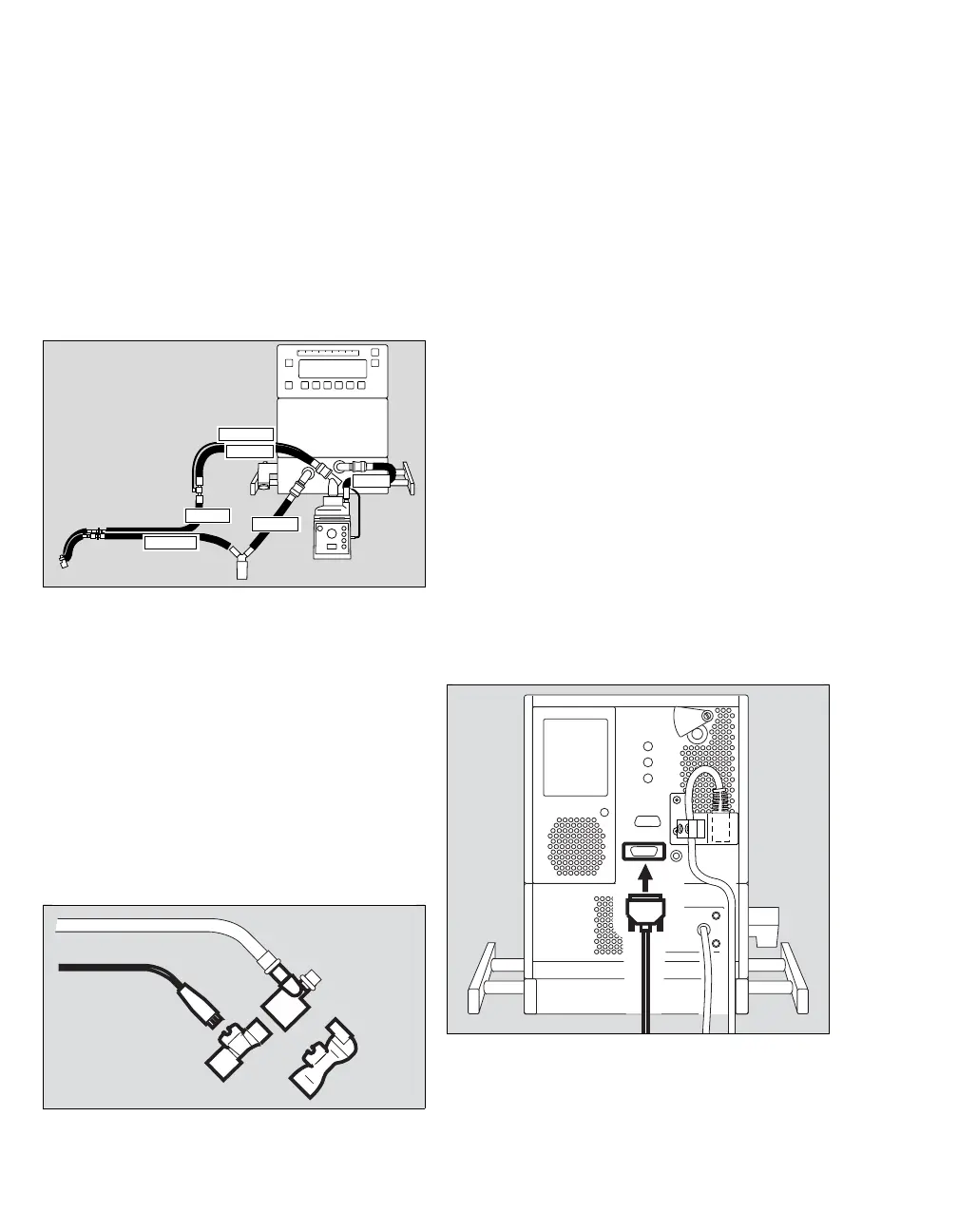

Attaching the breathing hoses for high-
frequency ventilation (HFV)
Use the breathing circuit "HF Fisher & Paykel"
(8411153) with the reusable humidifier chamber
F&P MR 430 (8411047) or with the disposable
humidifier chamber F&P MR 290 (8418282). The
minimal compliance of this breathing circuit only
slightly damps the high-frequency oscillations so
that sufficient gas volumes can be applied.
1 Connect the breathing hoses to the inspiratory
and expiratory ports. Observe the hose
lengths.
2 Install the water trap and place it vertically.
Attaching the Y-piece and the flow
sensor
The following flow sensors are available:
– ISO 15 flow sensor (8411130)
– Y-piece flow sensor (8410185)
Attaching the ISO 15 flow sensor
1 Insert the Y-piece (A) into the breathing hoses.
2 Insert the ISO 15 flow sensor (C) into the Y-
piece.
3 Position the Y-piece such that the patient
connection points down at an angle of
approximately 45°. This prevents condensate
from accumulating on the flow sensor.
Attaching the Y-piece flow sensor
1 Insert the Y-piece with integrated flow sensor
(B) into the breathing hoses.
2 Position the Y-piece such that the patient
connection points down at an angle of
approximately 45°. This prevents condensate
from accumulating on the flow sensor.
Connecting the flow sensor cable
1 Connect the plug (D) of the flow sensor cable
to the flow sensor.
2 Run the flow sensor cable along the breathing
hoses to the device.
3 Insert the plug of the flow sensor cable into the
connector at the rear and tighten the screws.
2191020910
P
P
P
P
PP
P
A
B
C
D
21226
