Assembly and preparation
18 Supplement Fabius plus SW 3.n
Connecting the sensors and the measuring lines
The following chapter has been added:

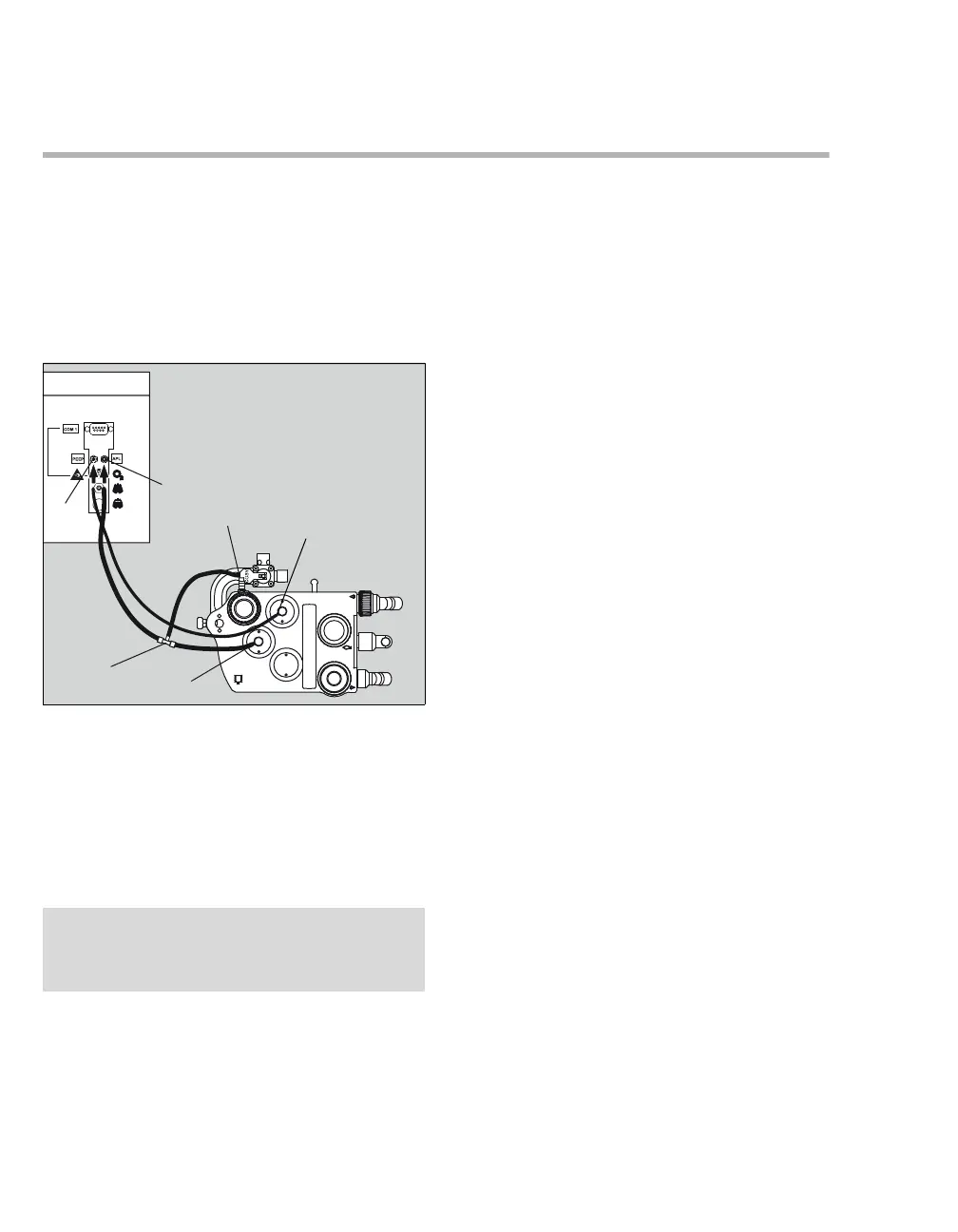

Connecting the APL bypass hose and
PEEP/PMAX hose
On devices with the "External fresh-gas outlet with
an additional switch and ventilator lock" option, the
following must be observed when connecting the
APL bypass hose:
The APL bypass hose consists of a long hose with
a T-piece and a short hose.
1 Connect the long APL bypass hose to
connectors A and B.
2 Connect the short APL bypass hose to
connectors E and F.
3 Connect the PEEP/P
MAX hose to connectors C
and D.
25454
NOTE
The APL bypass hose is thicker than the
PEEP/P
MAX hose.
