OVERVIEW
VF8 DELTA/DELTA XL/KAPPA 1-7

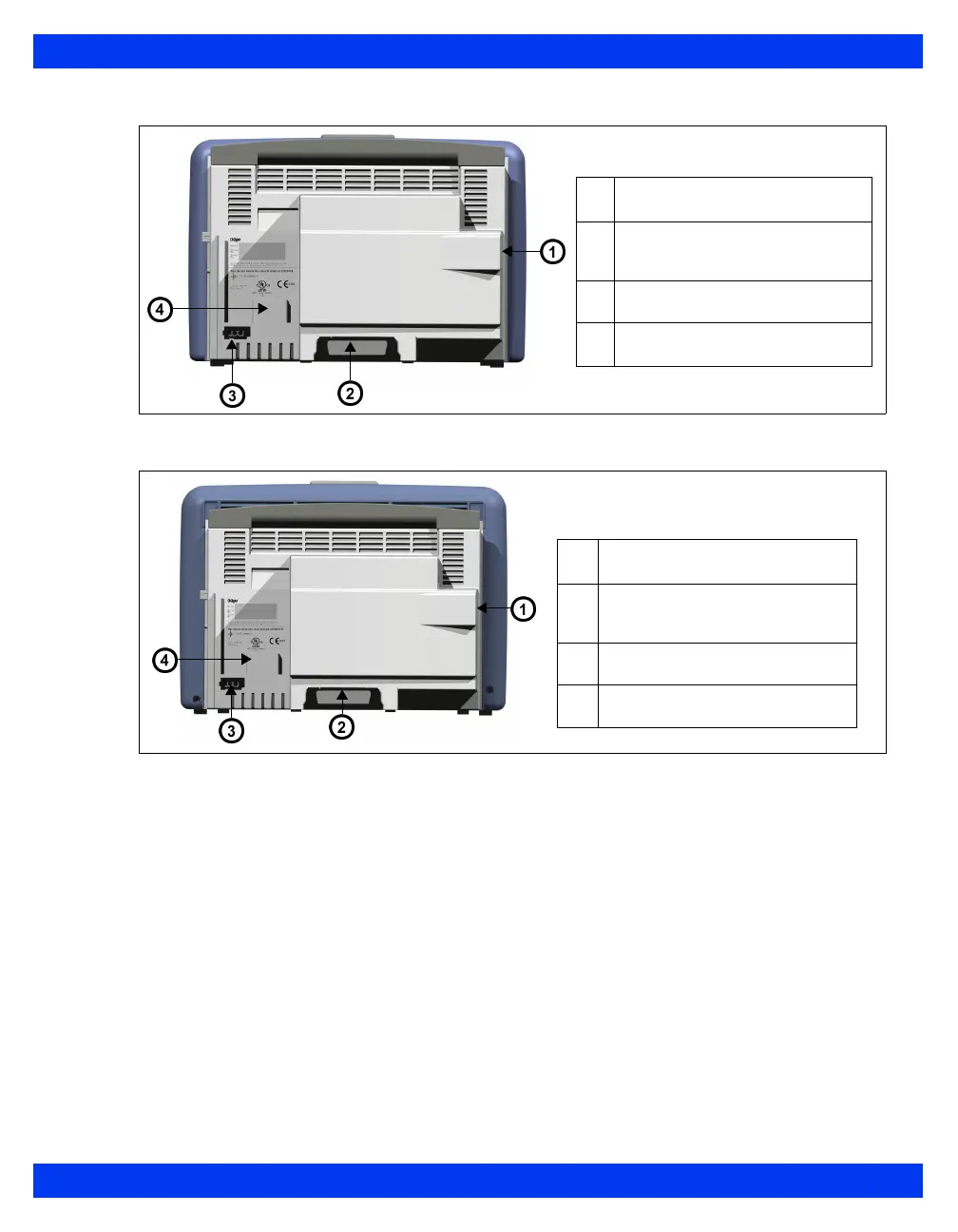

Monitor Rear View – Delta
Monitor Rear View – Delta XL
1
External (lead-acid) battery
compartment
2
Connector for docking station/
interface plate
3
Connector for AC adaptor
4
Slot for etCO
2
module
1
External (lead-acid) battery
compartment
2
Connector for docking station/
interface plate
3
Connector for AC adapter
4
Slot for etCO
2
module
