Instructions for use Oxylog 3000 plus SW 1.n 29
Operating concept
Ventilation controls
Controls for ventilation settings
A Keys for selecting the ventilation modes:
– VC-CMV/VC-AC
–VC-SIMV
– Spn-CPAP
– PC-BIPAP.
B Rotary knob
C Ventilation parameter controls:
– Inspiratory tidal volume VT [mL],
– Respiratory rate RR [/min],
– Maximum inspiratory pressure Pmax
[mbar],
– Inspiratory O
2 concentration FiO2 [%].

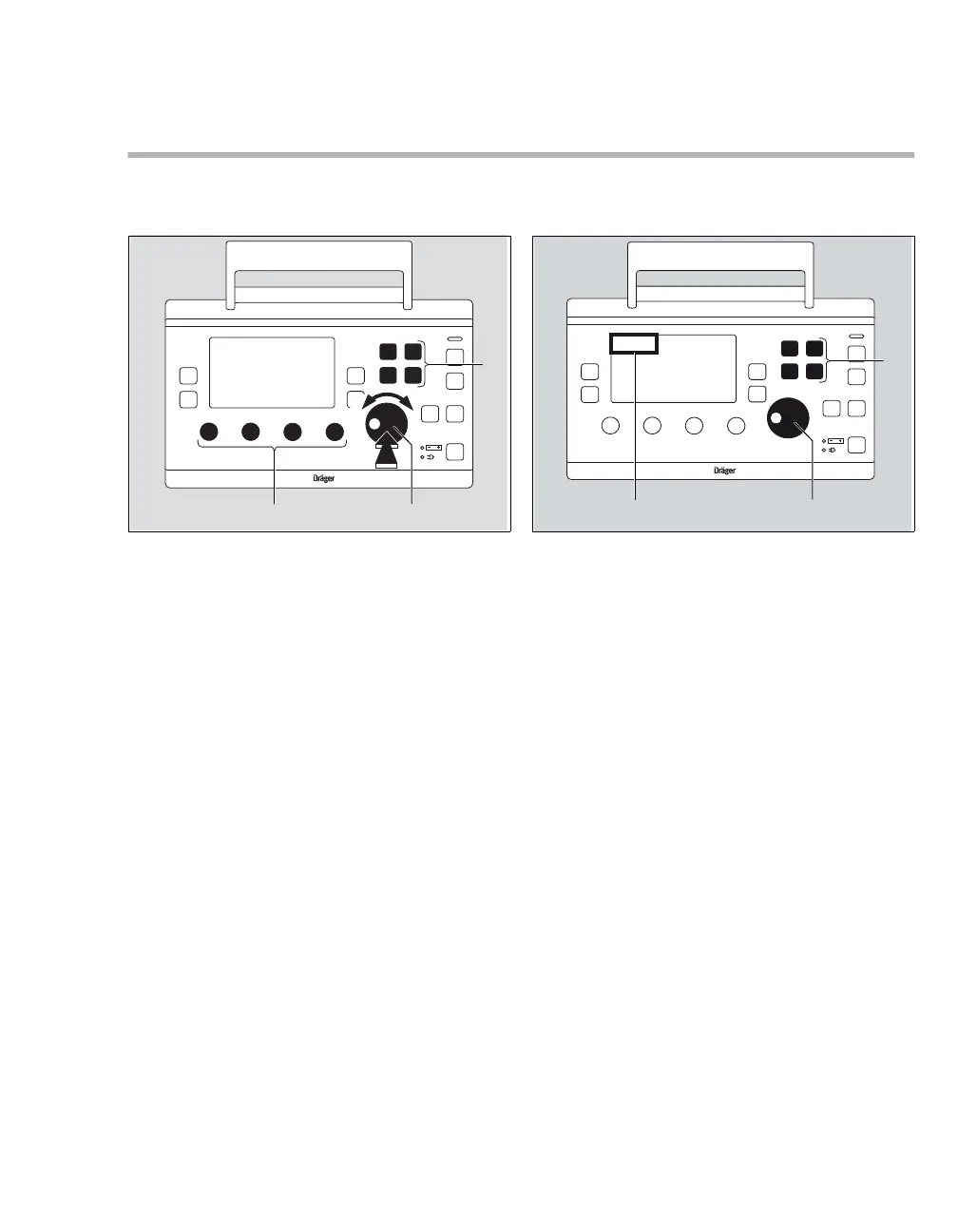

Setting ventilation modes
Press the ventilation mode key (A) for
approximately 3 seconds.
Or
1 Press the appropriate ventilation mode
key (A).
2 Press the rotary knob (B) to confirm.
The selected ventilation mode will be activated.
The active ventilation mode is displayed in the
upper left corner of the display (C).
00137170
08537170
Oxylog 3000 plus
BC
A
