© Drägerwerk AG & Co. KGaA, 2019
Savina Operating concept
Control and display unit
11

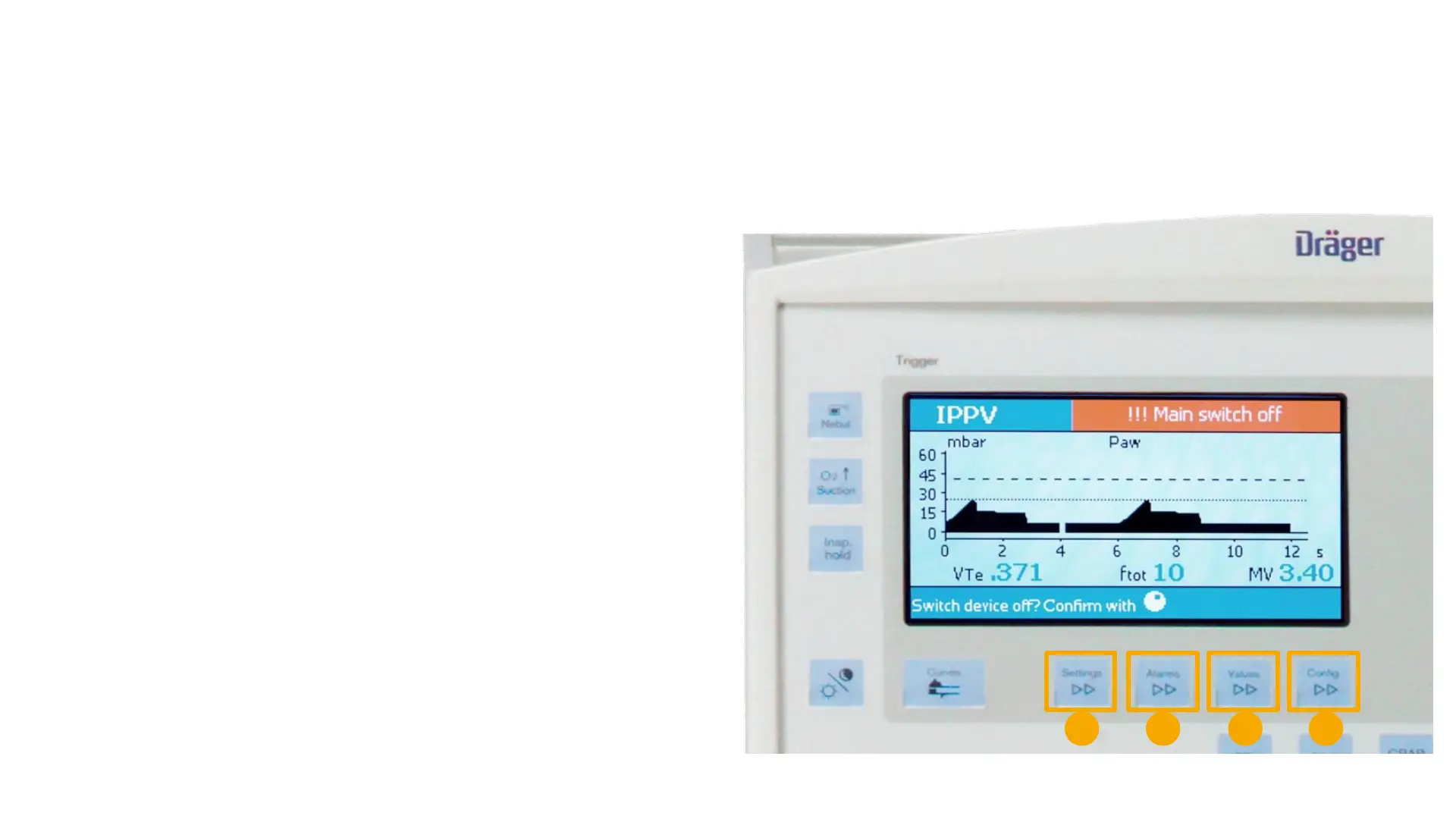

Opening a dialog window
Dialog windows are opened by pressing the corresponding key; dialog
windows consist of one or more pages.
1. Dialog window advanced Settings:
Page 1/1: Trigger, FlowAcc, AutoFlow, Apn-Vent., VT
Apnoea
, f
Apnoea
, ∆Sigh
2. Dialog window Alarms:
Page 1/2: Paw, MV, T
apnoea
, f
tot
; Vt
i
Page 2/2: T
disconnect
(only in NIV), FiO
2
(only in LPO)
3. Dialog window Values:
Page 1/3: P
peak
, P
plat
, P
mean
, PEEP, Vt
e
, MV, MV
spn
, FiO
2
;
Page 2/3: f
tot
, f
spn
, I:E, T
plat
, T
insp
, Flow
peak
, R, C, Temp.;
Page 3/3 (only in NIV): f
tot
, f
spn
, PEEP, Vt
pat
, MV, MV
spn
, Mv
leak
4. Dialog window Configuration:
Page 1/4: Contrast of screen, Alarm signal volume, Measured values for main screen
Page 2/4: O
2
calib., O
2
monitoring, Flow monitoring, Pmax, Plateau, LPO-mode
Page 3/4: Language, dd.mm.yy, h:m, Baudrate, Parity
Page 4/4: SW, Working hours, h since service, Release code, Device-ID
