Dräger Savina Short Guide

© Drägerwerk AG & Co. KGaA, 2019
Savina – Cleaning, disinfection, and
sterilization
29

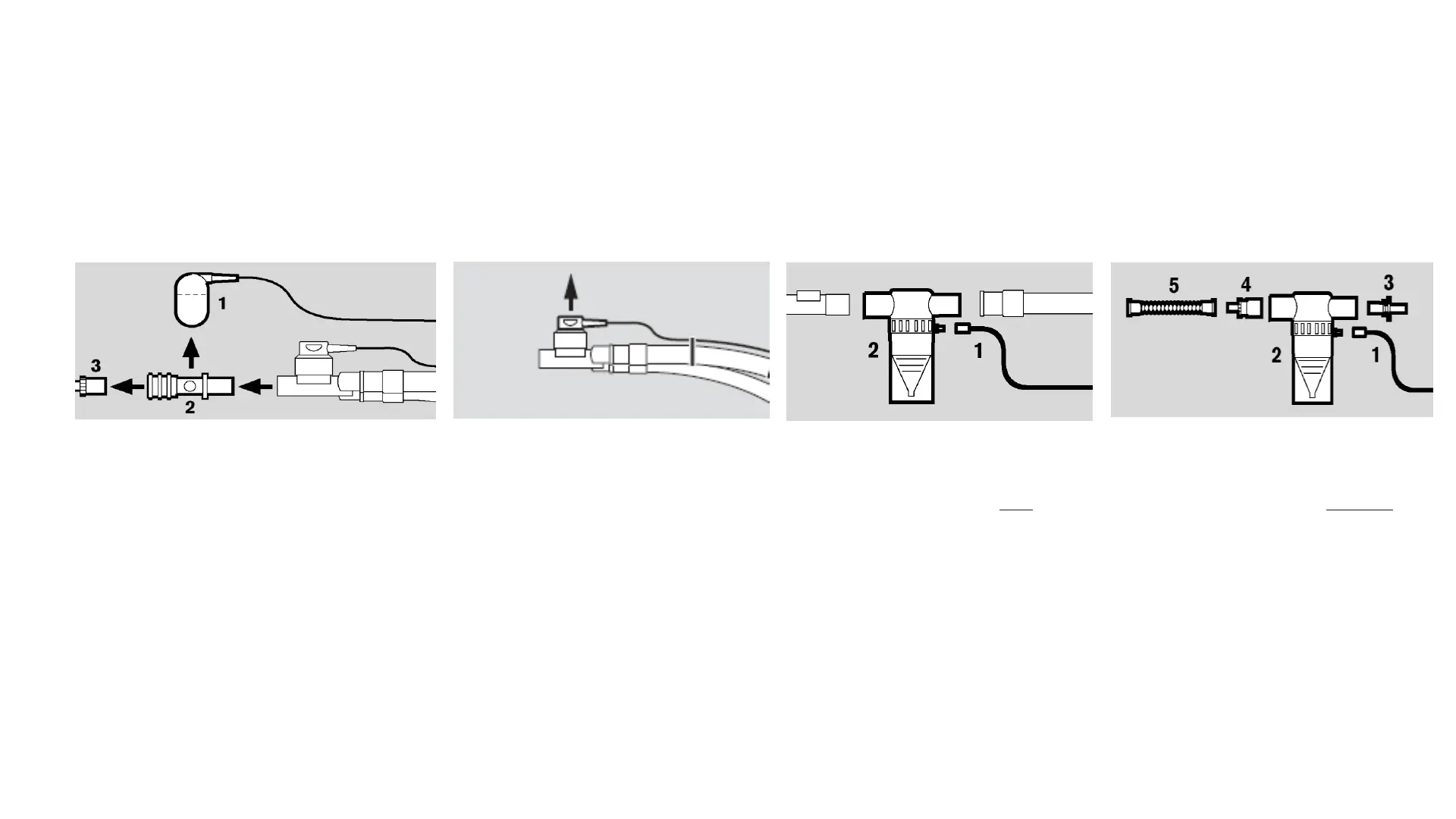

Disassembling
CO
2
sensor (optional): (1) Remove from the
cuvette. Unplug the connector from the back of the
unit.; (2) Remove the cuvette of the CO2 sensor
from the Y-piece.; (3) Remove the catheter cone
from the cuvette; Prepare the CO2 sensor for wipe
disinfecting; Reprocess the reusable cuvette e. g. in
a washer-disinfector (do not use rinse aid); The
disposable cuvette cannot be reprocessed and
must be disposed of.
Temperature sensor: Unplug the connector
from the socket for the breathing gas
temperature sensor on the patient
connection panel; Remove the breathing gas
temperature sensor from the Y-piece or from
the holder of the breathing circuit for
pediatric patients. Do not pull on the cable.
Nebulizer (optional): (1) Remove the
nebuliser hose from the nebuliser and from
the port on the device; (2) Remove the
medication nebuliser from the adult
breathing circuit.
Dismantle the medication nebulizer in
accordance with the corresponding
instructions for use.
Nebulizer (optional): (1) Remove the
nebuliser hose from the nebuliser and from
the port on the device; (2) Remove the
medication nebuliser from the paediatric
breathing circuit; (3) Remove the catheter
connector from the inlet; (4) Remove adapter
from the outlet; (5) Remove corrugated hose
from the adapter; Dismantle and reprocess
the medication nebuliser in accordance with
its specific Instructions for Use.

Dräger Savina Specifications

General

FiO2	21 - 100 %
Ventilation Modes	CPAP/ASB
Display	Color
Power Supply	100 – 240 V AC, 50/60 Hz
Patient Range	Adult, Pediatric, Neonatal
Tidal Volume Range	20 to 2000 mL
Screen Size	12.1 inch
Inspiratory Time	0.1 - 10 s
