Dräger Savina Short Guide

© Drägerwerk AG & Co. KGaA, 2019
Savina – Operating concept

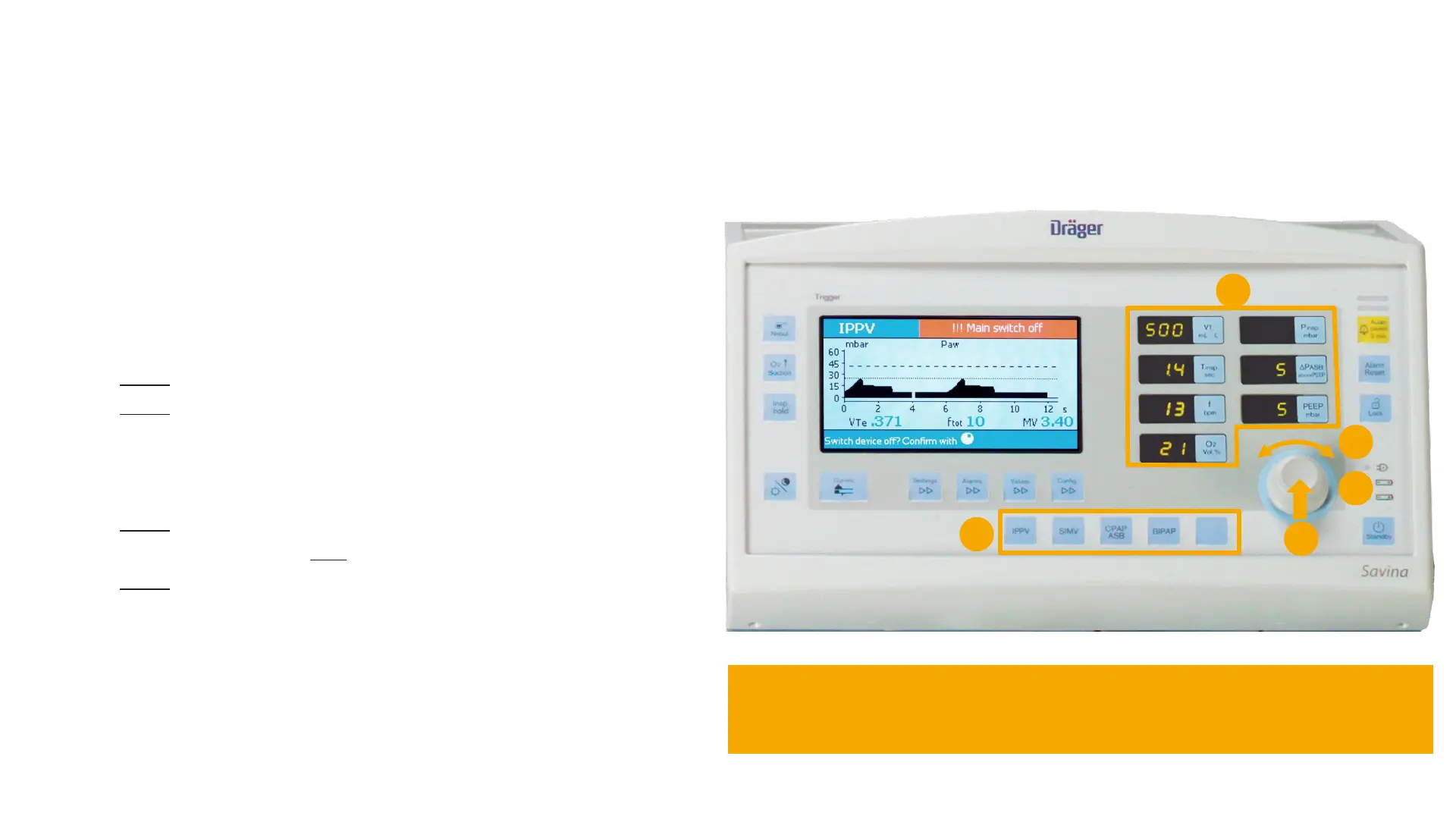

Control and display unit
8
Control and display unit
1. The Rotary knob is used to select, set and confirm parameters.
2. Keys to adjust ventilation mode:
− press the corresponding key,
− press the rotary knob to confirm, the yellow LED in the key
lights up
3. Setting ventilation parameters:
− press the corresponding key, the yellow LED in the key lights up
− to make the setting, turn the rotary knob to the right or left
− press the rotary knob to confirm, the setting is accepted, the
yellow LED in the key turns off
3
1
2
2
3
Activating a function
Press the corresponding key. If there is one, the yellow LED in the key lights up.
Deactivating a function
Press the corresponding key again. The yellow LED in the key turns off.

Dräger Savina Specifications

General

FiO2	21 - 100 %
Ventilation Modes	CPAP/ASB
Display	Color
Power Supply	100 – 240 V AC, 50/60 Hz
Patient Range	Adult, Pediatric, Neonatal
Tidal Volume Range	20 to 2000 mL
Screen Size	12.1 inch
Inspiratory Time	0.1 - 10 s
