Dräger UCF 1600

TIC Orientation/Greg Sesny5/25/2008
28 | 37

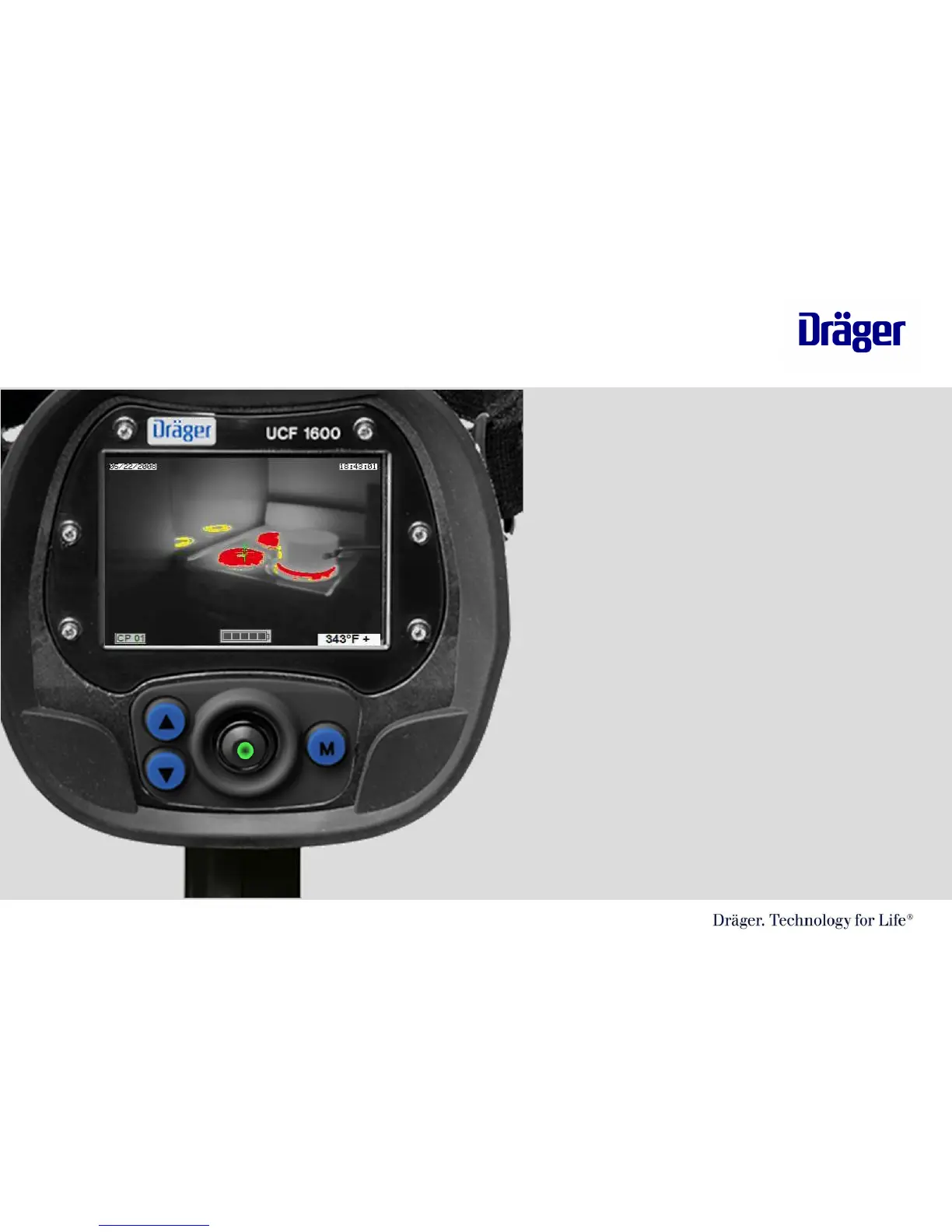

Dräger UCF Thermal Camera
Normal Mode/EI Mode
Normal Mode
The UCF 1600 and the UCF 3200 thermal
cameras have two modes that they will
operate in.
•In normal mode, the user can select
between several color palettes and use the
ThermalScan™ feature.
•Dräger UCF cameras come standard with 4
colors.
•Blue color is when the temperature is 32° or
below.
•Grayscale color is when the temperature is
32°- 230°
•Yellow Color is when the temperature is 230°
•Orange Color is when the temperature is 284°
•Red Color is when the temperature is 325°+
