Dräger UCF Thermal Camera
Optional Additional Features

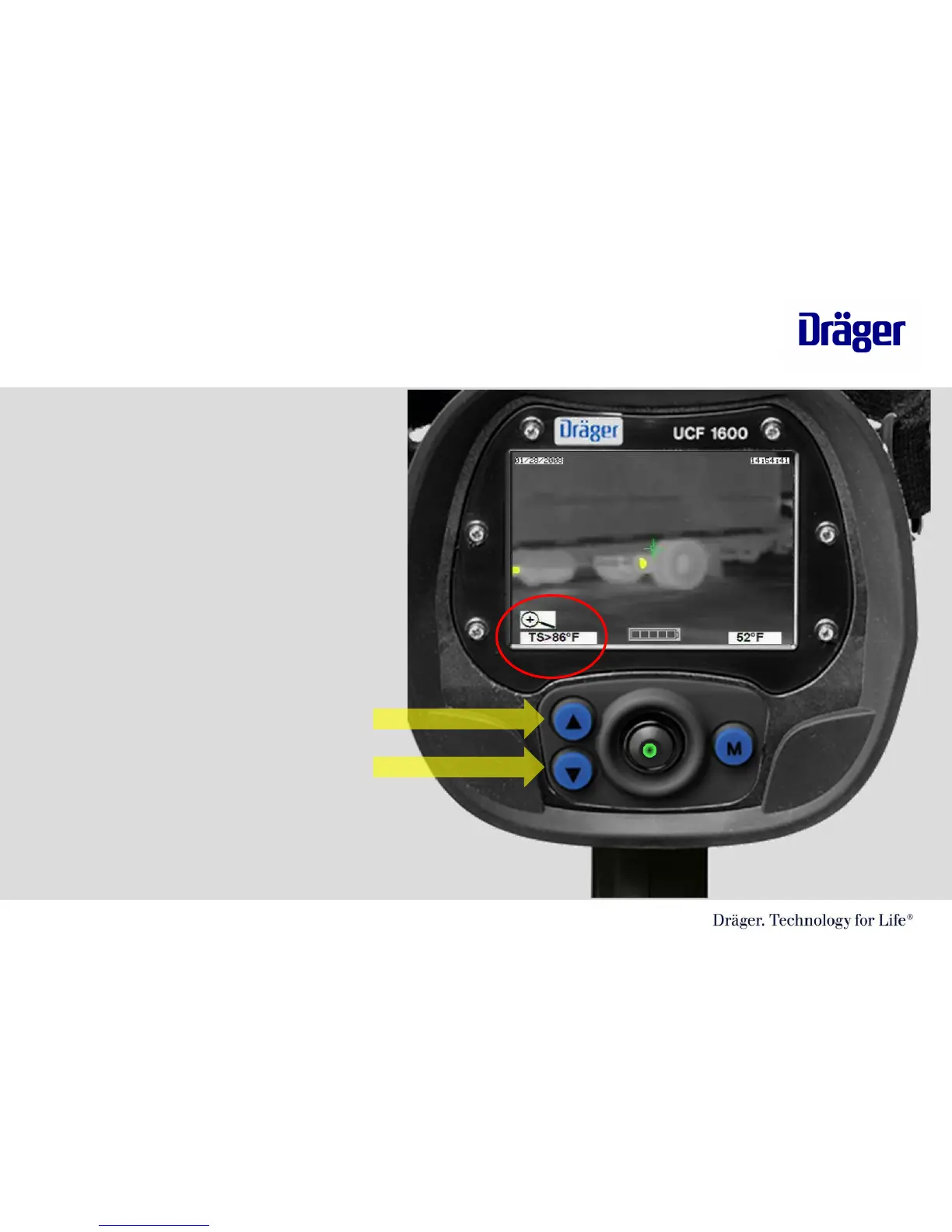

ThermalScan™ Buttons
The UCF 1600 and the UCF 3200 thermal
cameras offer the optional Thermal Scan
(TS) technology for highlighting areas above
a set ambient temperature in a yellow color.
Ideal for use of smell of smoke calls and
overhaul.
• To activate the ThermalScan™ press either
the UP or DOWN arrows for approximately 1
second to raise or lower your desired
ambient temperature range. Ranges can go
from 244 degrees Fahrenheit to -33 degrees
Fahrenheit. Holding down the arrow button
will change the desired temperature faster.
• To deactivate the ThermalScan™ press
and hold both arrows for approximately 2
seconds. The ThermalScan threshold will
disappear from the screen and return to
normal mode.
*Note: if you are in ThermalScan mode and in extreme temperatures, the camera
will automatically go into EI Mode and deactivate the ThermalScan.
