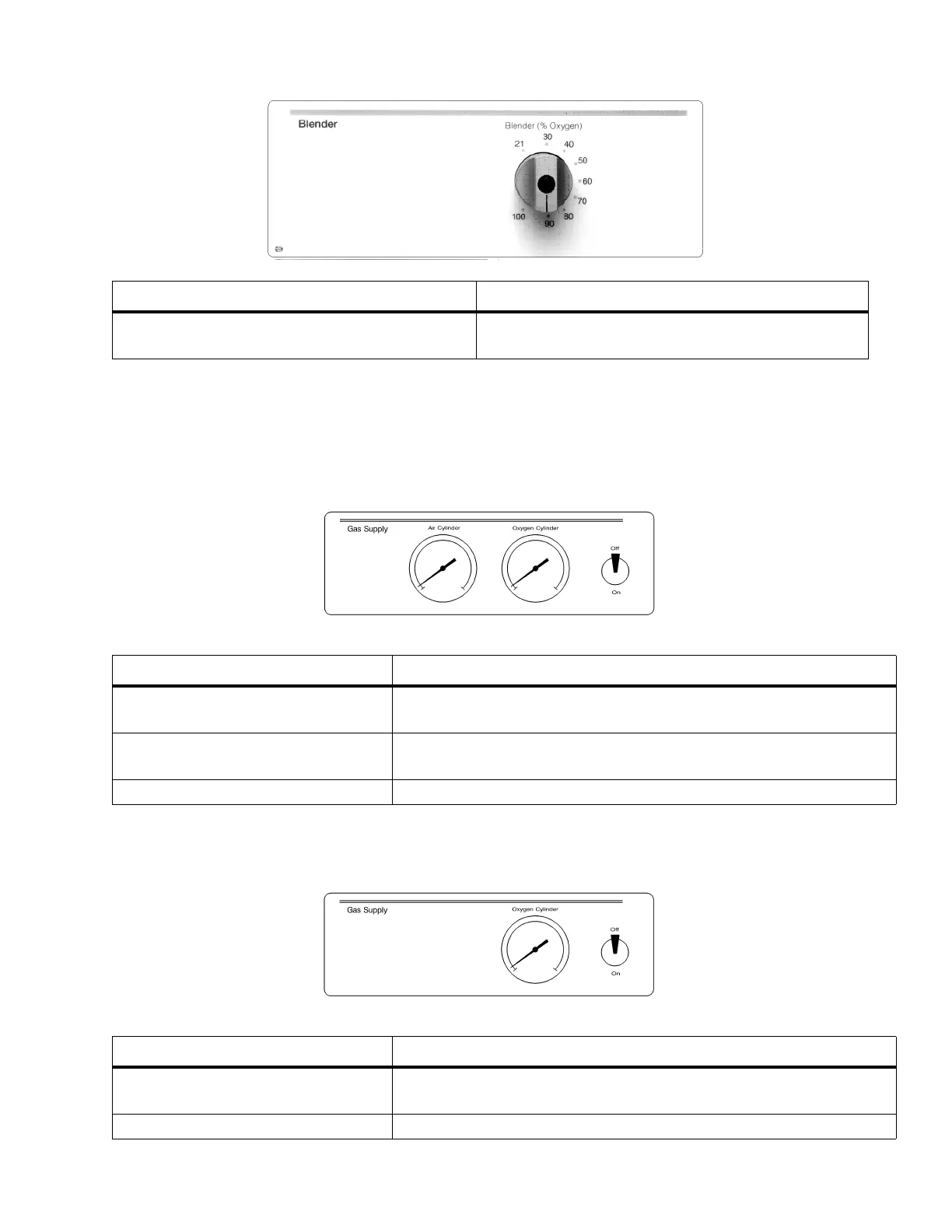

Blended Gas Supply Control
NOTE:
The Blender Module option changes the Resuscitation Module to add the air pipeline, the tank
connections, and also adds an air gauge to the Gas Supply Module.
Gas Supply Module with Blender Option Controls and Indicators (Optional)
or
Gas Supply Module Controls and Indicators (Optional)
Name Description
Blender % Oxygen control Blends the air and oxygen mixture from 21% to
100% oxygen to the primary patient outlet.
Name Description
Air cylinder gauge Provides an indication of the air cylinder supply pressure from
0 kPa (0 psi) to 27579 kPa (4000 psi).
Oxygen cylinder gauge Provides an indication of the oxygen cylinder supply pressure
from 0 kPa (0 psi) to 27579 kPa (4000 psi).
Gas supply On/Off switch Enables the gas source and tank systems once opened.
Name Description
Oxygen cylinder gauge Provides an indication of the oxygen cylinder supply pressure
from 0 kPa (0 psi) to 27579 kPa (4000 psi).
Gas supply On/Off switch Enables the gas source and tank systems once opened.
