Use
Dräger X-dock 5300/6300/6600 17
 X-am-125+ module with charging function only:
 After the instrument is inserted, the charging status is
displayed for approx. 5 seconds via the charging status
LED.
 The charging function starts automatically approx. 15
mintues after the last test.
To remove the instrument from the module:
1. Push the lock up slightly and open the module cover
upwards.
2. Remove the instrument.
5.3 Station self-test
A self-test is carried out:
 When the station is started up.
 When the last successful self-test was more than 24 hours
ago and a test is being carried out.
The station is tested for leaks, pump function, and the software
version of the individual modules and the master.
5.4 Conducting a test
The following tests are preconfigured:
1. If necessary, open the test gas cylinders.
2. If necessary, switch on the X-dock.
3. Conduct a visual inspection of the instruments (see
chapter 5.1 on page 16).
4. Insert the instruments into the modules (see chapter 5.2 on
page 16).
If Single mode is activated:
 The default test is started automatically when the module
flap closes.
The Status LED flashes blue.
The individual test phases are displayed.
If Favorites mode is activated:
 Select the desired test from favourites bar.
Test will be started automatically.
The status LED flashes blue.
The individual test phases are displayed.
If Test scheduler is activated:
 If necessary, log user out on the station (see chapter 4.5 on
page 9).
 The preset test is performed according to the configured
time schedule.
If Log-in mode is activated:
 Log user in on the station (see chapter 4.5 on page 9).
 Select the desired test from favourites bar.
Test will be started automatically.
The status LED flashes blue.
The individual test phases are displayed.

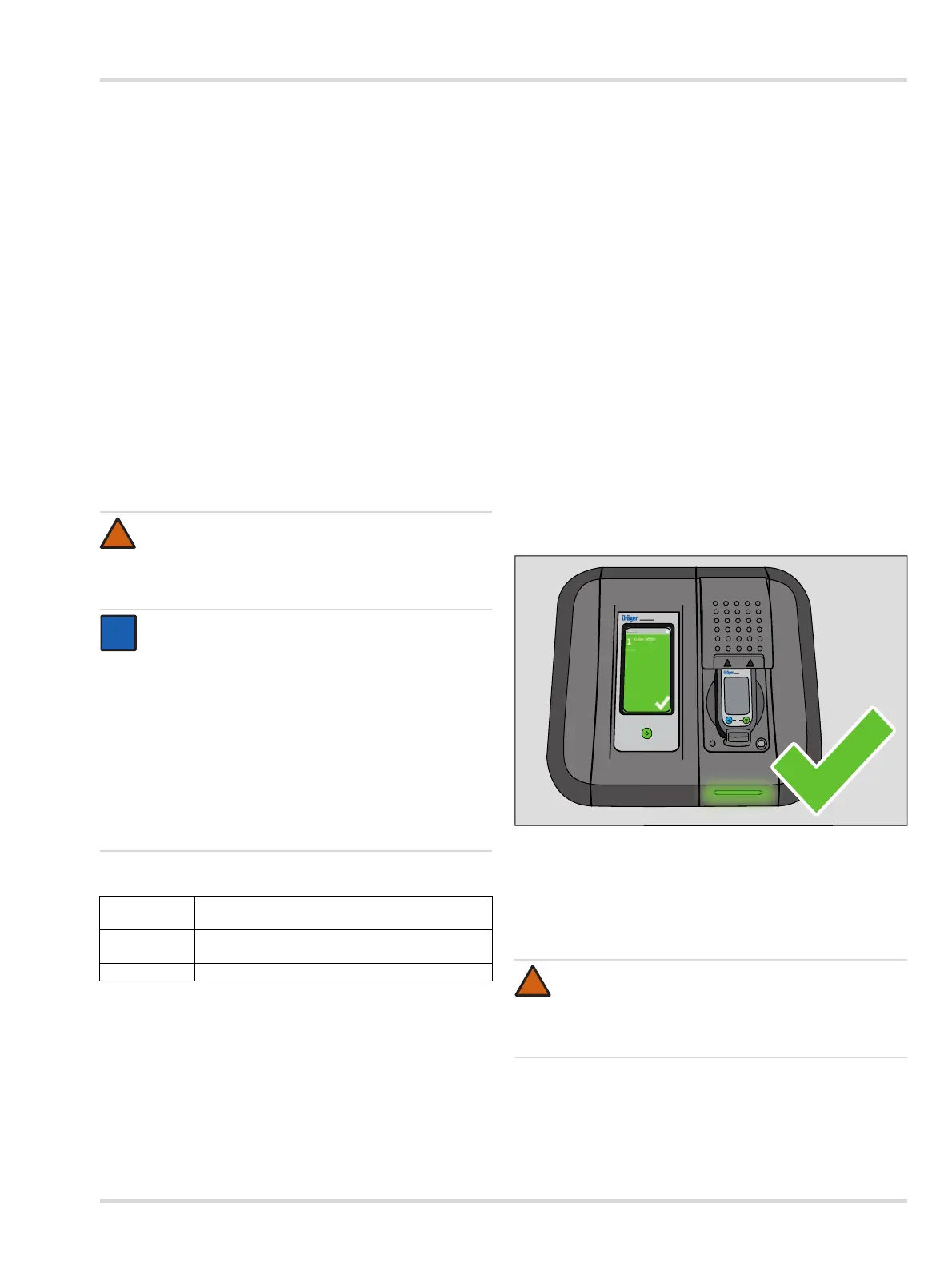

Test passed:
 Confirmation is shown on the display.
 The Status LED flashes green.
 If required, select the desired instrument field for additional
information.
 Remove the instrument from the module.
WARNING
When using methane, propane or butane in the range
>100 %LEL, an exhaust hose (max. 10 m long) must
be connected to the exhaust outlet to ensure the
extraction of excess explosive gas.
NOTICE
Single mode is activated by default.
Several tests can be started and executed in parallel in
the Single mode.
A failure of a LED, horn or vibration test results in a
negative evaluation of the overall test, and thus in the
locking of the respective gas measurement system.
A test of the sensor reserve is only performed with
sensors that support this function. The results are
displayed under test details and give information about
the state of the sensor.
Test 1: QT
Quick bump test including checking the alarm
elements.
Test 2: EXT
Extended bump test incl. zero-point check and
checking the alarm elements.
Test 3: CAL Calibration and checking the alarm elements.
!
i
i
WARNING
Prior to each use of the gas detector, check whether it
is switched on and in measuring mode after removing
it from the X-dock. Otherwise the user may carry a
device that is switched off!
X-am 5000
X-dock 5300
0
0
01033286.eps
!
