DRAKE R8A - Memory Functions

DRAKE FA Communications Receiver
usT TIME
A-B CARR
VFO (A) =(B), (PRE) (ATTN)
AnB | ANTONY 2\VHE | (NOTCH
aac (6) (F)
Memory Functions 20
os RITY
12 ON OFF
TIMER
CLK/FREQ
step |
(LOCK
NB (NW)
| 'Nawe; |

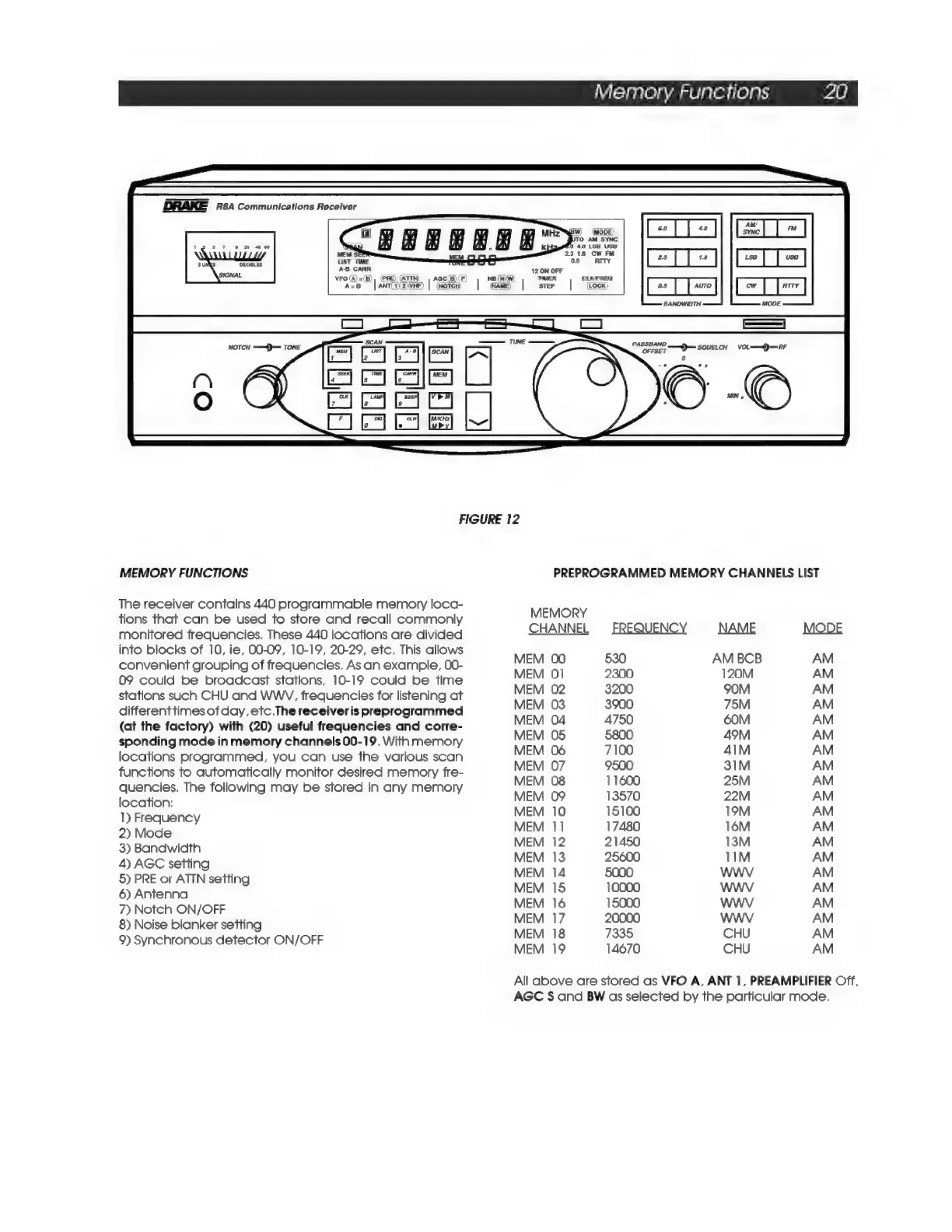

FIGURE 12
MEMORY FUNCTIONS
The receiver contains 440 programmable memory loca-
tions that can be used to store and recall commonly
monitored frequencies. These 440 locations are divided
into blocks of 10, ie, 00-09, 10-19, 20-29, etc. This allows
convenient grouping of frequencies. As an example, 00-
09 could be broadcast stations, 10-19 could be time
stations such CHU and WWYV, frequencies for listening at
differenttimes of day, etc. The receiveris preprogrammed
(at the factory) with (20) useful frequencies and corre-
sponding mode in memory channels 00-19, With memory
locations programmed, you can use the various scan
functions to automatically monitor desired memory fre-
quencies. The following may be stored in any memory
location:
1) Frequency
2) Mode
3) Bandwidth
4) AGC setting
5) PRE or ATTN setting
6) Antenna
7) Notch ON/OFF
8) Noise blanker setting
9) Synchronous detector ON/OFF
PREPROGRAMMED MEMORY CHANNELS LIST
MEMORY
CHANNEL FREQUENCY NAME MODE
MEM 00 530 AM BCB AM
MEM 01 2300 120M AM
MEM 02 3200 90M AM
MEM 03 3900 75M AM
MEM 04 4750 60M AM
MEM 05 5800 49M AM
MEM 06 7100 41M AM
MEM 07 9500 31M AM
MEM 08 11600 25M AM
MEM 09 13570 22M AM
MEM 10 15100 19M AM
MEM 11 17480 16M AM
MEM 12 21450 13M AM
MEM 13 25600 11M AM
MEM 14 5000 WWV AM
MEM 15 10000 WWV AM
MEM 16 15000 WWV AM
MEM 17 20000 WWV AM
MEM 18 7335 CHU AM
MEM 19 14670 CHU AM
All above are stored as VFO A, ANT 1, PREAMPLIFIER Off,
AGC S and BW as selected by the particular mode.
