- 8 -
ASSEMBLY

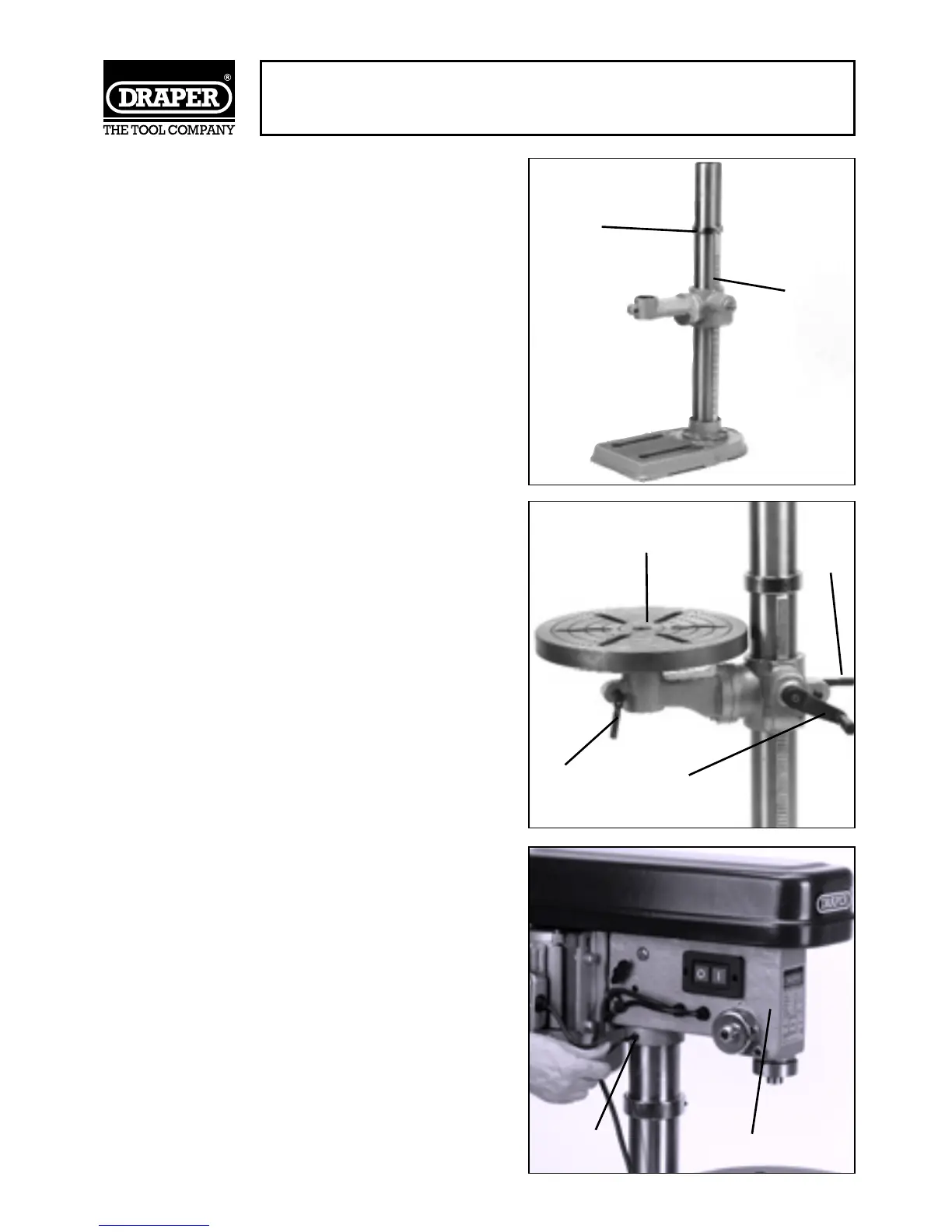

4. Ease table bracket and rack all the way down
onto the column. Replace collar - and re-
tighten the grub screw, locking rack . into
place.
5. Slide table / into the table bracket as
shown in Fig.6 and lock into place using the
table locking handle 0.
6. Fix table raising handle 1 and bracket
locking handle 2 as shown in Fig 6.
7.Place the drill press head 3 onto column as
far as it will go (seek assistance as it is heavy).
Align the head and table to drill press base and
tighten the two head locking screws 4 as
shown in Fig 7.
Fig.5.
Fig.6.
Fig.7.
-
.
4
3
/
0
1
2
