- 7 -
ASSEMBLY

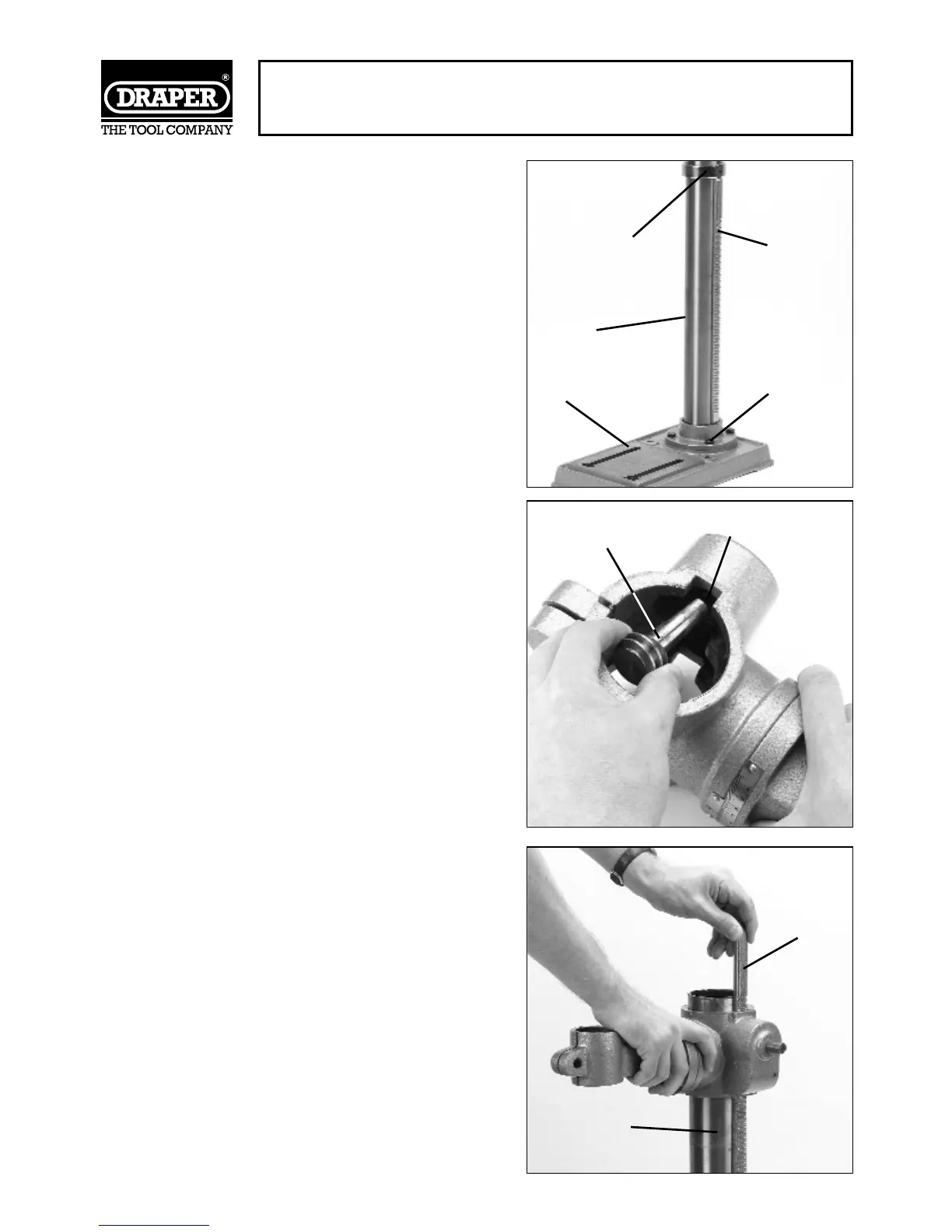

ASSEMBLING THE DRILL PRESS
1. Secure column $ to base % using the
four bolts &. Loosen grub screw and remove
collar ' along with the rack (.
2. Locate worm gear ) into hole * as
shown in Fig.3.
3. Place rack + in position in table bracket,
as shown in Fig.4. and slide onto column ,.
Fig.2.
Fig.3.
Fig.4.
'
$
%
&
)
*
+
,
(
