Draper PPW650 - ASSEMBLING THE PRESSURE WASHER; 8.1 HOSE AND CABLE TIDY; 8.2 PRESSURE HOSE TO PRESSURE PUMP; 8.3 PRESSURE HOSE TO GUN

8. ASSEMBLING THE PRESSURE WASHER
WARNING: Unit is heavy. Do not attempt to lift and remove the pressure washer
from the box.
The pressure washer comes almost fully assembled.
The machine comes with the handle and nozzle panel in
the storage/transport position. Unfast the handle lock
nuts and unfold the handle to the upright position then
retighten.
Attach the cable tidy by slotting into the holes on top
of the nozzle panel.

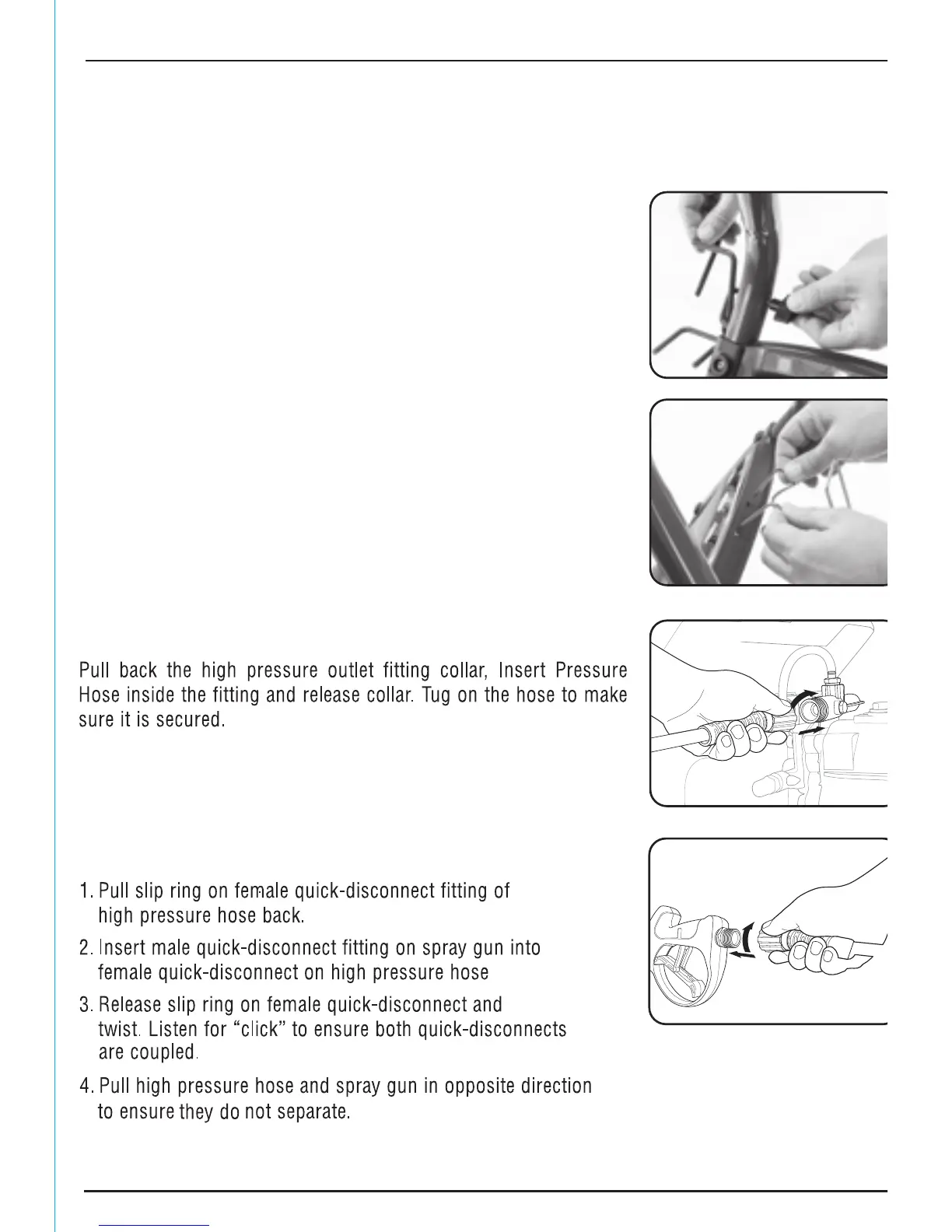

8.1 HOSE AND CABLE TIDY - FIG.1 & 2
8.2 PRESSURE HOSE TO PRESSURE PUMP - FIG.3
FIG.3
FIG.4
8.3 PRESSURE HOSE TO GUN- FIG.4
FIG.2
FIG.1
