Draper PPW650 - 8.6 NOZZLES TO LANCE; 8.7 PRESSURE PUMP TO WATER SUPPLY

8. ASSEMBLING THE PRESSURE WASHER
FIG.9
FIG.10

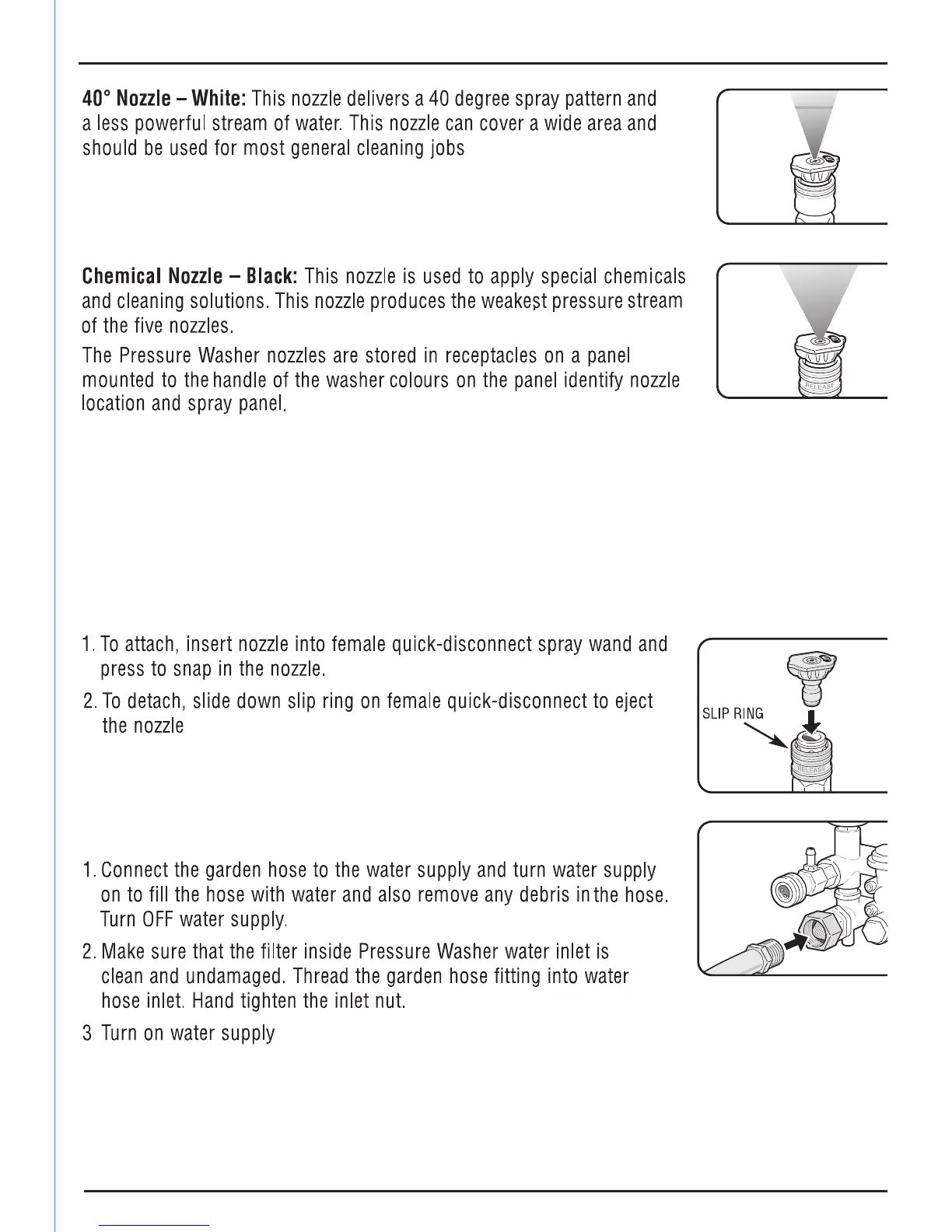

8.6 NOZZLES TO LANCE - FIG.11
8.7 PRESSURE PUMP TO WATER SUPPLY - FIG.12
WARNING: Never place hands in front of nozzle. Never grasp hose or fittings durin
operation. Never attempt to attach or remove spray wand or hose fittings while
pressure washer system is pressurised. Turn off pressure washer and lock the gun
trigger before attempting to change pressure nozzles.
NOTE: The pressure washer requires a minimum of 20psi and a flow rate of 19L/m.
FIG.11
FIG.10
FIG.12
