Vigor2120 Series Quick Start Guide
5

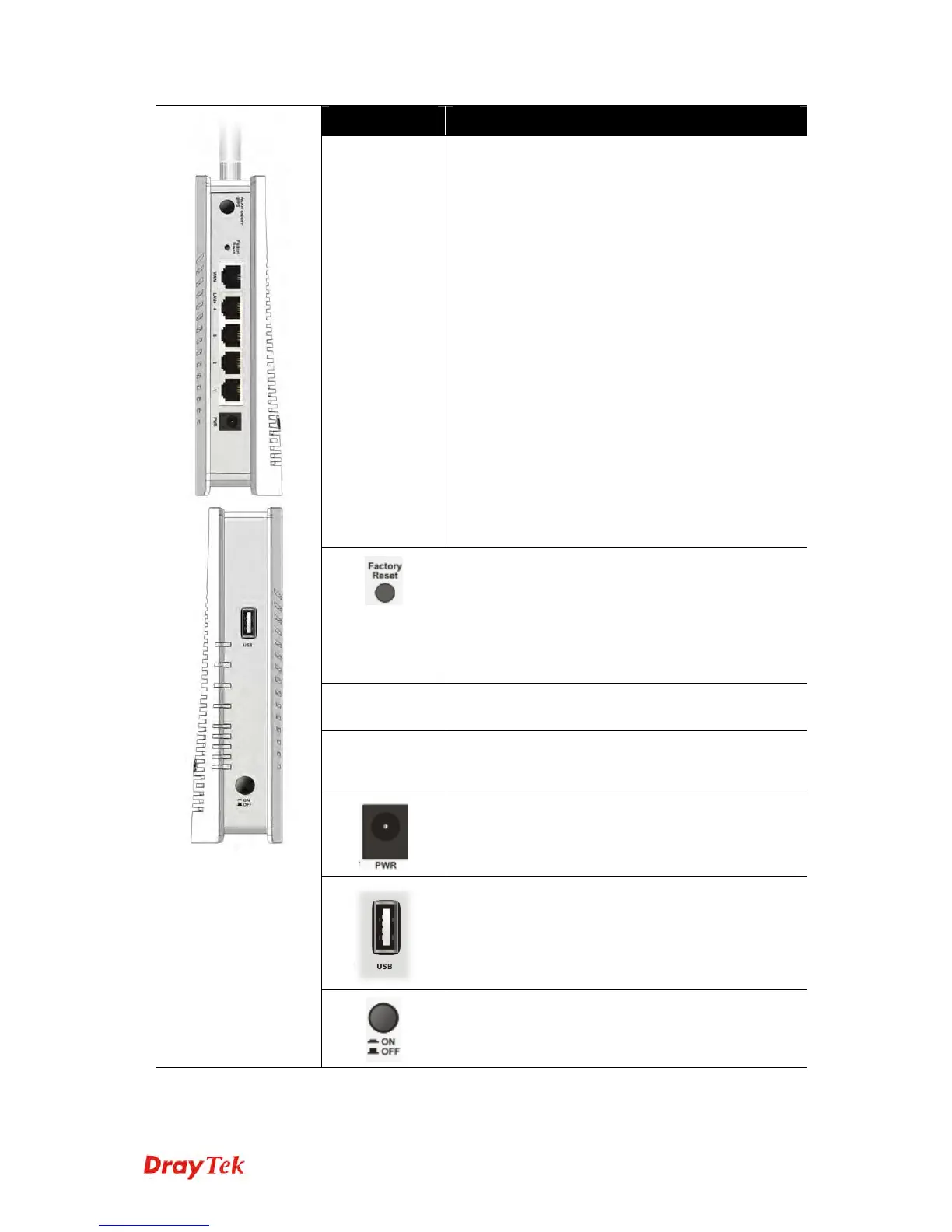

Interface Description
WLAN
ON/OFF
WPS
WLAN On - Press the button and release
it within 2 seconds.
When the wireless function is ready, the
2.4G/5G blue LED on front panel will
be on.
WLAN Off - Press the button and
release it within 2 seconds to turn off the
WLAN function.
When the wireless function is not ready,
2.4G/5G blue LED on front panel will
be off.
WPS - When WPS function is enabled
by web user interface, press this button
for more than 2 seconds.
The router will wait for any wireless
client connecting to it through WPS.
Restore the default settings. Usage: Turn
on the router. Press the button and keep
for more than 6 seconds. Then the router
will restart with the factory default
configuration.
WAN Connector for accessing the Internet.
LAN 1- 4 Connecters for local network devices
(LAN).
PWR: Connecter for a power adapter.
Connecter for a USB device (for 3G
USB Modem or printer or storage disk).
ON/OFF: Power switch.
