Vigor2120 Series Quick Start Guide
7
2
2
.
.
I
I
n
n
s
s
t
t
a
a
l
l
l
l
i
i
n
n
g
g
Y
Y
o
o
u
u
r
r
R
R
o
o
u
u
t
t
e
e
r
r
This section will guide you to install the router through hardware connection
and configure the router’s settings through web browser.
2
2
.
.
1
1
H
H
a
a
r
r
d
d
w
w
a
a
r
r
e
e
I
I
n
n
s
s
t
t
a
a
l
l
l
l
a
a
t
t
i
i
o
o
n
n
Before starting to configure the router, you have to connect your devices
correctly.

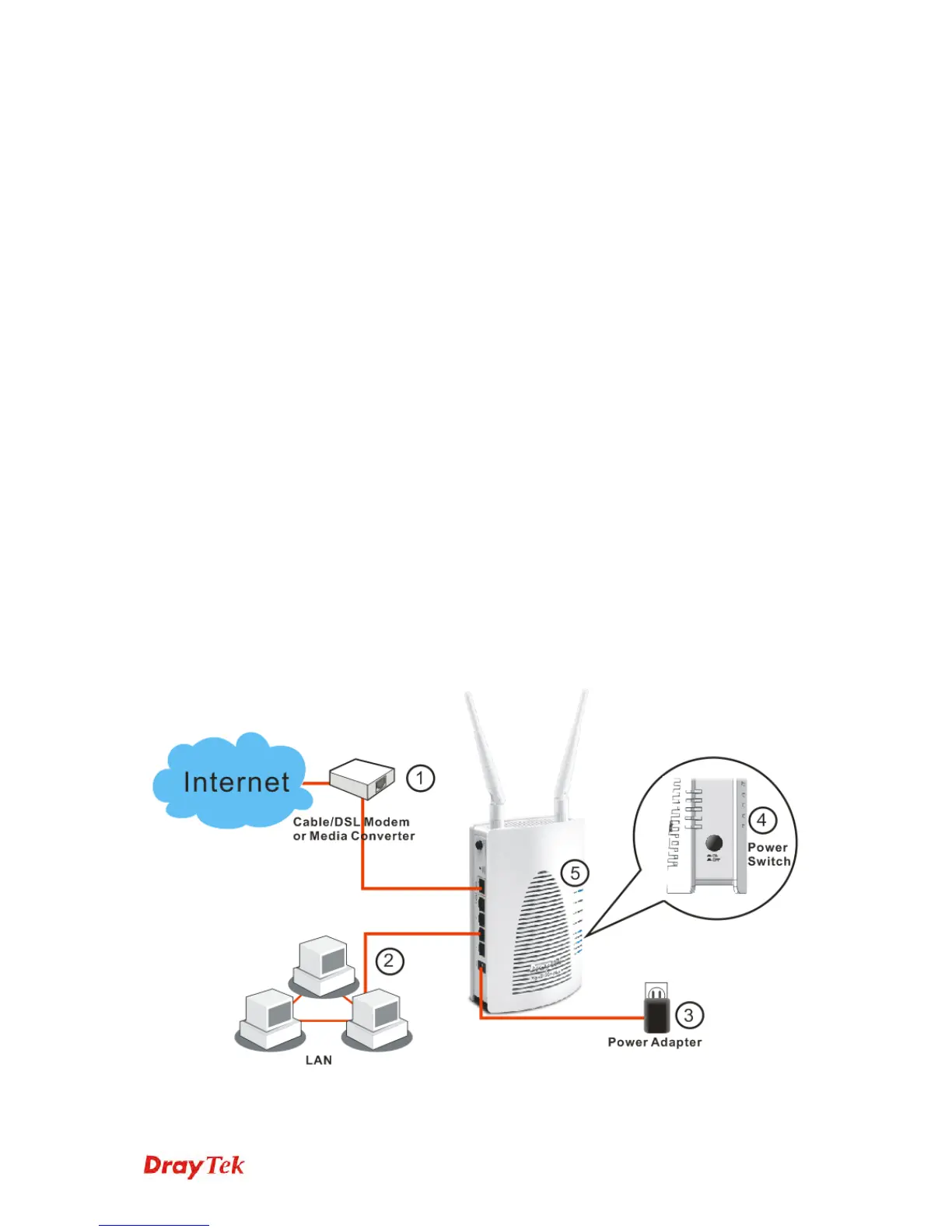

1. Connect the cable Modem/DSL Modem/Media Converter to the WAN
port of this router with Ethernet cable (RJ-45).
2. Connect one end of an Ethernet cable (RJ-45) to one of the LAN ports
of the router and the other end of the cable (RJ-45) into the Ethernet port
on your computer.
3. Connect one end of the power adapter to the router’s power port on the
rear panel, and the other side into a wall outlet.
4. Power on the device by pressing down the power switch on the rear
panel.
5. The system starts to initiate. After completing the system test, the ACT
LED will light up and start blinking.
(For the detailed information of LED status, please refer to section 1.1.)
