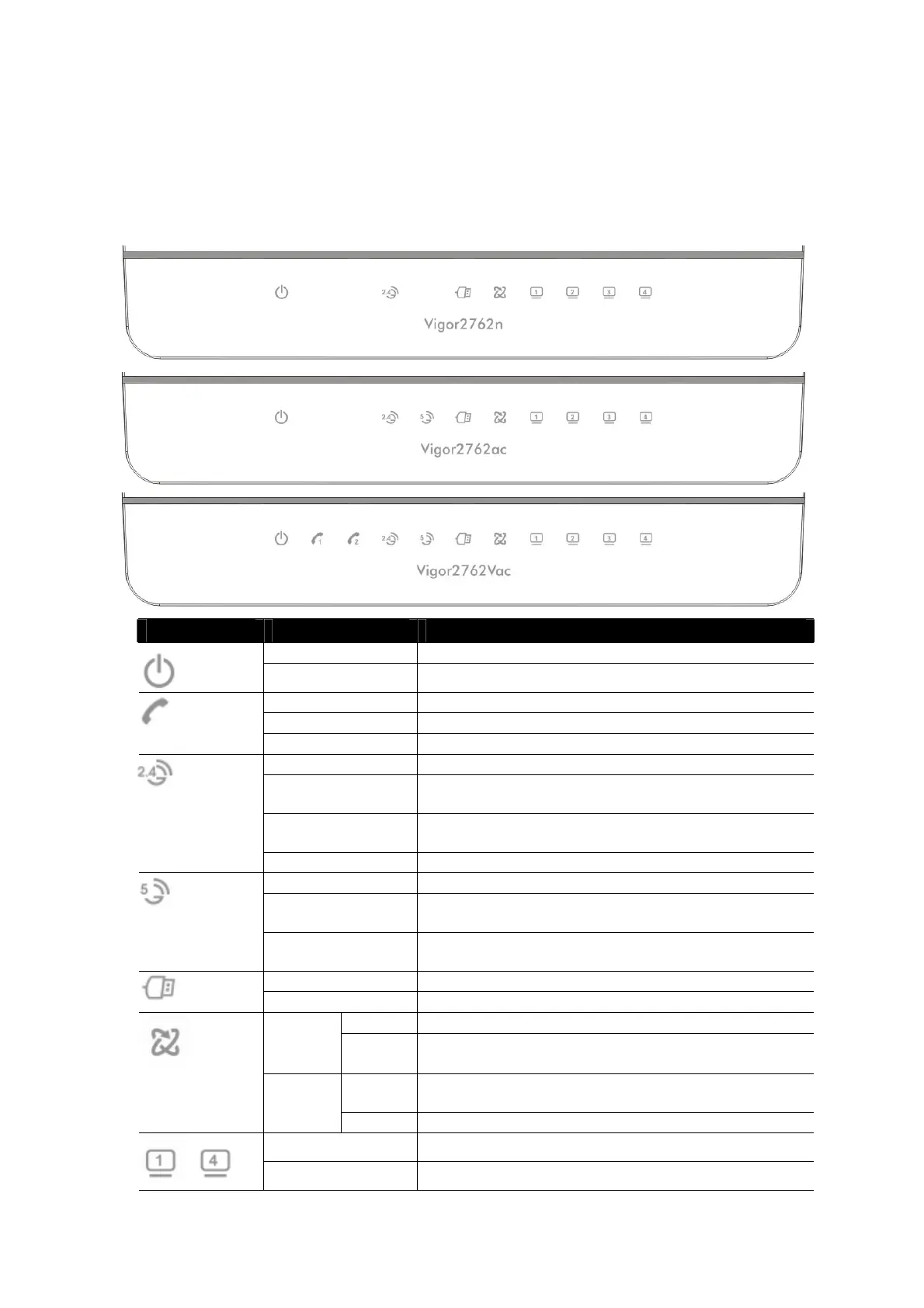

LED Status Explanation
Blinking The router is powered on and running normally.
(Activity)
Off The router is powered off.
On The phone connected to this port is off-hook.
Off The phone connected to this port is on-hook.
(for “V” model)
Blinking A phone call comes.
On (Green) The wireless access point is ready.
Blinking (Green) The data is transmitting via wireless connection based
on the rate of 2.4GHz.
Blinking (Orange) Blinks with one second cycle for two minutes. The WPS
function is active.
(Wireless LAN
On/Off/WPS)
Off The wireless access point is turned off.
On (Green) The wireless access point is ready.
Blinking (Green) The data is transmitting via wireless connection based
on the rate of 5GHz.
(Wireless LAN
On/Off/WPS)
Blinking (Orange) Blinks with one second cycle for two minutes. The WPS
function is active.
On A USB device is connected and active.
(USB)
Blinking The data is transmitting.
On The DSL link up, waiting for the Internet connection.
Orange
Blinking
Slowly - The DSL connection is ready for training.
Quickly - The DSL connection is synchronizing.
On
The router is ready to access to the Internet through
DSL link.
(DSL)
Green
Blinking
The data is transmitting.
On The LAN port is connected.
~
Blinking The data is transmitting.
