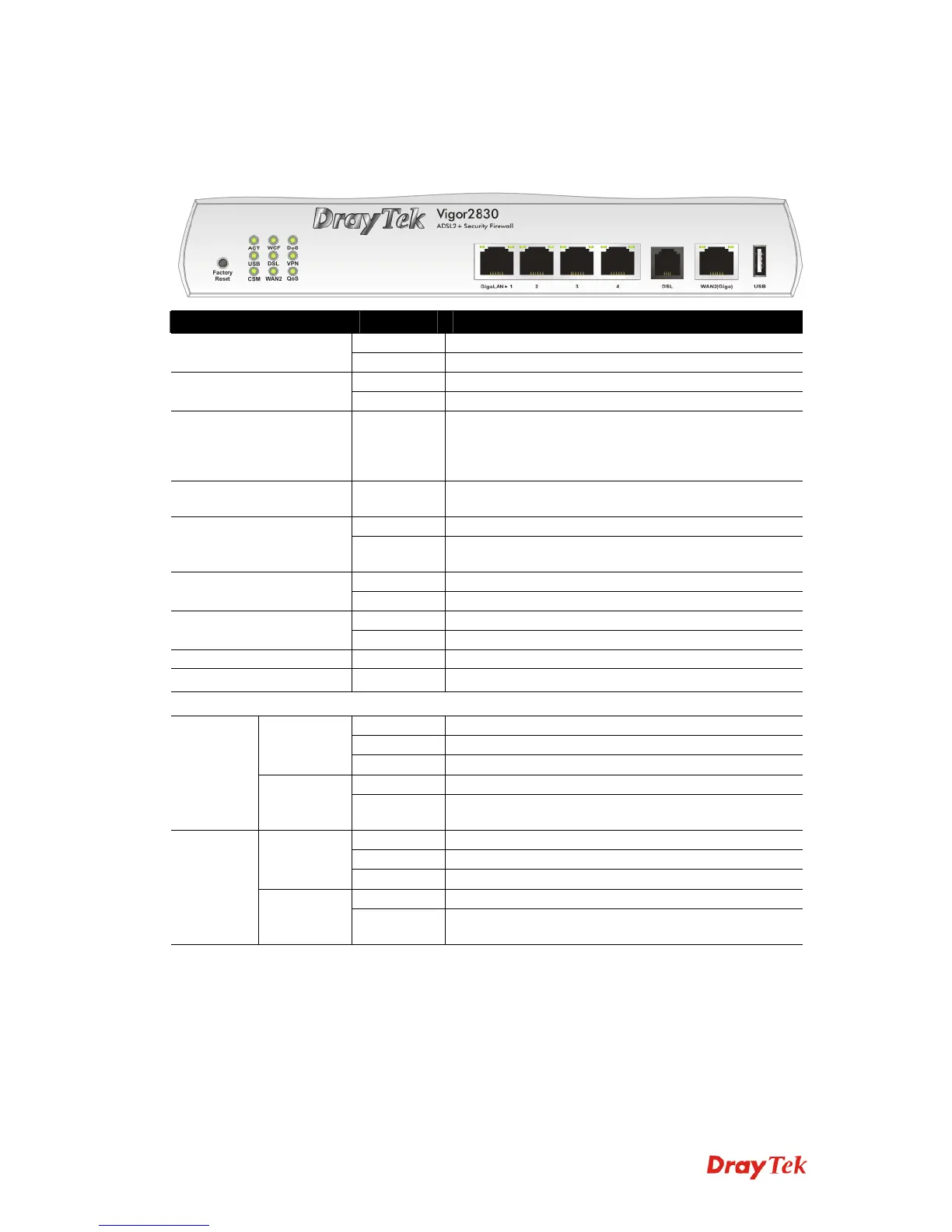

LED Status Explanation
Blinking The router is powered on and running normally. ACT (Activity)
Off The router is powered off.
On USB device is connected and ready for use. USB
Blinking The data is transmitting.
CSM On The profile(s) of CSM (Content Security Management)
for IM/P2P, URL/Web Content Filter application can be
enabled from Firewall >>General Setup. (Such profile
must be established under CSM menu).
WCF On The Web Content Filter is active. (It is enabled from
Firewall >> General Setup).
On The router is ready to access Internet through DSL link. DSL
Blinking Slowly: The DSL connection is ready.
Quickly: The connection is training.
On The WAN2 connection is ready. WAN2
Blinking It will blink while transmitting data.
On The DoS/DDoS function is active. DoS
Blinking It will blink while detecting an attack.
VPN On The VPN tunnel is active.
QoS
On The QoS function is active.
LED on Connector
On The port is connected.
Off The port is disconnected.
Left LED
(Green)
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
GigaLAN
1/2/3/4
Right LED
(Green)
Off The port is disconnected with 10/100Mbps when left
LED is on.
On The port is connected.
Off The port is disconnected.
Left LED
(Green)
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
WAN2
(Giga)
Right LED
(Green)
Off The port is disconnected with 10/100Mbps when left
LED is on.
