Draytek Vigor2830 Series Quick Start Guide

Vigor2830 Series Quick Start Guide
10
1
1
.
.
1
1
.
.
6
6
F
F
o
o
r
r
V
V
i
i
g
g
o
o
r
r
2
2
8
8
3
3
0
0
V
V
S
S
n
n

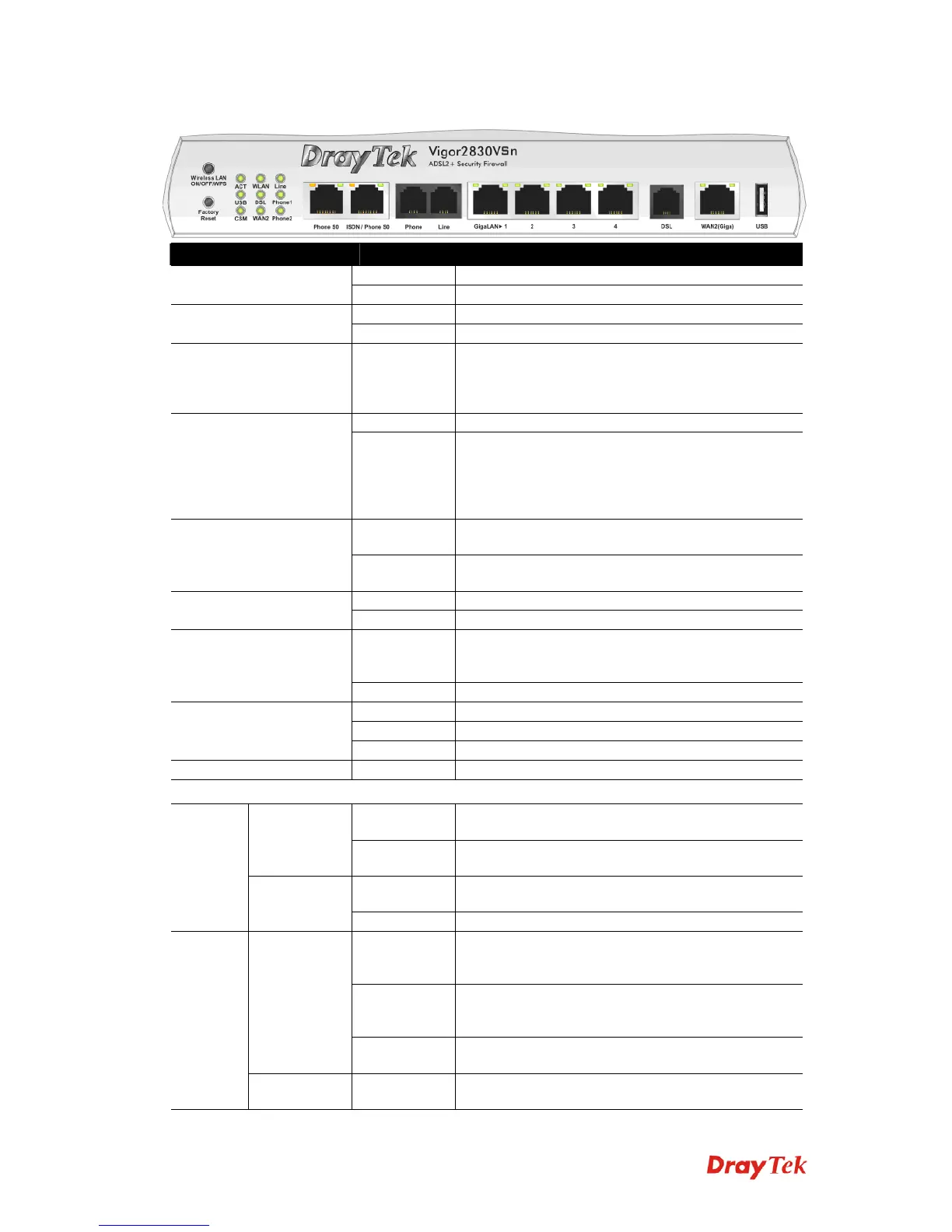

LED Status Explanation
Blinking The router is powered on and running normally. ACT (Activity)
Off The router is powered off.
On A USB device is connected and active. USB
Blinking The data is transmitting.
CSM On The profile of CSM (Content Security Management)
for IM/P2P application is enabled from Firewall >>
General Setup. (Such profile is established under
CSM menu).
On
Wireless access point is ready.
WLAN
Blinking
It will blink while wireless traffic goes through.
If ACT and WLAN LEDs blink simultaneously when
WPS is working, and it will return to normal condition
after two minutes. (You need to setup WPS within 2
minutes.)
On The router is ready to access Internet through DSL
link.
DSL
Blinking Slowly: The modem is ready.
Quickly: The connection is training.
On The WAN1 or WAN2 connection is ready. WAN 2
Blinking It will blink while transmitting data.
On A PSTN phone call comes (in and out). However,
when the phone call is disconnected, the LED will be
off about six seconds later.
Line
Off There is no PSTN phone call.
On The phone connected to this port is off-hook.
Off The phone connected to this port is on-hook.
Phone
Blinking A phone call comes.
QoS On The QoS function is active.
LED on Connector
On ISDN NT (ISDN S0 intern) mode is active and an
ISDN phone adapter is connected.
Left LED
(Orange)
Blinking ISDN NT (ISDN S0 intern) mode is active and an
ISDN phone adapter is not connected.
On A phone has been connected. If not, green LED will be
off.
Phone S0
Right LED
(Green)
Blinking An ISDN phone is off-hook or a phone call comes.
On ISDN NT (ISDN S0 intern) mode is active configured
from VoIP>>Phone Settings and an ISDN phone
adapter is connected.
Blinking ISDN NT (ISDN S0 intern) mode configured from
VoIP>>Phone Settings is active and an ISDN phone
adapter is not connected.
Left LED
(Orange)
Off It means ISDN TE mode is active which is configured
from VoIP>>Phone Settings.
ISDN/Pho
ne S0
Right LED
(Green)
On A phone adapter with phone set has been connected
(ISDN S0 intern mode) or ISDN line has been
