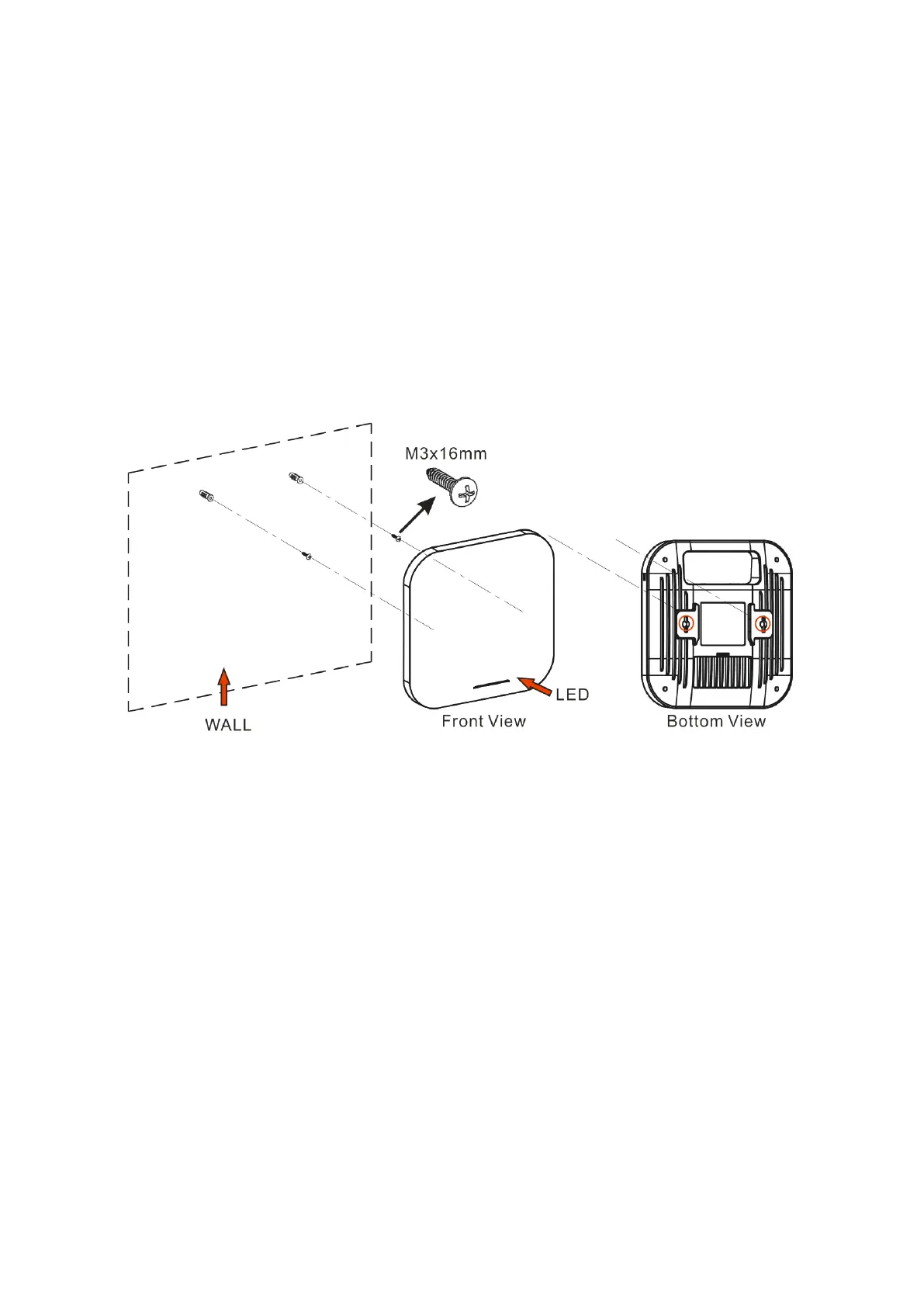

For wall-mounting, the VigorAP has keyhole type mounting slots on the
underside.
1. Use the appropriate drill bit to drill two 8.1mm diagram and 26mm depth
holes in the markings and hammer the bolts into the openings.
2. Screw the anchors unto the holes until they are flush with the wall; screw
the included screws into the anchors.
3. Place the Access Point against wall with the mounting screw heads.
