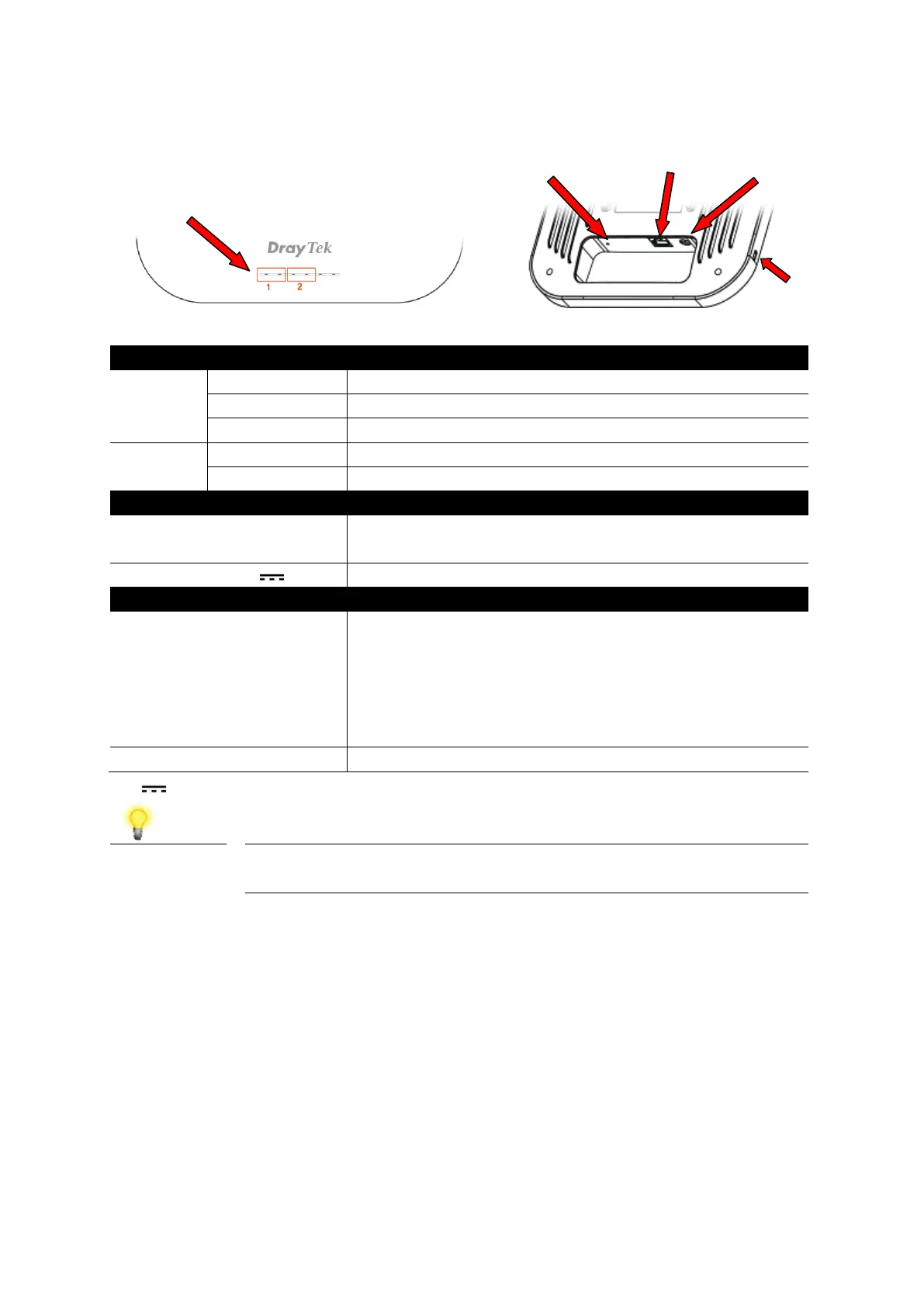

Draytek VigorAP 1060C - 2 Panel Explanation

2
2
2
.
.
P
P
a
a
n
n
e
e
l
l
E
E
x
x
p
p
l
l
a
a
n
n
a
a
t
t
i
i
o
o
n
n
LED
Status
Explanation
1
On (Blue)
The system is in boot-loader mode.
Off
The system is not ready or fails.
Blinking(Blue)
The system is in TFTP mode.
2
Off
The system is not ready or fails.
Blinking(Blue)
The system is ready and can work normally.
Interface
Explanation
Ethernet Port
Connects to LAN or router.
Supports PoE power & Gigabit (2.5Gpbs).
Power Jack(12V 2.5A)
Connecter for a power adapter.
Hole
Explanation
Factory Reset
Restores the unit back to factory default settings.
To use, insert a small item such as an unbent
paperclip into the hole. You will feel the button
inside depress gently. Hold it for 5 seconds.
The VigorAP will restart with the factory default
configuration and the LED will blink blue.
Security Hole
A security hole for installing the anti-theft lock.
Note
For the sake of security, make the accessory kit away from
children.
Factory
Reset
Ethernet Port
Power Jack
(DC IN)
LED
Security
Hole
