VigorAP can be installed under certain locations: wooden ceiling, plasterboard
ceilings, light-weighted steel frame and wall.
3
3
.
.
1
1
C
C
e
e
i
i
l
l
i
i
n
n
g
g
-
-
m
m
o
o
u
u
n
n
t
t
I
I
n
n
s
s
t
t
a
a
l
l
l
l
a
a
t
t
i
i
o
o
n
n
(
(
W
W
o
o
o
o
d
d
e
e
n
n
C
C
e
e
i
i
l
l
i
i
n
n
g
g
)
)
Determine where the Access Point to be placed and mark location on the surface
for the two mounting holes. Use the appropriate drill bit to drill two holes in the
markings and hammer the bolts into the openings.

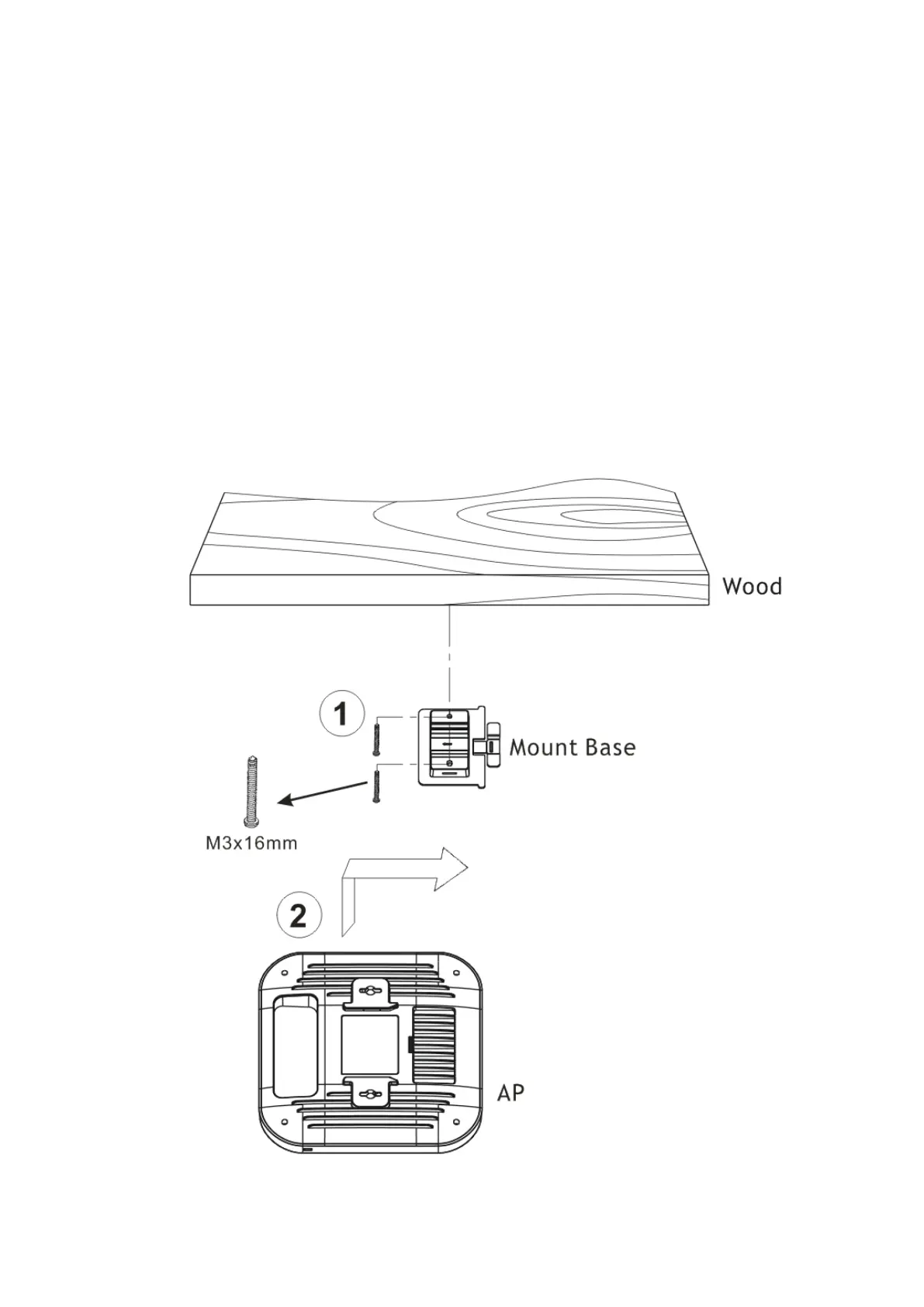

1. Place the mount base under the wooden ceiling and fasten it on the ceiling
with two screws firmly.
2. When the mount base is in place, slide the AP into the slot of the mount
base.
