Dreame RAW6 - Completed Installation

6
EN
Completed Installation
Note: The illustrations in this manual are for reference only. Please refer to the actual installation situation.

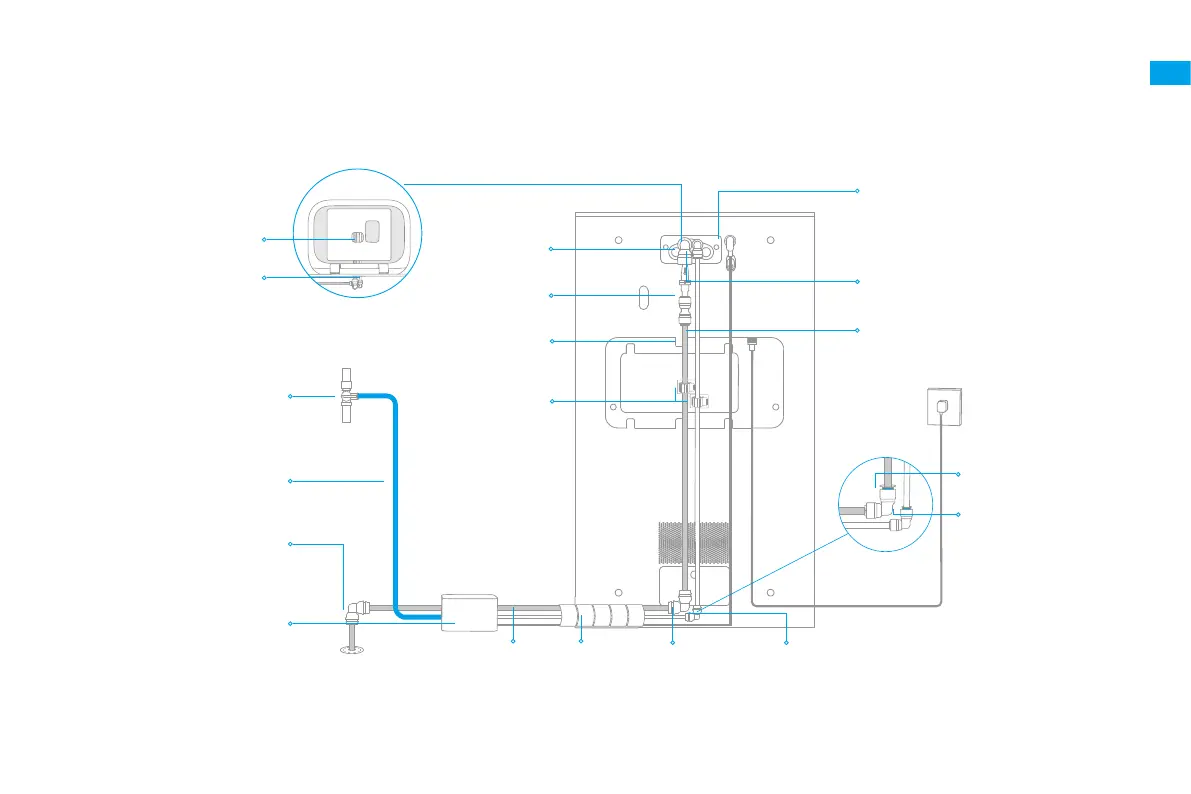

Product Overview
Water Source/
Water Filter
1/4" Blue Clean
Water Pipe
Ⓝ
3/8" Elbow
(thick)
Ⓑ
One-way Valve
Assembly
Ⓕ
3/8" Used
Water Pipe
Ⓛ
Pipe Fixing Clip
Ⓘ
1/4" Elbow (thin)
Ⓒ
1/4" White Clean Water Pipe
Ⓜ
Solenoid Valve Connector
Ⓔ
Controller Assembly
(Solenoid Valve Connector)
Ⓔ
Floor Drain
3/8" Elbow
(thick)
Ⓑ
3/8" Elbow
(thick)
Ⓑ
1/4" Elbow
(thin)
Ⓒ
3/8" Used
Water Pipe
Ⓛ
Spiral Cable
Wrap
Ⓚ
1/4" Connection
Locking Clip (small)
Ⓖ
3/8" Connection Locking
Clip (big)
Ⓗ
3/8" Used Water Pipe
Ⓛ
1/4" White
Clean Water Pipe
Ⓜ
