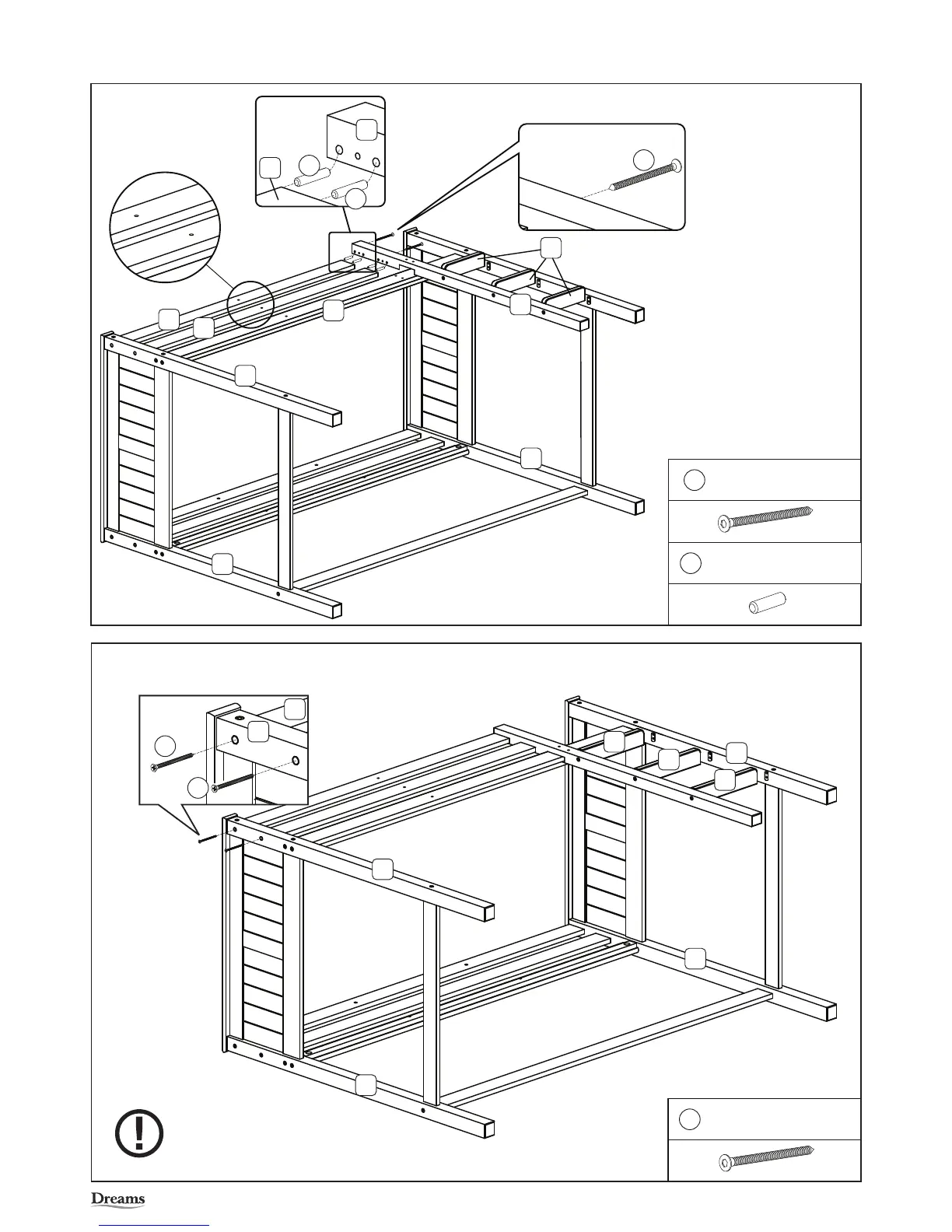

DREAMS Mid Sleeper - Step 9: Securing Intermediate Guardrails; Step 10: Finalizing Guardrail Fitment

Page 7 of 11
Bed Frame Assembly
9
10
x 2
7 x 100mm Screw
C
x 2
Ø7 x 100mm Bolt
C
x 4
Ø10 x 40mm
Wood Dowel
D
C
D
D
Do not tighten
any of the bolts.
C
C
