Drehmo Matic C - Connection on Matic C Display Unit DMC - 30 (LCD Display Unit); Connection on I-Matic Unit DIM - 24 (Accumulator Unit)

DREHMO

Instruction manual for USB adaptor kit page 13 of 20

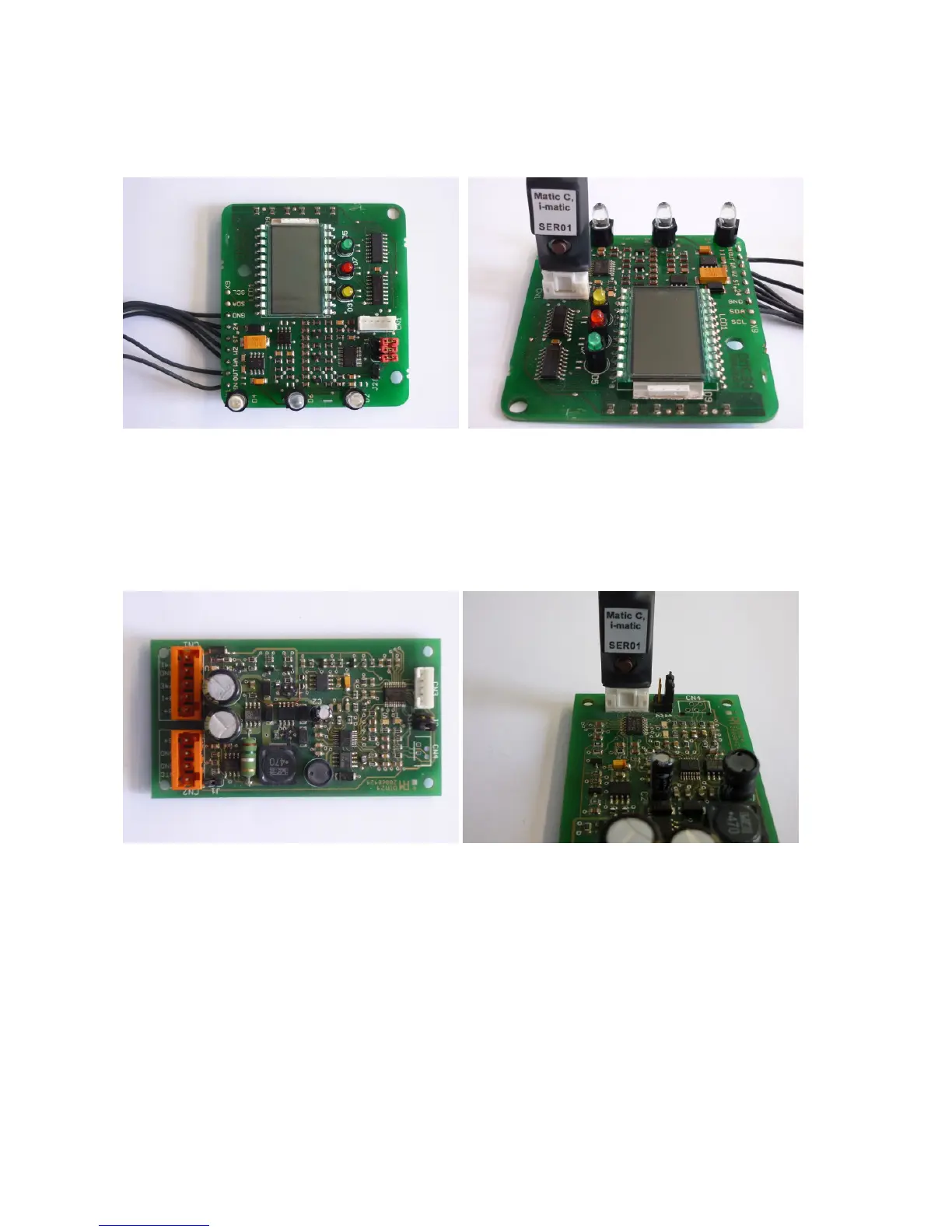

3.1.4 Connection on Matic C display unit DMC - 30 (LCD display unit)
The following pictures show the position of the interface connector for the SER01 adaptor on
the DMC - 30 unit.
3.1.5 Connection on i-matic unit DiM - 24 (accumulator unit)
The following pictures show the position of the interface connector for the SER01 adaptor on
the DiM - 24 unit.
