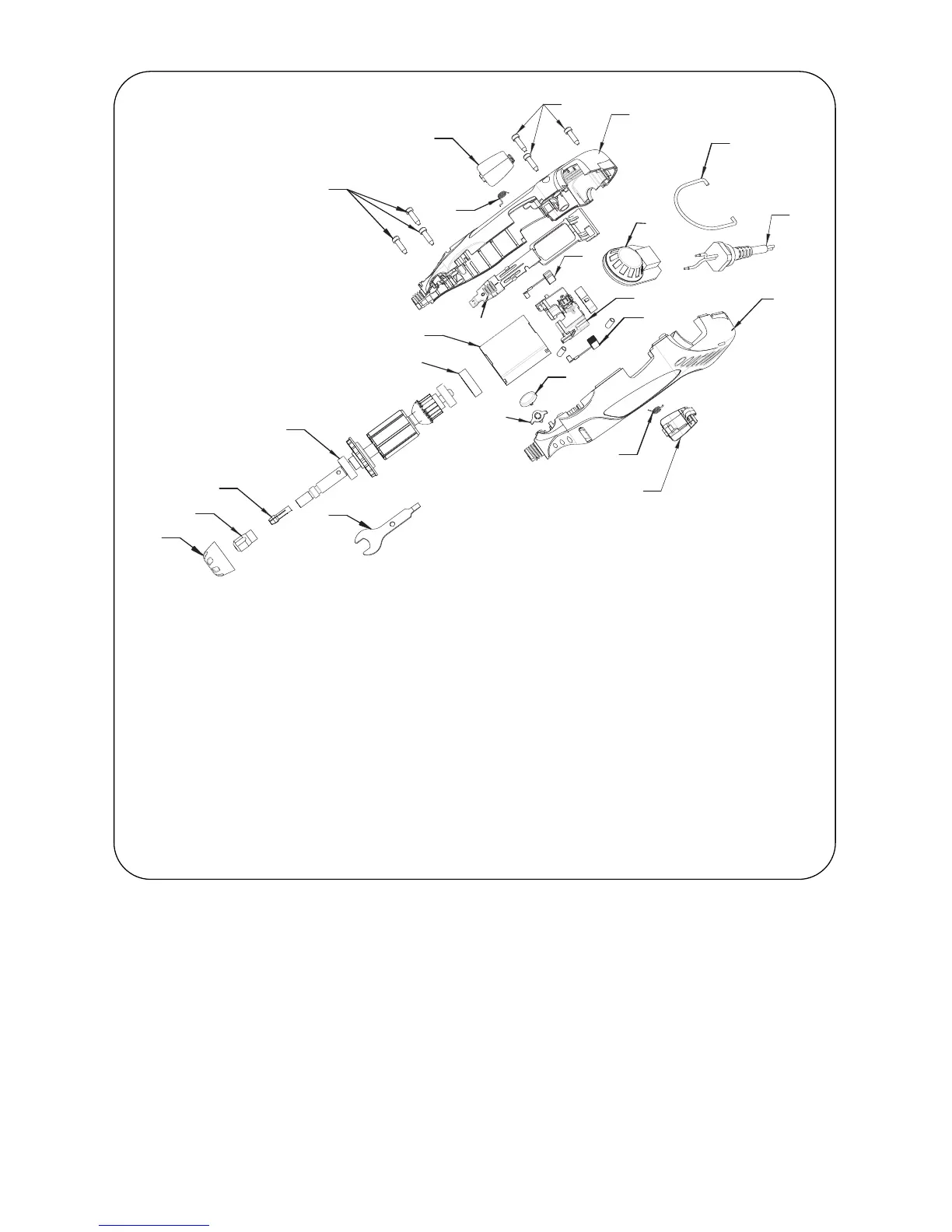

SERVICE PARTS & DIAGRAM
Ref. Part No. Description
1 2610920980 Housing Set
2 2610920701 Field Assembly
3 2610920702 Armature and
Bearing Assembly
4 2615990962 Wrench
5 2615294041 Cord
10 2610920705 Brush Spring (Pair)
16 261920709 Brush Holder
Assembly
17 2610920972 Collet Lock & Spring
Ref. Part No. Description
18 2610922763 Collet Nut
19 2615110480 1/8" Collet (In Tool)
20 2610920710 Switch Assembly
22 2610914379 Rubber Bearing
Sleeve
23 2610920718 Hanger
24 2615294035 Screws (Individual)
25 2610921563 Brush Door (Pair)
27 2610920716 Glamour Cap
28 2640920711 Speed Control
30 2610920717 Housing Cap

Dremel 400 Series XPR Specifications

General

Speed Range	5, 000 - 35, 000 RPM
Voltage	120V
Power Source	Corded Electric
Collet Size	1/8 inch
No Load Speed	5, 000 - 35, 000 RPM
Warranty	2 years
Cord Length	6 ft
Length	9 inches
