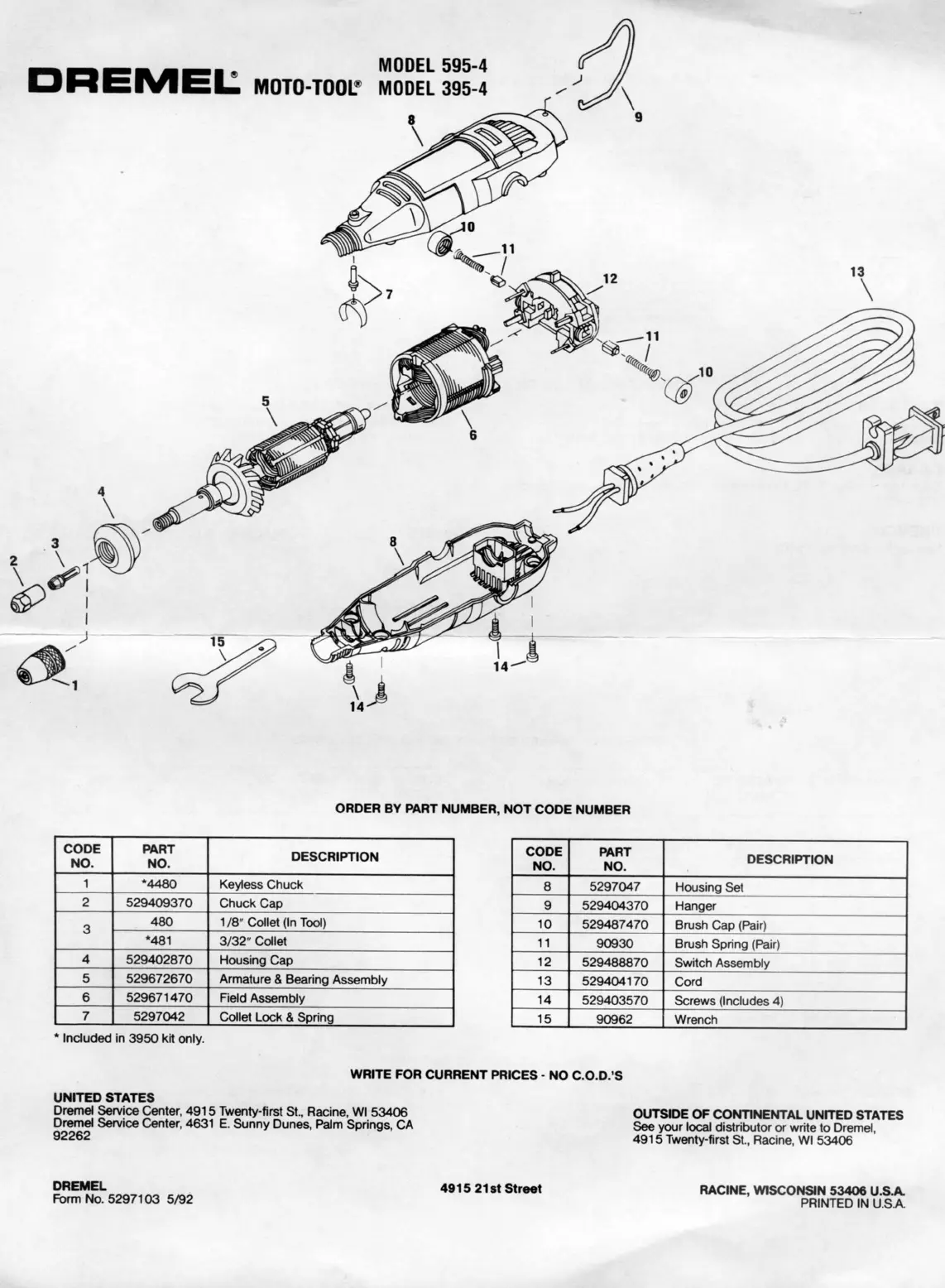

Dremel 595 - Exploded View and Part Numbers; Moto-Tool Parts Identification; Part Number Ordering Information

CODE
PART
DESCRIPTION
NO. NO.
1
*4480
Keyless Chuck
2
529409370
Chuck Cap
3
480
1/8" Collet (In Tool)
*481 3/32" Collet
4
529402870 Housing Cap
5
529672670
Armature & Bearing Assembly
6 529671470
Field Assembly
7 5297042
Collet Lock &Sprina
CODE
PART
DESCRIPTION
NO. NO.
8
5297047 Housing Set
9 529404370
Hanger
10 529487470
Brush Cap (Pair)
11
90930 Brush Spring (Pair)
12 529488870
Switch Assembly
13 529404170
Cord
14 529403570
Screws (Includes 4)
15
90962 Wrench
MODEL 595-4
DREMEL:. MOTO-TOOLe MODEL 395-4
/rJ
9
~
~~
~~i'
'2
I
~'~
~
~""
7
~
j'
_"
~
.
~
..-'..-
~-..J.
,.
rrtJY>('
~I
4
\
\
~1~'
6)0":
I
~/
"""""1
~
13
\
ORDER BY PART NUMBER, NOT CODE NUMBER
*
Included in 3950 kit only.
WRITE FOR CURRENT PRICES. NO C.O.D.'S
UNITED STATES
Dremel Service Center, 4915 Twenty-first St., Racine, WI 53406
Dremel Service Center, 4631 E. Sunny Dunes, Palm Springs, CA
92262
DREMEL
Form No. 5297103 5192
OUTSIDE OF CONTINENTAL UNITED STATES
See your local distributor or write to Dramel,
4915 Twenty-first St, Racine, WI 53406
4915 21st Street
RACINE, WISCONSIN 53406 U.s.A.
PRINTED IN U.SA
