8B2>==42C 10CC4AH ?02:
5A><C>>;145>A4<0:8=60=H
0BB4<1;H 039DBC<4=CB >A 270=68=6
0224BB>A84B. Such preventive safety measures
reduce the risk of starting the tool accidentally.
>A 0;; F>A: >A F74=
270=68=6 0224BB>A84B
0;F0HB F40A ?A>C42C8E4 6;>E4B. Such
preventive safety measures reduce the risk of
injury from sharp edges of the accessories.
Application tools can become very hot while
working. Danger of burns!
#()!!##'"$+#
(($'(
Dremel cutting, scraper blades have a Quick-
Fit slot which allows for faster accessory
removal compared with other conventional
oscillating tool systems.

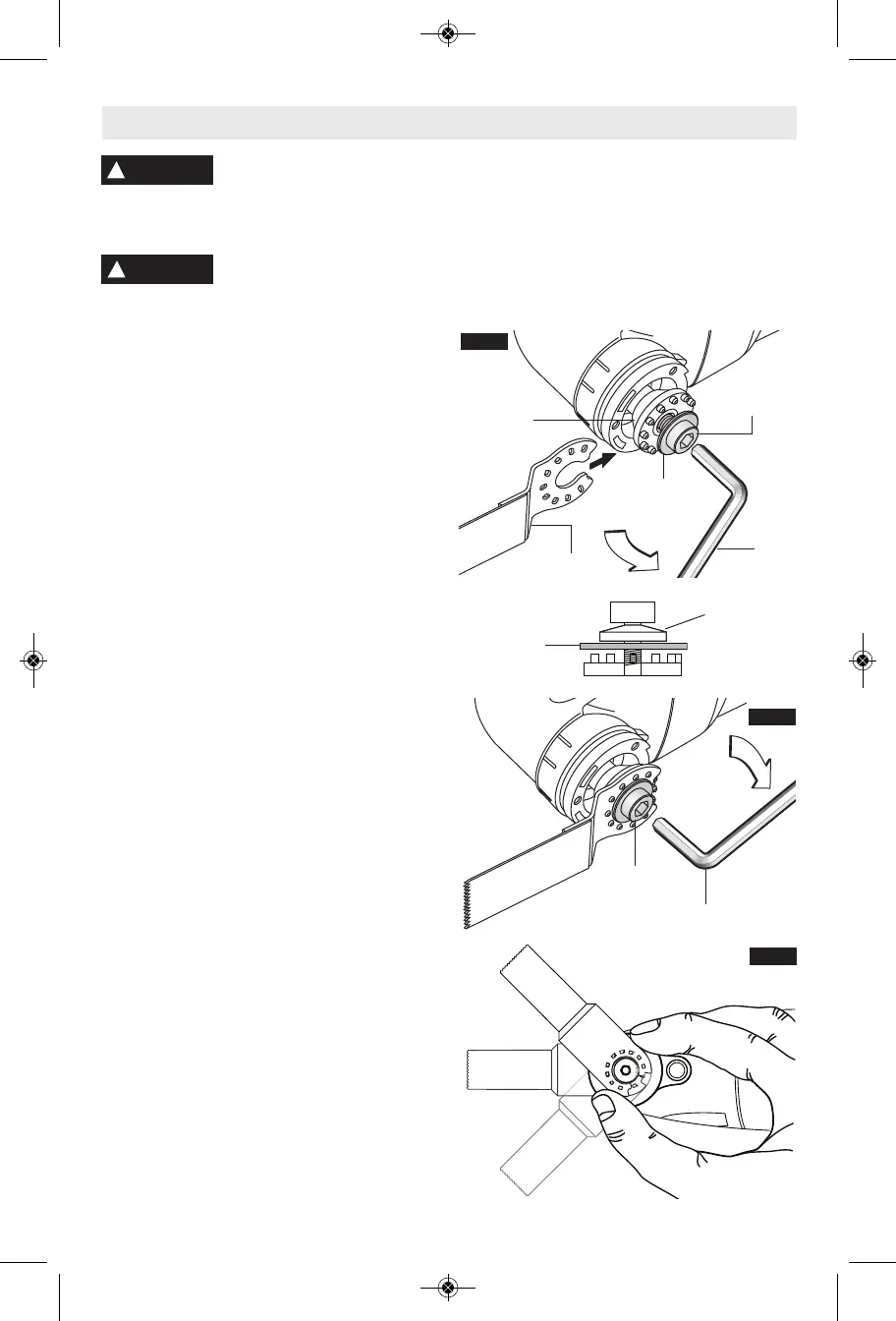

1. Loosen the clamping screw using the hex
key provided just enough so you can slide
the accessory between the accessory
holder and the blade washer (Fig. 2).
2. Clean accessory holder, accessory and the
clamping screw with a clean cloth.
3. Place the accessory onto the accessory
holder making sure the accessory engages
all pins in the holder and the accessory is
flush aganist the accessory holder.
4. Securely tighten the clamping screw with
the hex provided (Fig. 3).
#$) Some accessories, such as scrapers
or blades, may be mounted either straight on
the tool, or at an angle to enhance usability
(Fig. 4).
#()!!##'"$+#
(##()(
Your backing pad uses hook-and-loop backed
accessories, which firmly grip the backing pad
when applied with moderate pressure.
1. Align the sanding sheet and press it onto
the sanding plate by hand.
2. Firmly press the power tool with the
sanding sheet against a flat surface and
briefly switch the power tool on. This will
promote good adhesion and helps to
prevent premature wear.
3. To change, merely peel off the old sanding
sheet, remove dust from the backing pad if
necessary, and press the new sanding
sheet in place.
After considerable service the backing pad
surface will become worn, and the backing pad
must be replaced when it no longer offers a
firm grip. If you are experiencing premature
wear out of the backing pad facing, decrease
the amount of pressure you are applying
during operation of the tool.
For maximum use of abrasive, rotate pad 120
degrees when tip of abrasive becomes worn.
BB4<1;H
!
WARNING
!
WARNING
FIG. 4
BLADE
WASHER
CLAMPING
SCREW
FIG. 2
FIG. 3
ACCESSORY
ACCESSORY
HOLDER
HEX
KEY
HEX KEY
CLAMPING
SCREW
WASHER WITH
BEVEL UP
ACCESSORY
