Dremel DigiLab 3D45 User Manual

3. Removing the Extruder Motor.

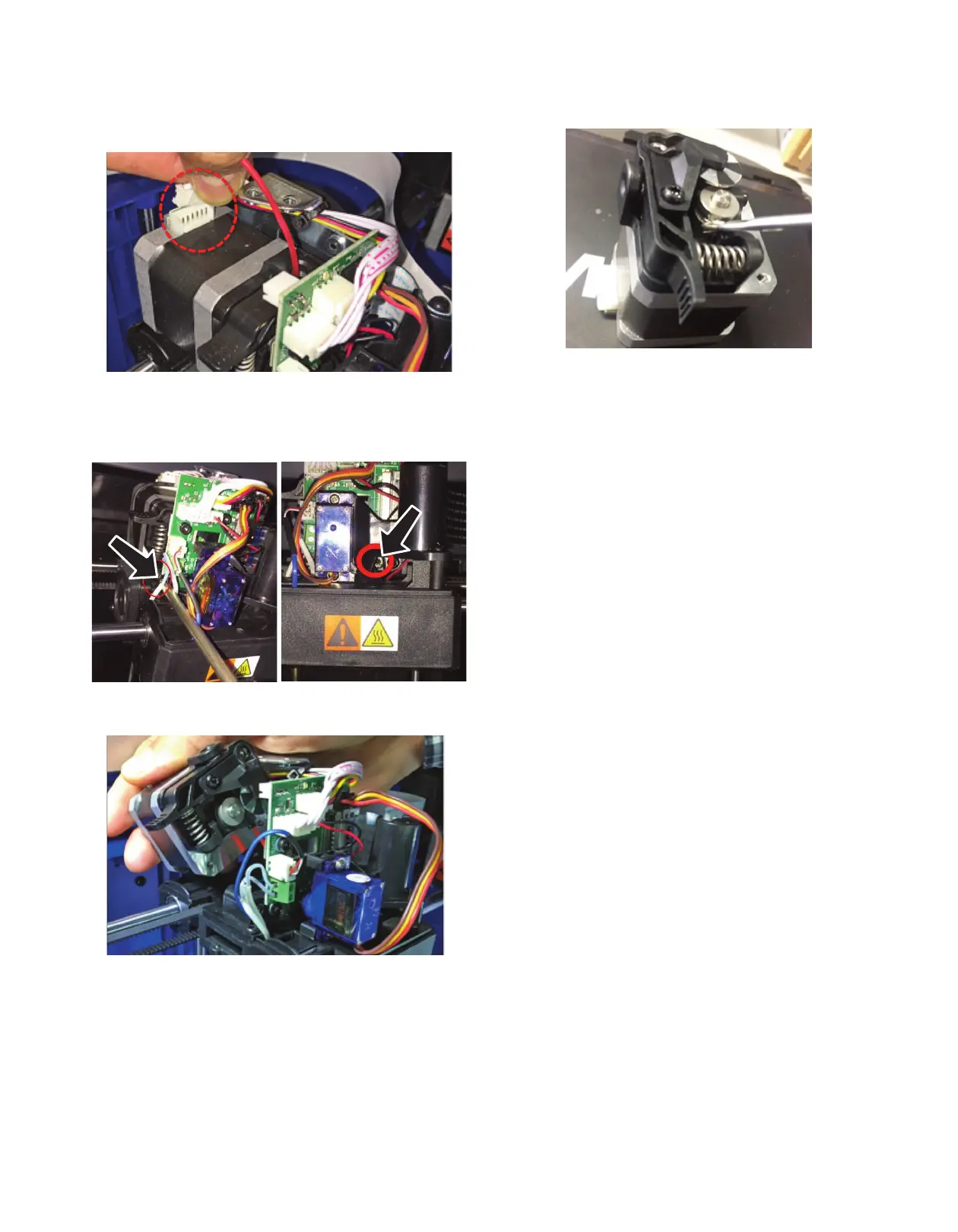

a. Disconnect the white extruder terminal block from the
e
xtruder connector as shown in the picture below.
Ensure to grab the block and avoid pinching the wires.
b. Unscrew the two motor screws below using the Torx
screwdriver, as shown in the picture below. Please
ensure that the screws once fully unscrewed, should
still be left inserted in the extruder chassis hole.
c. Pull the extruder motor assembly away from the printer
(vertically) as shown in the picture below.
4. Cleaning the stepper gear. There might be filament residue
in your stepper motor gear, use your brush to clean the
gear of the stepper motor.
5. Replace Extruder Motor.
a. Place the extruder motor on the chassis. Extruder motor
screw holes should line up with holes in the chassis.
b. Tighten the two hex screws with 2.5mm Hex wrench.
Refer picture under Step 3b.
c. Plug in the white terminal block on the extruder connec-
tor as shown in picture under Step 3a (encircled).
6. Replace Top Cover.
a. Attach the filament runout switch wires of the cover to
the extruder circuit board. Refer picture under Step 2d.
b. Place the new top cover over the extruder.
c. Replace the two 2mm screws onto the cover. Refer
picture under Step 2c.
7. Test the Machine.
a. Plug in and turn on the 3D45.
b. Navigate to “Filament” and follow the on screen instruc-
tions to load filament.
c. Build a file on the machine to ensure the 3D45 printer
is working correctly.
Congratulations!
You are now ready to build. Build On.
2610038113 05/2018
