Dremel MS20 - Functional Description and Specifications

8
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories. Such preventive safety
measures reduce the risk of starting the tool accidentally.
!
WARNING

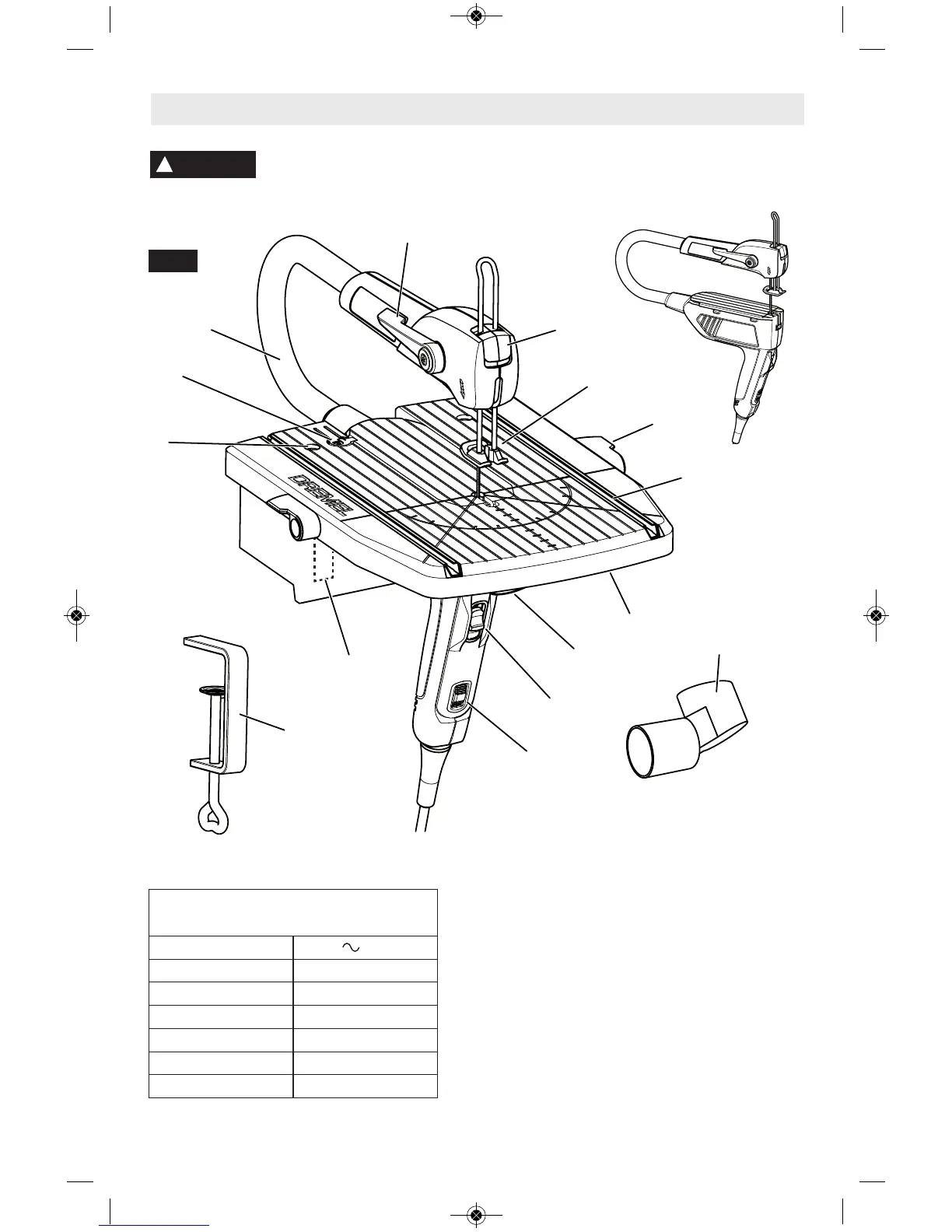

Functional Description and Specifications
A. Hold-Down Foot Release Button
B. Hold-Down Foot
C. Fence Lock Lever
D. Guide Rail
E. Base
F. Vacuum-Cleaner Connection
G. On/Off Switch
H. Speed Dial Switch
I. Securing Clamps
J. Clamp Slot
K. Permanent Fixing Hole
L. Quick Release Button
M. Moto-Saw
N. Accessory Quick Change Lever
O. Vacuum Dust Adapter
A
B
C
E
F
G
I
H
N
L
K
M
D
J
O
FIG. 1
Dremel Moto-Saw 2-in-1
Compact Scroll Saw MS20
Voltage Rating 120V 60Hz
Amps 0.6A
No load speed 1500 - 2250
Throat Depth 9.84 inches
Stroke Length .31 inches
Weight 2.4 pounds
Blade Length 3.8 inches
