EXTRACTOR MOUNTING:
MODEL WITH GLASS:
• To install on the wall every 100 mm, drill 3 holes whose diameter is 8 mm in
a suitable place according to the hook of the extractor.
• Insert screw plugs into the holes.

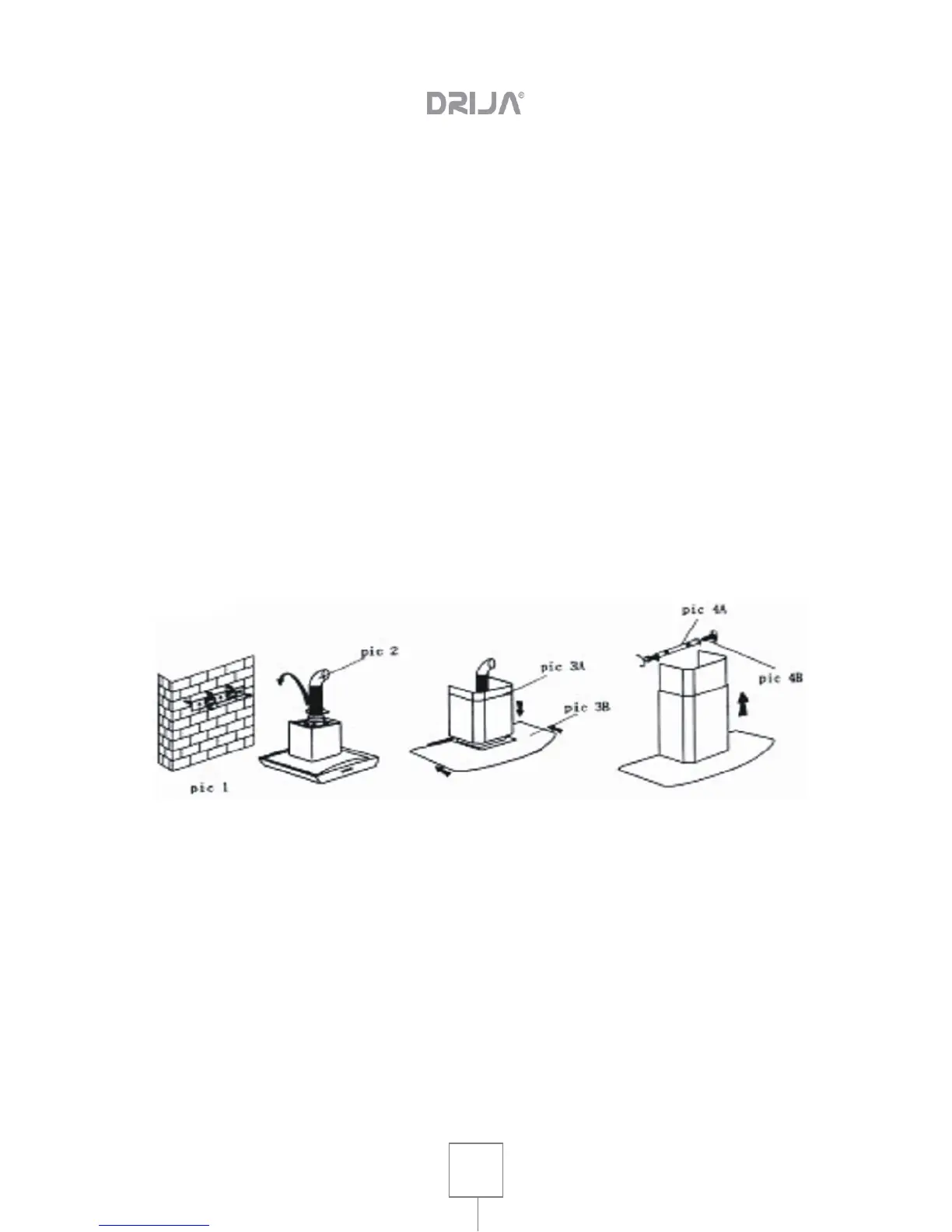

• Fix the hook to the wall, place drill template on the hook. See fig.1
• Add the soot tube to the valve, and place it outdoors. See fig.2.
• Place two chimneys in the extractor. See pic.3A
• Place the glass in the correct direction. Use screws to fix the glass, when
installing the screws please do not tighten tightly to avoid cracking of the
glass. See pic.3B
• Drill 2 holes of 8 mm in a suitable place according to the second plate (see
fig.4A), place two screws in the direction of the plate (see fig.4A), then
remove the internal chimney at a suitable height. Put the inner chimney on
the second plate and tighten the two screws (see pic.4B)
MODEL WITHOUT GLASS:
To install on the wall every 100 mm, drill 3 holes whose diameter is 8 mm in a
suitable place according to the hook of the extractor.
• Insert screw plugs into the holes.
• Fix the hook to the wall, place drill template on the hook. See pic.2
• Add the soot tube to the valve, and place it outdoors. See pic.3
• Calculate the final height of the chimney, put the first plate and two screws
(loosen but do not fix) on the back of the two screws (see pic.4A). Remove
