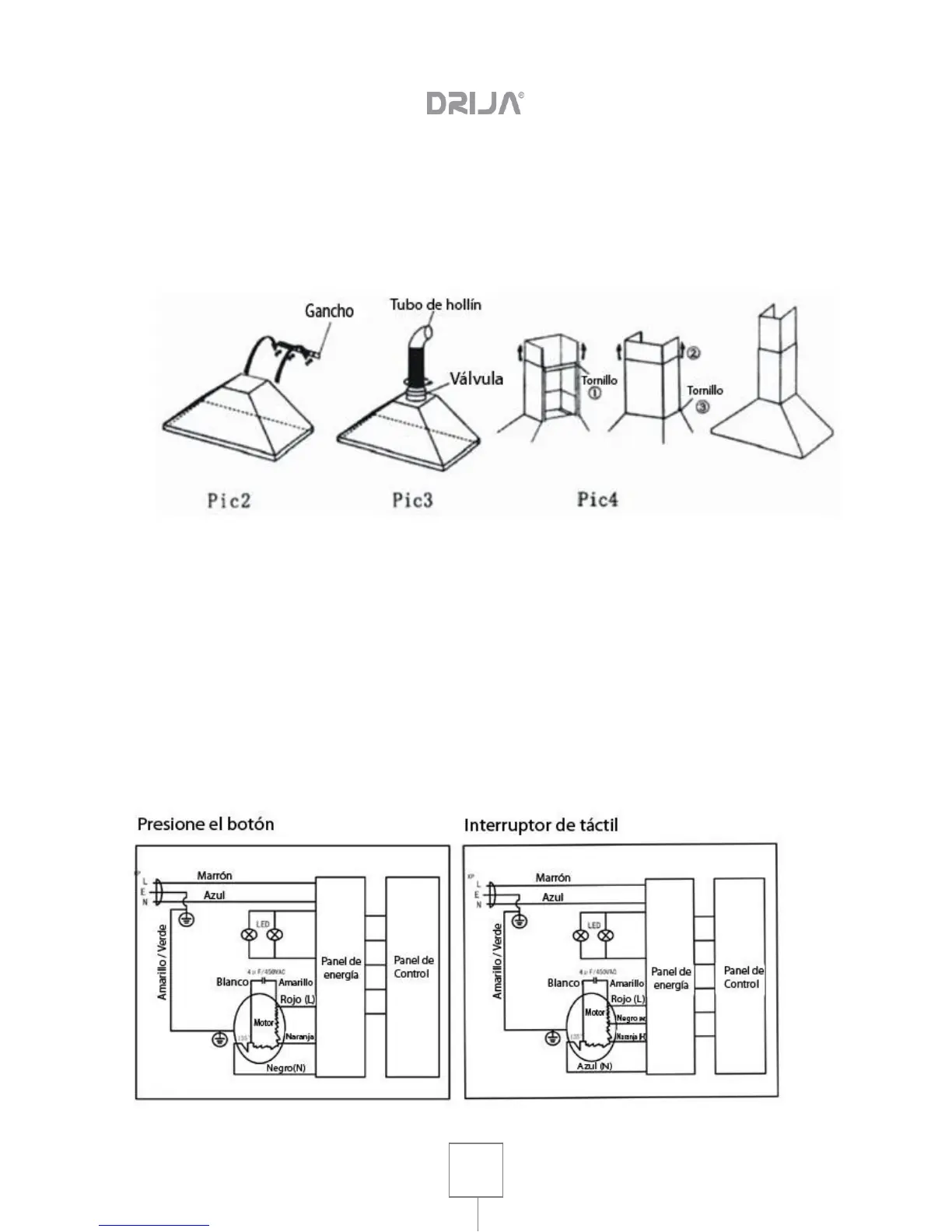

the internal chimney at a suitable height and tighten the two screws (see
pic.4B). Fix the entire chimney to the extractor (see pic.4C). Finally, drill 2 8
mm holes in a suitable place according to the second plate. Repeat 3.3. Put
the inner chimney on the second plate and tighten the two screws (see
pic.4A).
ELECTRIC CONNECTION:
This appliance is supplied with a H05V VF power cable with 3 cores of 0.75m2 (2
phases + ground) and must be connected to 110V single-phase mains using a plug
and switch complying with CEI83 standard, which must be easily accessible Once
it is mounted or a bipolar double isolator switch with contact opening of at least 3
mm. This double bipolar isolator will also be required if the outlet is not accessible.
We will not be responsible for accidents resulting from incorrect or non-existent
ground events. Your fuse should be 10 or 16 amps.
6. CIRCUIT DIAGRAM
