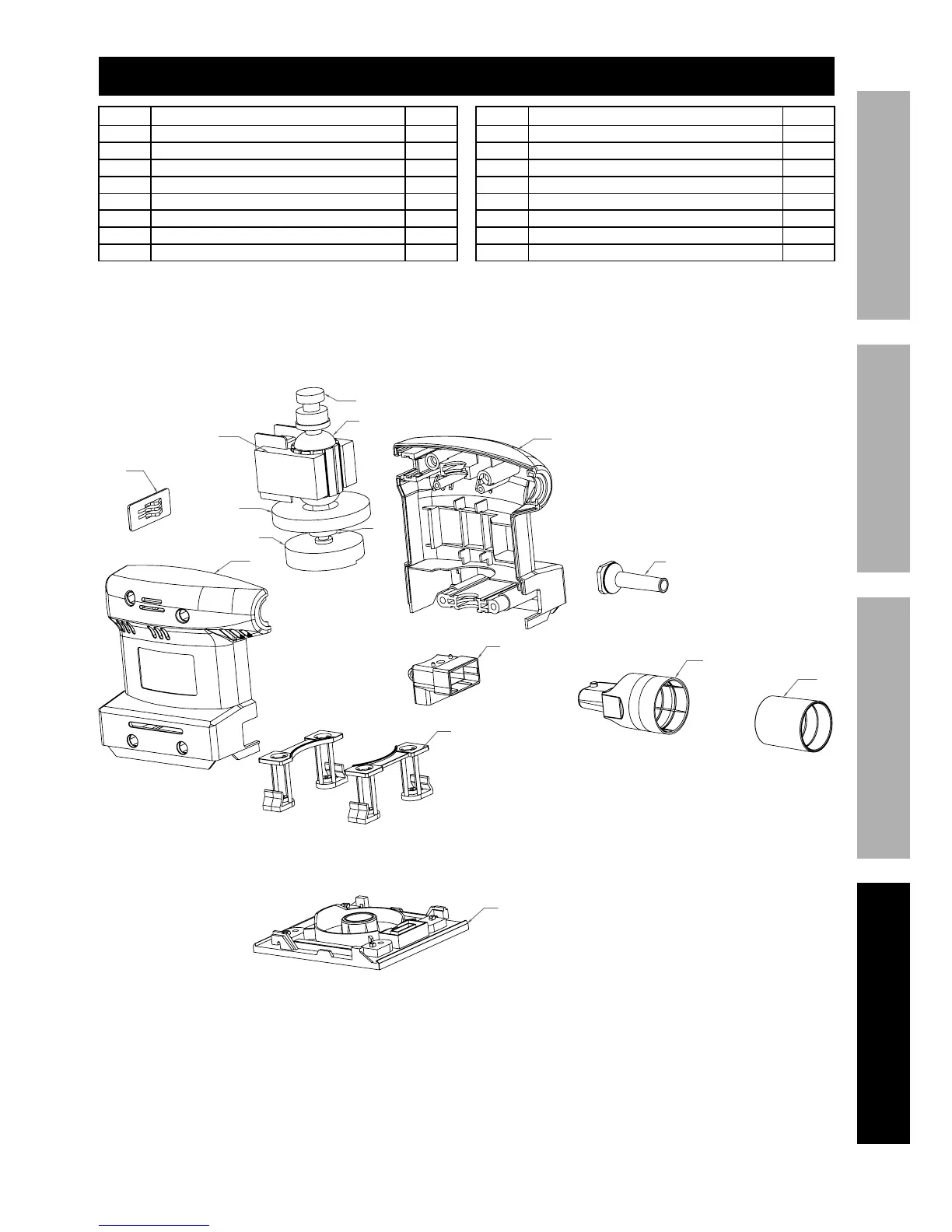

Drill Master 61311 - Parts List and Diagram

Page 11;&(%$*4.8"4,7%<'*#$"&8#=%/7*,#*%4,77%>?@@@?@AA?BCDC1Item 61311
EF;6GHIJ6KFGLIMNFLMG6MFMO6 E6GPJ
J,($#%T"#$%,89%U",3(,5
J,($ U*#4("/$"&8 l$V
1 Right Housing 1
2 Left Housing 2
3 Bearing 1
4 Stator 1
5 Fan 1
6 Bearing 607 1
7 Aluminum Fan 1
8 Oscillating Bracket 2
J,($ U*#4("/$"&8 l$V
9 Backing Pad 1
10 Cord Sleeve 1
11 Dust Port 1
12 Dust Chute 1
13 Dust Connector 1
14 Switch 1
15 Rotor 1
16 Power Cord (not shown) 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
