Page 13For technical questions, please call 1-888-866-5797.Item 69652
Part Description Qty
1 Lampshade 1
2 Lens 1
3 Reflector 1
4 PCB 1
5 Center Spring 1
6 Hinge Pin 2
7 Spring Bracket 2
8 Hinge Spring 2
9 Left Handle 1
10 Left Lamp Housing 1
Part Description Qty
11 Switch 1
12 Terminal 1
13 Terminal Spring 2
14 Wire 5
15 Battery Pack 1
16 Right Handle 1
17 Screw 9
18 Right Lamp Housing 1
19 Trigger Spring 1
20 Trigger 1

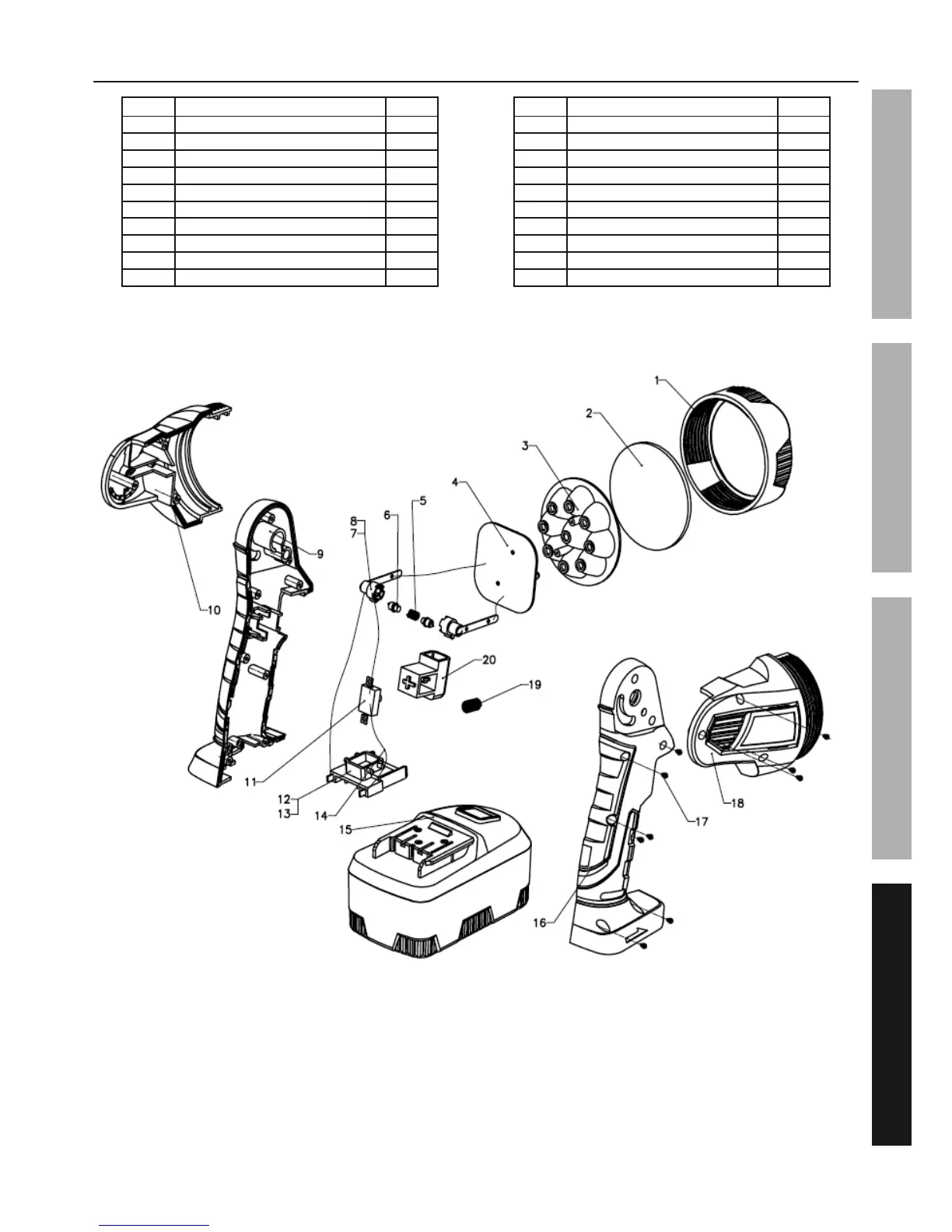

Flashlight Parts List and Diagram
