Page 12 For technical questions, please call 1-888-866-5797. Item 69652
Parts List and Diagram

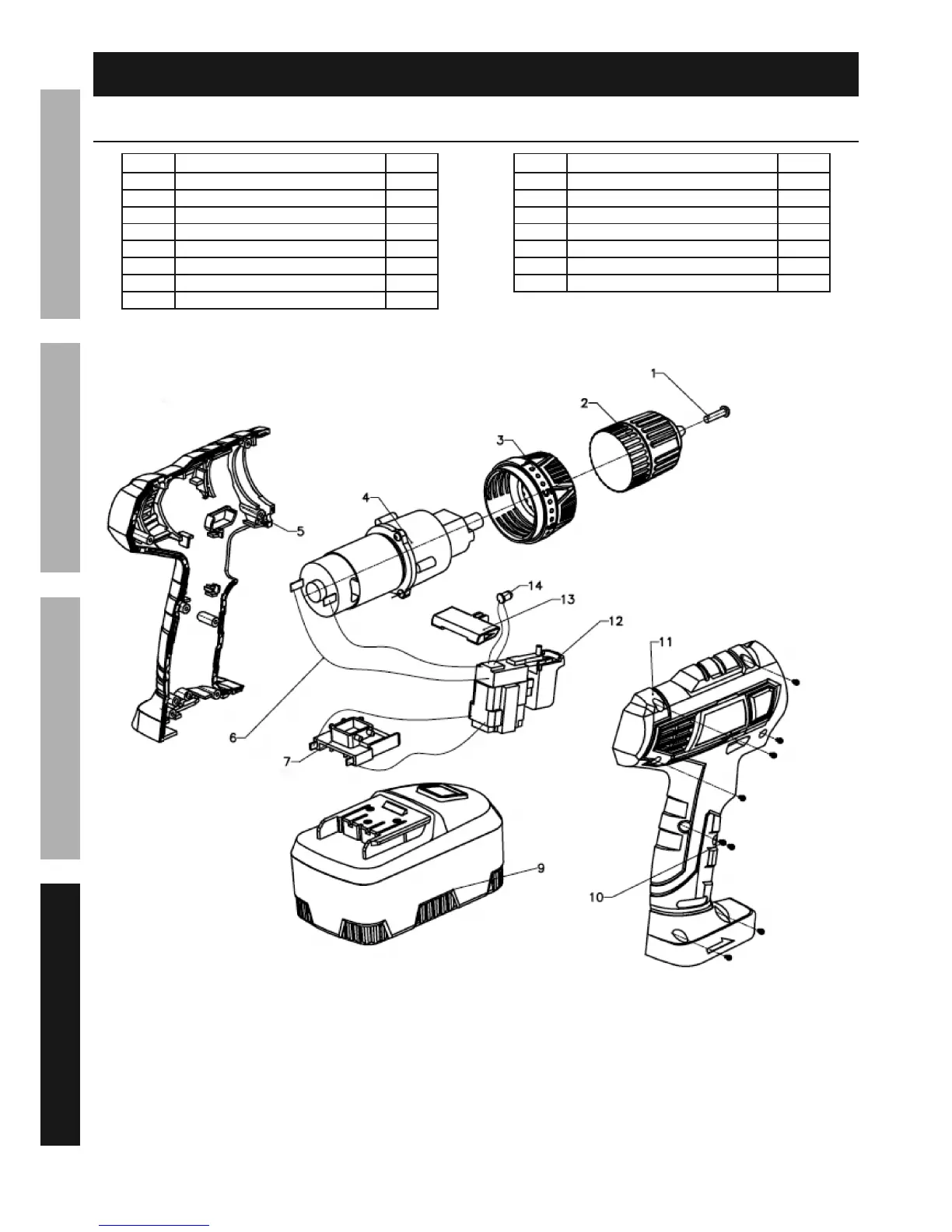

Drill Parts List and Diagram
Part Description Qty
1 Screw 1
2 Chuck 1
3 Torque Ring 1
4 Gear Case (With Motor) 1
5 Left Housing 1
6 Wire 6
7 Terminal 1
9 Battery Pack 1
Part Description Qty
10 Screw 8
11 Right Housing 1
12 Trigger 1
13 Direction Switch 1
14 LED Light 1
15 Charger (not shown) 1
16 Power Adapter (not shown) 1
SAFETY OPERATION MAINTENANCESETUP
